AOK-PLB100
AOK

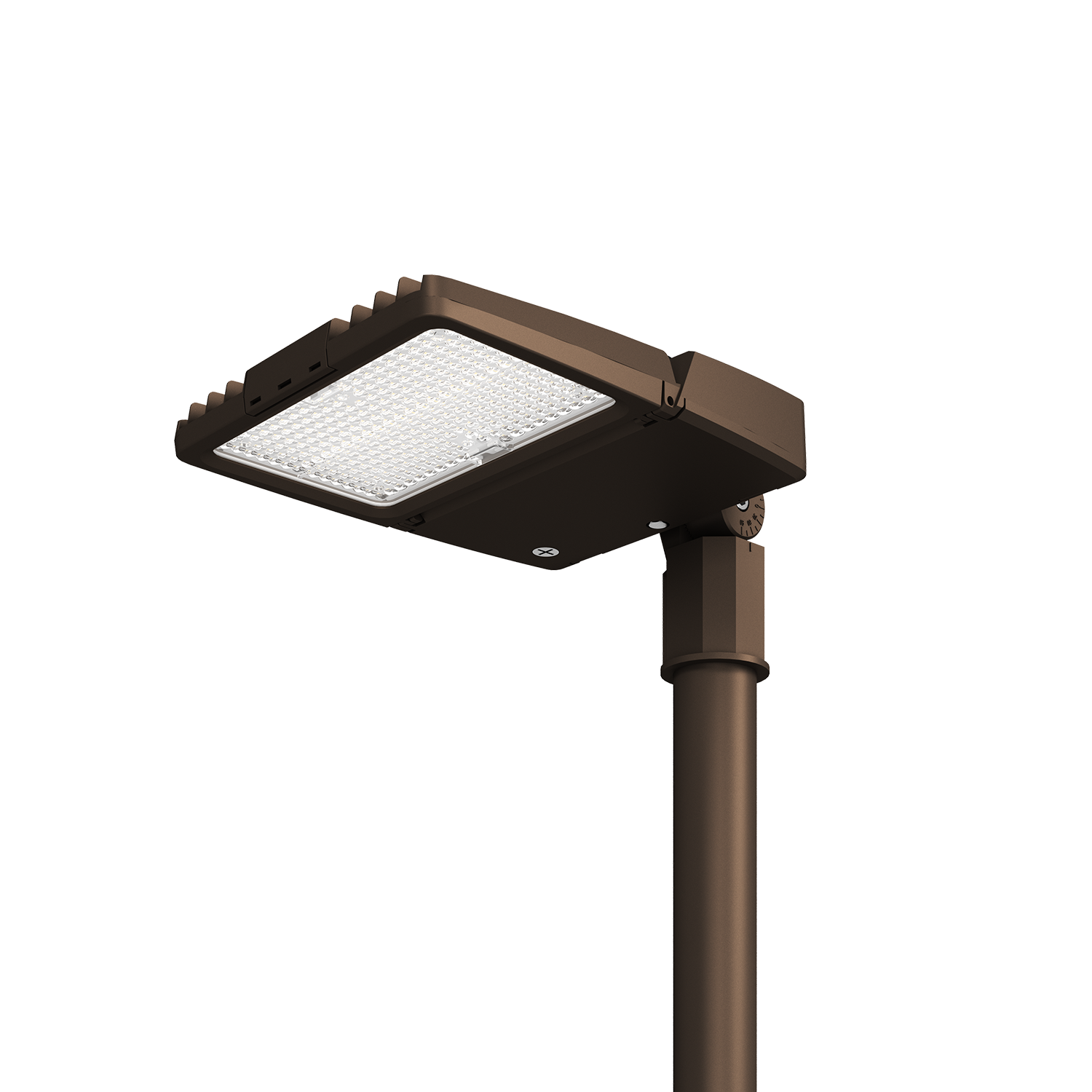

100W area light is a high-quality LED parking lot shoebox with excellent cost performance. The CCT & Power adjustable optional solution allows for better SKU reduction. The AOK PLB Series is ideal for 100W parking lot lighting, offering energy efficiency and versatility. It delivers cooler operating temperatures, bright illumination, full cutoff lighting, and an extended LED lifespan, making it suitable for commercial and industrial applications. With optional CCT and power adjustment capabilities, the PLB Series simplifies SKU management and customization. Choose the PLB Series for exceptional performance and cost-effectiveness in your parking lot lighting needs.

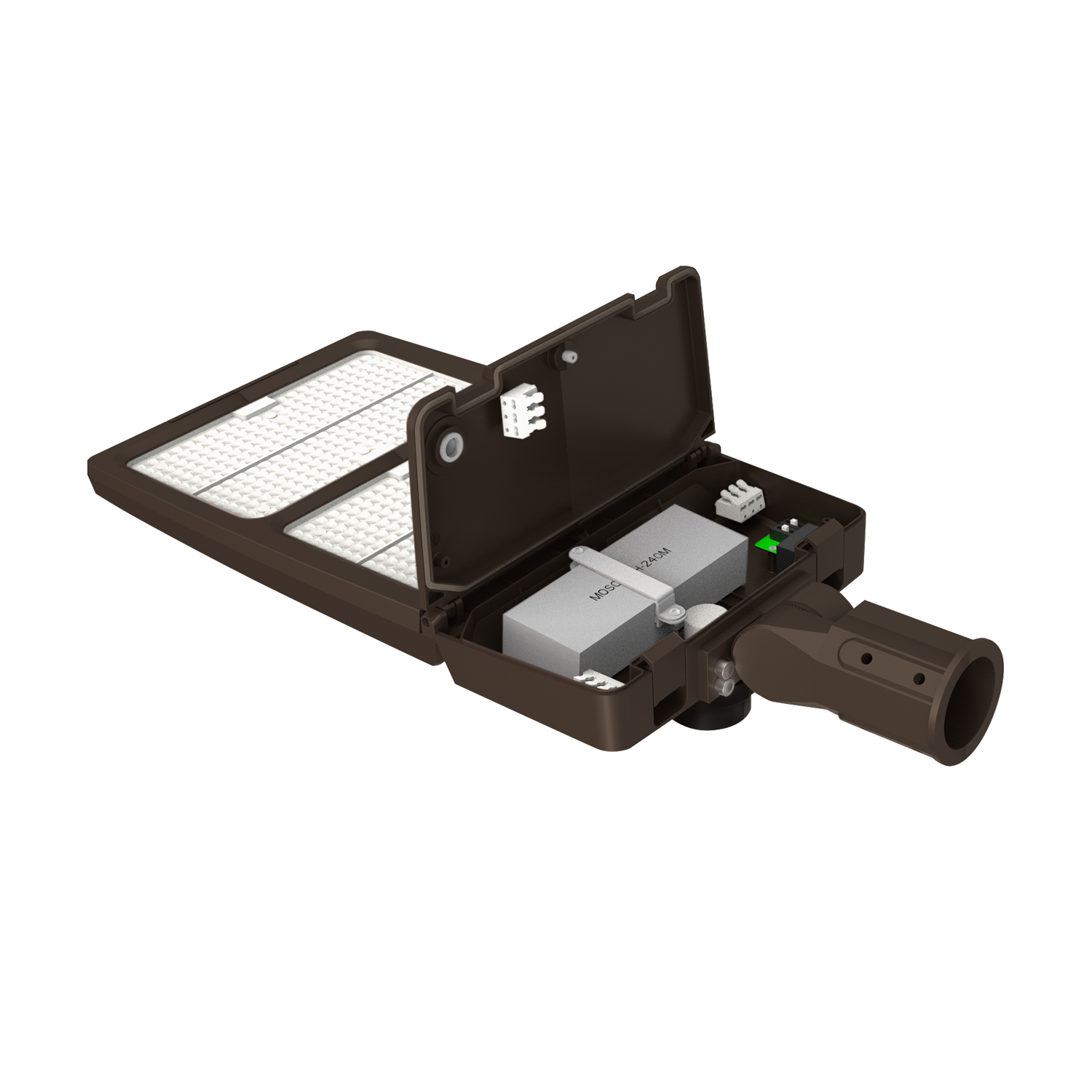

✔ Thermally isolated light engine for superior heat dissipation and industrial-grade design

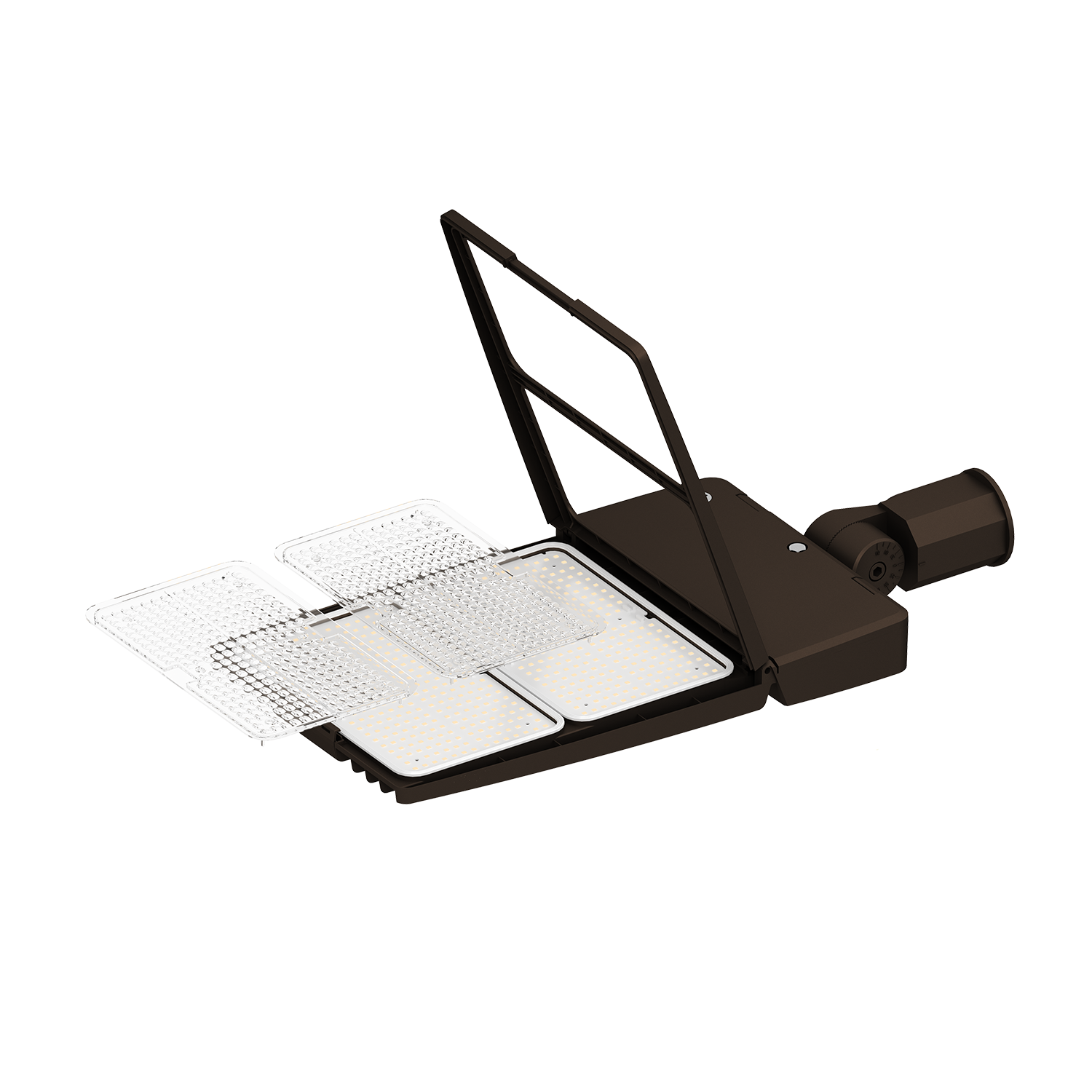

✔ Micro-lens systems for IESNA Type IV distributions, ensuring full cutoff and no uplight pollution
✔ 0% total lumens above 90° (BUG Rating U=0) for uniform light output with reduced glare
✔ IP66-rated optical systems for durability

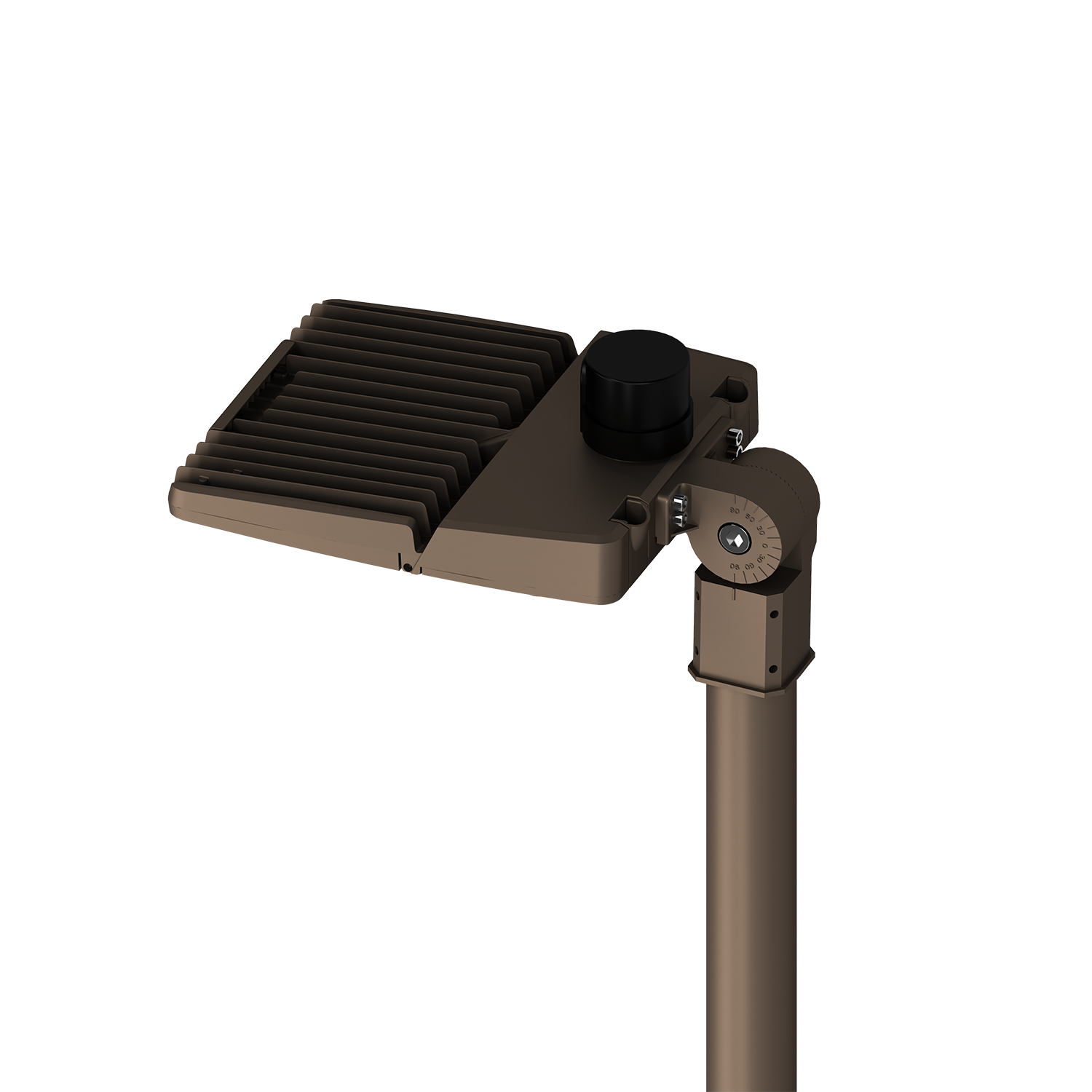

✔ Reserved space for future sensor installation
· Urban and residential streets
· Bridges pathways
· Bike and pedestrian paths
· Railway stations and metros
· Car parks
· Squares and pedestrian areas
· Roads and motorways
100W area light is a high-quality LED parking lot shoebox with excellent cost performance. The CCT & Power adjustable optional solution allows for better SKU reduction. The AOK PLB Series is ideal for 100W parking lot lighting, offering energy efficiency and versatility. It delivers cooler operating temperatures, bright illumination, full cutoff lighting, and an extended LED lifespan, making it suitable for commercial and industrial applications. With optional CCT and power adjustment capabilities, the PLB Series simplifies SKU management and customization. Choose the PLB Series for exceptional performance and cost-effectiveness in your parking lot lighting needs.
✔ Thermally isolated light engine for superior heat dissipation and industrial-grade design
✔ Micro-lens systems for IESNA Type IV distributions, ensuring full cutoff and no uplight pollution
✔ 0% total lumens above 90° (BUG Rating U=0) for uniform light output with reduced glare
✔ IP66-rated optical systems for durability
✔ Reserved space for future sensor installation
· Urban and residential streets
· Bridges pathways
· Bike and pedestrian paths
· Railway stations and metros
· Car parks
· Squares and pedestrian areas
· Roads and motorways
【File Download】
AOK_Catalog_Parkinglot Light_PLB_v25-02-10.pdf
AOK PLB(100W-300W)_Parkinglot Light_Installation Guide_Bracket A_V25-01-06.pdf
AOK PLB(100W-300W)_Parkinglot Light_Installation Guide_Bracket B_V25-01-06.pdf
AOK PLB(100W-300W)_Parkinglot Light_Installation Guide_Bracket D_V25-01-06.pdf
AOK PLB(100W-300W)_Parkinglot Light_Installation Guide_Bracket E_V25-01-06.pdf
AOK PLB(100W-300W)_Parkinglot Light_Installation Guide_Bracket F_V25-01-07.pdf
AOK PLB(100W-300W)_Parkinglot Light_Installation Guide_Bracket G_V25-01-08.pdf
【File Download】
AOK_Catalog_Parkinglot Light_PLB_v25-02-10.pdf
AOK PLB(100W-300W)_Parkinglot Light_Installation Guide_Bracket A_V25-01-06.pdf
AOK PLB(100W-300W)_Parkinglot Light_Installation Guide_Bracket B_V25-01-06.pdf
AOK PLB(100W-300W)_Parkinglot Light_Installation Guide_Bracket D_V25-01-06.pdf
AOK PLB(100W-300W)_Parkinglot Light_Installation Guide_Bracket E_V25-01-06.pdf
AOK PLB(100W-300W)_Parkinglot Light_Installation Guide_Bracket F_V25-01-07.pdf
AOK PLB(100W-300W)_Parkinglot Light_Installation Guide_Bracket G_V25-01-08.pdf
Parameter Table
Electrical Specifications | ||||||
Model | AOK-PLB100W | AOK-PLB150W | AOK-PLB180W | AOK-PLB240W | AOK-PLB300W | |
3-in-1 Watt Seletable | 60-75-100W | 75-100-150W | 115-150-180W | 180-200-240W | 200-240-300W | |
Input Voltage | Normal Voltage=100-277VAC, High Voltage=277-480VAC, please read *Note-1 before choosing | |||||
PF | ≥0.97 | |||||
Maximum Current | - | |||||
Control Option | Driver includes wiring for 0-10V dimming systems. Dim as low as 10%. | |||||
Operating Temperature | 180W/300W: -40°C to 45°C(-40 °F to 113 °F) Other: -40°C to 50°C (-40 °F to 122 °F) | |||||
Surge Protection | 10KV SPD | |||||
Photometric Specifications | ||||||
Efficacy (lm/W,Std Dev ±5%) @2835,CRI 70Ra, 4000K | 150-160lm/W | |||||
Luminous Flux(lm,Std Dev ±5%) @2835,CRI 70Ra, 4000K | 9600-16000lm | 12000-22500lm | 17500-27000lm | 27000-36000lm | 30000-45000lm | |
Efficacy (lm/W,Std Dev ±5%) @5050,CRI 70Ra, 4000K | 190-200lm/W | |||||
Luminous Flux(lm,Std Dev ±5%) @5050,CRI 70Ra, 4000K | 12000-19500lm | 14850-28800lm | 22425-33840lm | 35000-46320lm | 38000-57000lm | |
CCT | 3000K~6500K | |||||
CRI | Ra70 / Ra80 / Ra90 | |||||
LED Model | 2835, 5050 optional | |||||
Lens | Polycarbonate | |||||
Beam Angle | T401,T402(90°x150°) | |||||
Mechanical Specifications | ||||||
IP/IK | IP66/IK10, according to standard EN 60529 and EN 62262 | |||||
Housing | Heavy-duty die-cast aluminum (EN AC-46100) | |||||
Heat Radiator | Aluminum alloy | |||||
Surface Treatment | Anti-UV thermosetting polyester / Anti-UV thermosetting polyester (for extremely corrosive environments). | |||||
Painting | Black, Custom request | |||||
Cable | Pre-wired with a 30 cm cable (Other lengths on request) | |||||
Mounting | Slip fitter(Φ40/60/76mm)/Arm mount/Slide & lock/Square pole/Round pole/Trunnion | |||||
Package Info | ||||||
Product Size | 20.75*11.97*2.44 inches / 527*304*62mm | 27.4*12.44*2.44 inches / 696*316*62mm | ||||
Net Weight | 3.2KG | 4.0KG | ||||
Carton Size | 22.63*13.97*5.71inches / 575*355*145mm | 29.33*14.37*5.71inches / 745*365*145mm | ||||
Gross Weight | 4.0KG | 4.9KG | ||||
Others | ||||||
Lifespan | L90B10 - 100 000 h, @Tq 25°C | |||||
Warranty | 5 years limited warranty | |||||
Certification | UL,DLC5.1,FCC |
Distribution Diagram
Parameter Table
Electrical Specifications | ||||||
Model | AOK-PLB100W | AOK-PLB150W | AOK-PLB180W | AOK-PLB240W | AOK-PLB300W | |
3-in-1 Watt Seletable | 60-75-100W | 75-100-150W | 115-150-180W | 180-200-240W | 200-240-300W | |
Input Voltage | Normal Voltage=100-277VAC, High Voltage=277-480VAC, please read *Note-1 before choosing | |||||
PF | ≥0.97 | |||||
Maximum Current | - | |||||
Control Option | Driver includes wiring for 0-10V dimming systems. Dim as low as 10%. | |||||
Operating Temperature | 180W/300W: -40°C to 45°C(-40 °F to 113 °F) Other: -40°C to 50°C (-40 °F to 122 °F) | |||||
Surge Protection | 10KV SPD | |||||
Photometric Specifications | ||||||
Efficacy (lm/W,Std Dev ±5%) @2835,CRI 70Ra, 4000K | 150-160lm/W | |||||
Luminous Flux(lm,Std Dev ±5%) @2835,CRI 70Ra, 4000K | 9600-16000lm | 12000-22500lm | 17500-27000lm | 27000-36000lm | 30000-45000lm | |
Efficacy (lm/W,Std Dev ±5%) @5050,CRI 70Ra, 4000K | 190-200lm/W | |||||
Luminous Flux(lm,Std Dev ±5%) @5050,CRI 70Ra, 4000K | 12000-19500lm | 14850-28800lm | 22425-33840lm | 35000-46320lm | 38000-57000lm | |
CCT | 3000K~6500K | |||||
CRI | Ra70 / Ra80 / Ra90 | |||||
LED Model | 2835, 5050 optional | |||||
Lens | Polycarbonate | |||||
Beam Angle | T401,T402(90°x150°) | |||||
Mechanical Specifications | ||||||
IP/IK | IP66/IK10, according to standard EN 60529 and EN 62262 | |||||
Housing | Heavy-duty die-cast aluminum (EN AC-46100) | |||||
Heat Radiator | Aluminum alloy | |||||
Surface Treatment | Anti-UV thermosetting polyester / Anti-UV thermosetting polyester (for extremely corrosive environments). | |||||
Painting | Black, Custom request | |||||
Cable | Pre-wired with a 30 cm cable (Other lengths on request) | |||||
Mounting | Slip fitter(Φ40/60/76mm)/Arm mount/Slide & lock/Square pole/Round pole/Trunnion | |||||
Package Info | ||||||
Product Size | 20.75*11.97*2.44 inches / 527*304*62mm | 27.4*12.44*2.44 inches / 696*316*62mm | ||||
Net Weight | 3.2KG | 4.0KG | ||||
Carton Size | 22.63*13.97*5.71inches / 575*355*145mm | 29.33*14.37*5.71inches / 745*365*145mm | ||||
Gross Weight | 4.0KG | 4.9KG | ||||
Others | ||||||
Lifespan | L90B10 - 100 000 h, @Tq 25°C | |||||
Warranty | 5 years limited warranty | |||||
Certification | UL,DLC5.1,FCC |
Distribution Diagram
