120W Big Power Solar Street Light-SAB

✔ LUMEN OUTPUT: up to 200lm/W
✔ BATTERY: Li-ion Battery
✔ SOLAR PANEL: Monocrystalline
✔ KELVIN OPTIONS: 3000K-6500K
✔ WATERPROOF: IP65
✔ DISTRIBUTION: T203(65*150°) / T212(75*165°) / T304(75*160°) / T402(80*150°) / T502(150*150°)
✔ CONTROLLER: MPPT/PWM Optional, custom IOT or remote control on request

Availability:

Quantity:



Inquire Add to Basket

Model:
AOK-SAB120
Brand:
AOK
Code:
##

120W BIG POWER ALL-IN-ONE LED SOLAR STREET LIGHT – SAB SERIES

Revolutionizing Solar Street Lighting with Power, Simplicity & Performance

The SAB Series represents the next evolution in all-in-one solar street lighting—designed for high output, simple installation, and dependable off-grid performance. Engineered with a high-capacity battery system and an integrated design, this smart solar street light eliminates the need for complex wiring while delivering robust, eco-friendly illumination for streets, parks, pathways, and remote locations.

Its compact, intelligent configuration combines premium monocrystalline solar panels, a powerful Li-ion battery, and a smart MPPT controller, ensuring exceptional brightness, minimal maintenance, and resilience in harsh environments.

FEATURES

✔ Powerful Efficiency

System efficacy up to 200lm/W

Available in 30W to 300W configurations

✔ High-Capacity Battery

Up to 2300Wh storage for long-lasting power

Equipped with LiFePO₄ batteries for over 2000 charge cycles, combining safety, space efficiency, and durability

✔ Intelligent MPPT Controller

Supports 2–3 days of continuous operation in intelligent mode during cloudy or rainy weather

✔ Durable & Weather-Resistant Design

Constructed with aluminum housing and UV-stabilized polyester powder coating for excellent corrosion resistance

Streamlined design for wind resistance and longevity

IP65-rated optical system for protection against dust and water

✔ Sustainable Lighting

Uplight output ratio (ULOR) = 0%, eliminating light pollution and preserving night sky visibility

✔ Premium Solar Panel Technology

High-efficiency monocrystalline silicon solar panels

Bifacial panel option available for increased solar conversion

✔ Smart Lighting Control

Features an induction dimmer and an optional presence detection sensor

Adjustable brightness and intelligent energy-saving mode

Dual battery protection system with 0V charging support

✔ Easy Installation & Flexible Mounting

Post-top mounting option available for versatile applications

WARRANTY

• 3~5 Year Limited Warranty. Please consult with our sales for detailed agreement.

For extended coverage and specific terms, please get in touch with our sales team

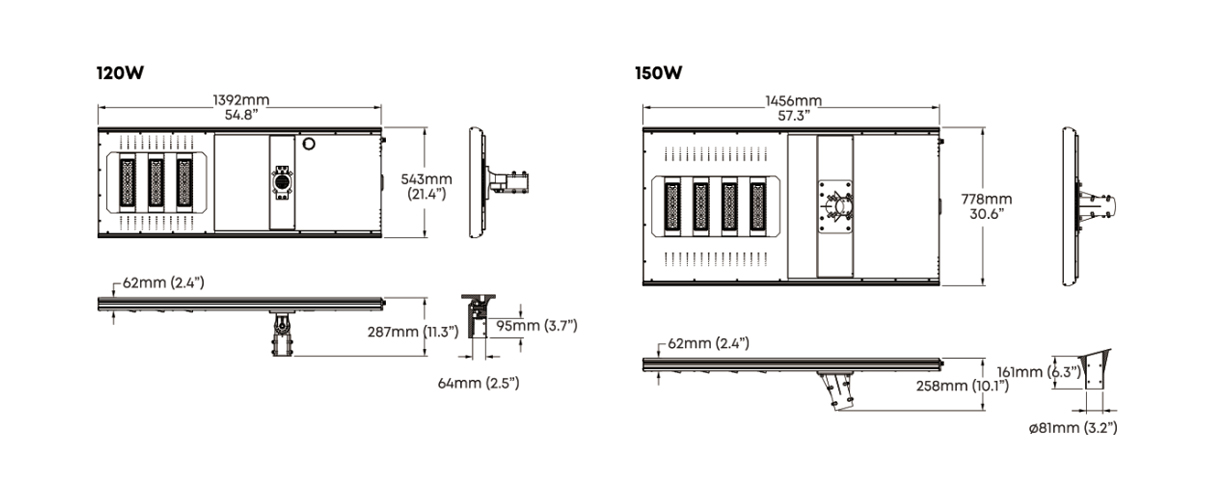

Dimensions

SAB-尺寸图-(120-150W)

Parameter Table

Electrical Data
Model		AOK-100WSAB	AOK-120WSAB	AOK-150WSAB	AOK-200WSAB	AOK-300WSAB
Power		100W	120W	150W	200W	300W
Control Option		Photocell sensor, Timing, dimming, intelligent power saving, microwave sensor or PIR sensor.
Grid Hybrid power Solution(optional) Driver		Inventronics/Meanwell
Work Mode		4H-Detected 100%, None 30% ;3H-Detected 70%, None 30% ;3H-Detected 50%, None 20%; 4H-Detected 30%, None 10%
Photometric Data
LED Model		5050, custom on request
Lens		Polycarbonate
Efficacy (lm/W, Std. Dev. ±5%)@CCT=5700K, CRI>70Ra	5050	200lm/W	200lm/W	200lm/W	200lm/W	200lm/W
Luminous Flux (lm, Std. Dev. ±5%)@CCT=5700K, CRI>70Ra	5050	20000lm	24000lm	30000lm	40000lm	60000lm
ULOR		= 0%, @ Luminaire inclination 0°
CCT		3000K~6500K
CRI		70Ra/80Ra optional
Beam Angle		T203(65°150°) / T212(75°165°) / T304(75°160°) / T402(80°150°) / T502(150°*150°)
Mechanical Data
IP Rating		IP65, according to standard EN 60529
Housing		Alluminum+SPCC
Surface Treatment		Anti-UV thermosetting polyester / 80 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments).
Painting		Grey, custom color on request, C5-grade painting.
Mounting		Post Top
Configuration Data
Photovoltaic Panel		Single side monocrystalline solar panel
Solar Panel Voltage(W)		36V 120W	36V 150W	36V 200W	36V 240W	36V 360W
Battery Voltage(AH)		25.6V 30AH	25.6V 45AH	25.6V 45AH	25.6V 60AH	25.6V 90AH
Li-ion Battery(WH)		768WH	1152WH	1152WH	1536WH	2304WH
Charging Time		6.7Hrs	8.1Hrs	6.1Hrs	6.7Hrs	6.7Hrs
Run Time (@full power)		7.3Hrs	9.1Hrs	7.3Hrs	7.3Hrs	7.3Hrs
Battery Lifespan		>2000 times cycle
Ambient Temperature		-10°C to 50°C (14°F to 122°F)
Storage Temperature		-20°C to 45°C (-4°F to 113°F)
Control System		MPPT/PWM optional, custom IOT or remote control on request
Maximum Autonomy		Operate 2~3 rainy days under intelligent model.
Others
Lifespan		L90B10 - 100000 hrs, @Tq 25°C
Warranty		3 years as standard (Warranty extension to 5 years on request)
Certification		Please consult for certification
Product Size		114654362 mm 45.121.42.4 in	139254362 mm 54.821.42.4 in	145677862 mm 57.330.62.4 in	161677862 mm 63.630.62.4 in	184696862 mm 72.738.12.4 in
Carton Size		1390620140 mm 54.724.45.5 in	1635615140 mm 64.424.25.5 in	1702855195 mm 6733.77.7 in	1862855195 mm 73.333.77.7 in	21151045195 mm 83.341.17.7 in
Net Weight		22.7 kg / 50 lbs	27.3 kg / 60.2 lbs	36.9 kg / 81.4 lbs	41.7 kg / 91.9 lbs	62.9 kg / 138.7 lbs
Gross Weight		24.4 kg / 53.8 lbs	29.2 kg / 64.4 lbs	40.3 kg / 88.8 lbs	45.4 kg / 100.1 lbs	67.4 kg / 148.6 lbs
Recommend Installation Height		8-10m	8-12m	10-12m	10-12m	10-12m
Application Field		Road & street, residential area, garden, parks, parking lot, industrial and commercial parks, railway & station side, riverside & jogging track
Storage Instruction		For long-term storage, it is advisable to charge 30% for the battery, then discharge it for 2 to 3 hours. This should be done every 3 months to prevent battery damage and extend the battery lifespan.
Important Note!		The provided information is solely for reference; the official measurement report holds higher authority.

Illuminance Diagram

SAB-配光图-1 - 副本
