160W High-Efficacy Roadway Lighting-IK02(L)

✔ LED MODEL: 2835 / 3030 / 5050
✔ EFFICACY: Up to 185lm/W
✔ CCT & CRI: 2700K / 3000K / 4000K / 5000K / 5700K / 6500K; CRI 70Ra / 80Ra / 90Ra optional
✔ IP&IK: IP66 / IK08 / IK09
✔ DISTRIBUTION: Type II / Type III / Type IV / Type V; 20+ optical distributions available
✔ HOUSING: Heavy-duty die-cast aluminum (ADC12), RAL9007 gray
✔ CONTROLLER: DALI-2 / D4i / 0/1-10V / PWM / Timer Dimming; Zhaga/NEMA compatible
✔ WARRANTY: 5-year standard warranty; 10-year warranty optional

Availability:

Quantity:



Inquire Add to Basket

Model:
AOK-160WiK02(L)
Brand:
AOK
Code:
##

AOK 160W High-Efficacy Roadway Lighting-IK02

High-Efficiency LED Street Lighting with Flexible Optics and Smart Control Compatibility

The AOK IK02 LED Street Light is a high-performance roadway lighting solution designed for roads, highways, urban streets, residential areas, parking lots, parks, perimeters, riversides, and jogging tracks. Available from 20W to 180W, the IK02 Series combines high luminous efficacy, multiple LED configurations, flexible optical distributions, durable die-cast aluminum housing, and smart lighting control compatibility.

With efficacy up to 185lm/W depending on LED configuration and power, the IK02 supports Type II, Type III, Type IV, and Type V distributions for different road and outdoor lighting requirements. Multiple CCT and CRI options, adjustable mounting, Zhaga/NEMA interfaces, and DALI-2, D4i, 0/1-10V, PWM, and timer dimming options support customized lighting projects and connected street lighting applications.

Key Features:

20W–180W power range for different roadway and outdoor lighting requirements.

High efficacy up to 183 lm/W with selected 5050 LED configuration.

2835 / 3030 / 5050 LED options for flexible performance and project customization.

Type II, Type III, Type IV and Type V optical distributions available.

Over 20 light distribution options with customized distributions available.

2700K, 3000K, 4000K, 5000K, 5700K and 6500K CCT options.

CRI 70Ra, 80Ra and 90Ra options.

0% uplight ratio (ULR) at 0° luminaire inclination.

IP66 optical system protection with IK08/IK09 impact protection according to EN 60529 and EN 62262.

3G vibration resistance, conforming to IEC 68-2-6.

Heavy-duty ADC12 die-cast aluminum housing for outdoor durability.

Tempered glass cover, 4/5 mm thick, with polycarbonate optical components.

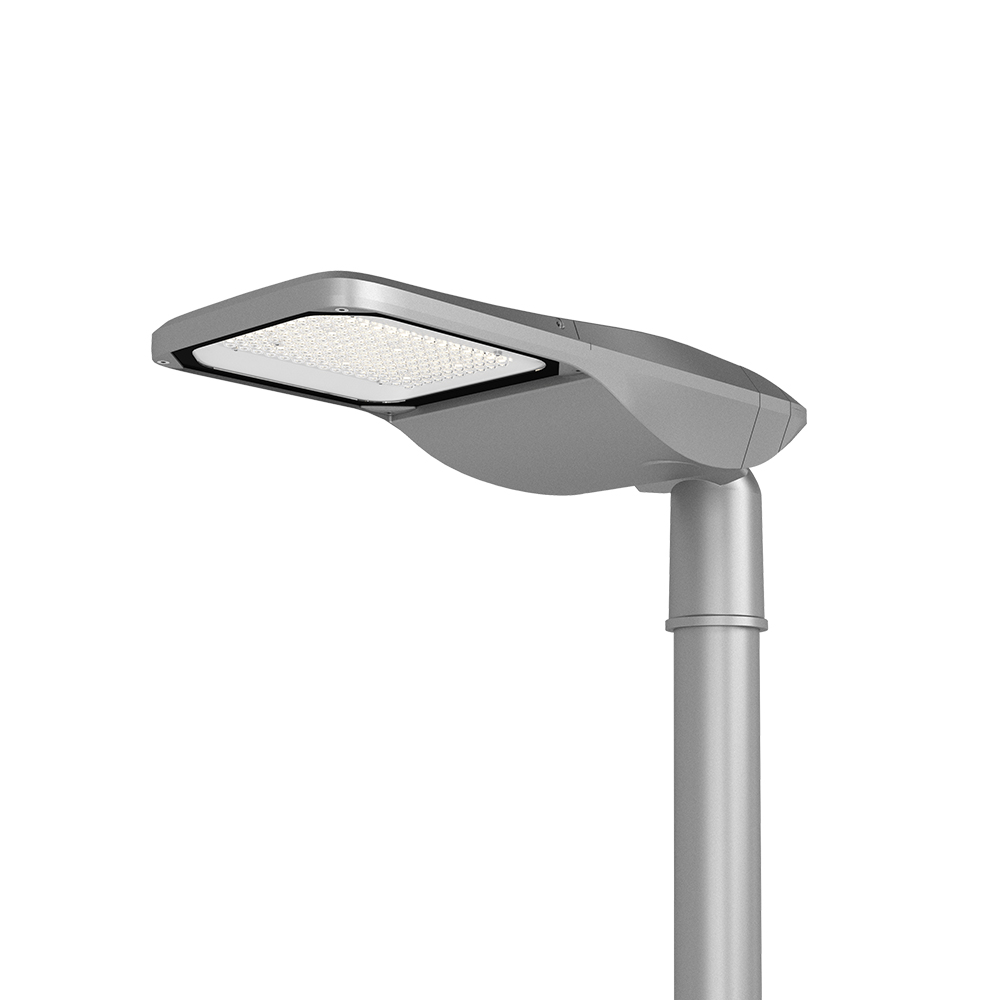

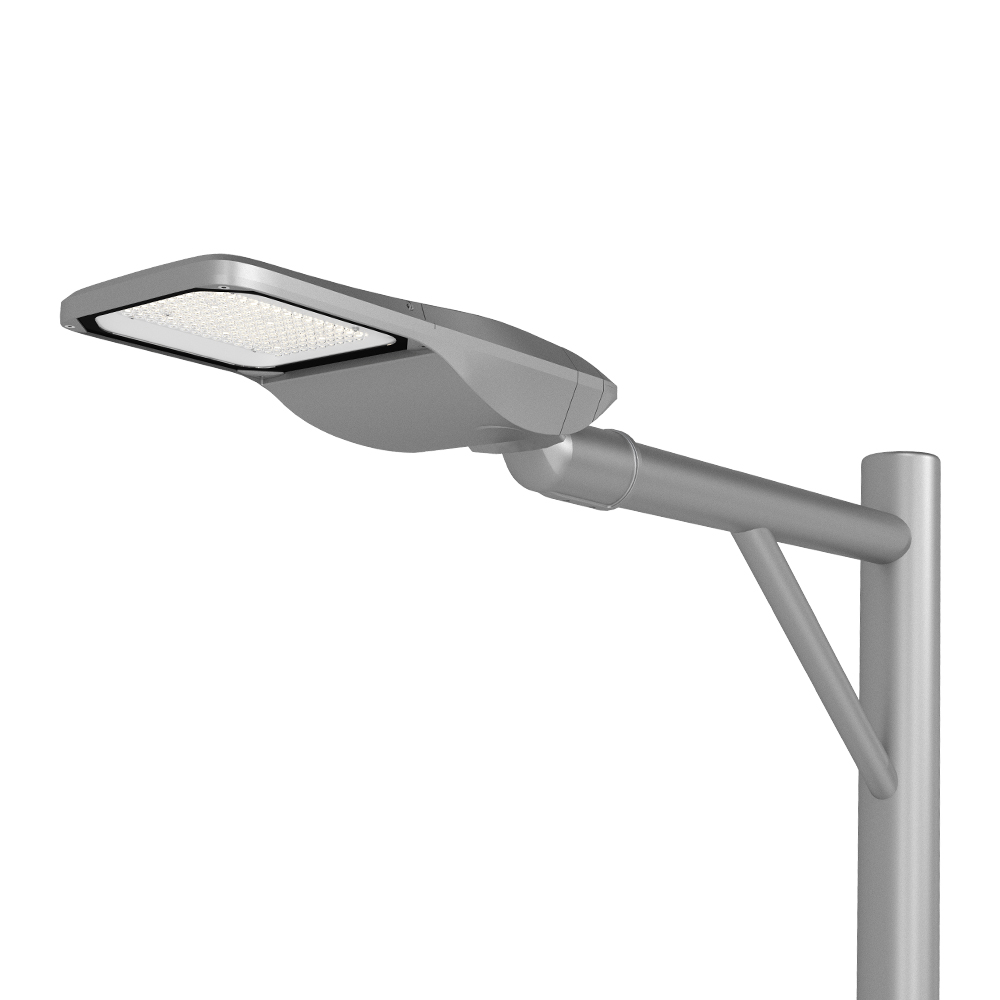

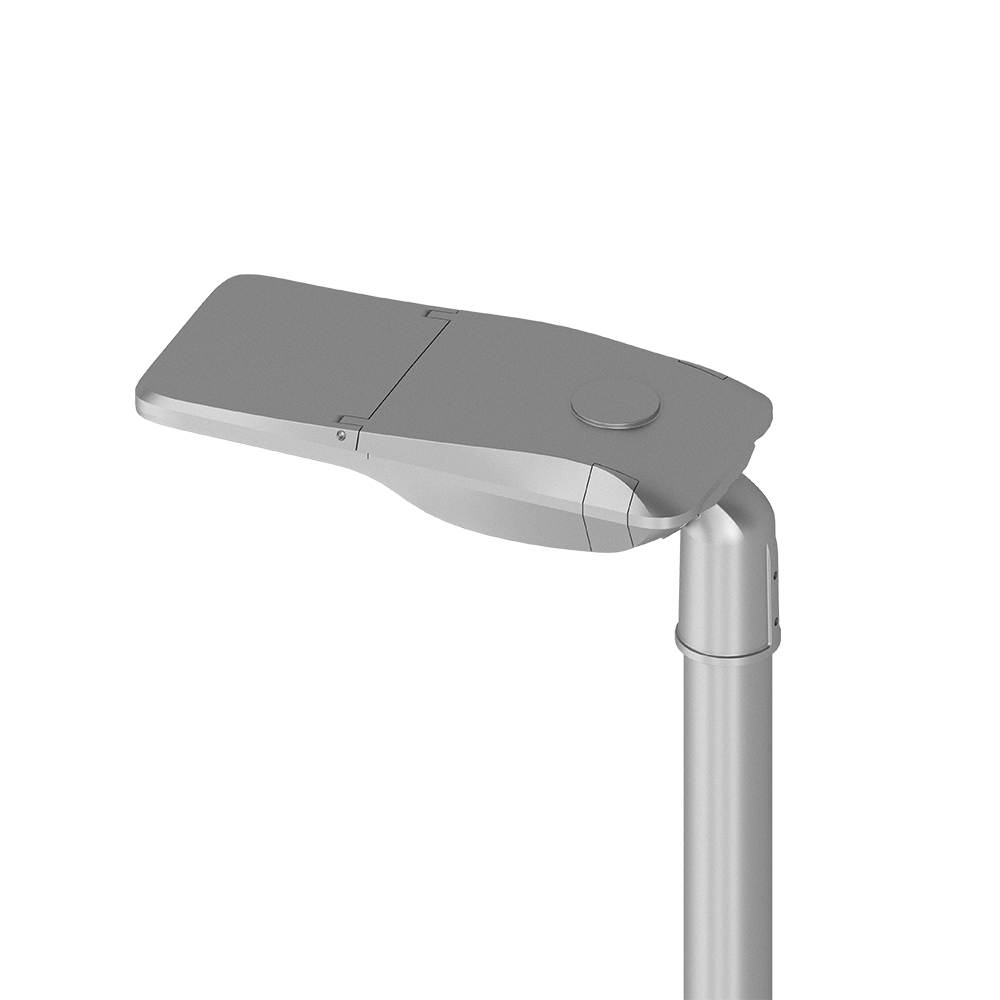

±20° adjustable mounting bracket for side-entry and post-top installation.

Zhaga and NEMA socket compatibility for photocells, sensors and smart controls.

DALI-2, D4i, 0/1-10V, PWM and timer dimming control options.

10kV / 20kV surge protection options.

L70 >100,000 hours at Ta 25°C.

Operating temperature down to -40°C, depending on model and configuration.

Custom LED, optics, CCT/CRI, mounting and other configurations available upon request.

Applications:

Road & highway lighting

Urban road & street lighting

Residential area lighting

Parks & perimeter lighting

Parking lot lighting

Riverside & jogging track lighting

Municipal roadway lighting

Outdoor infrastructure lighting

Smart and connected street lighting projects

WARRANTY

· 5-year standard warranty, 10-year warranty optional. Please consult with AOK sales for detailed agreement.

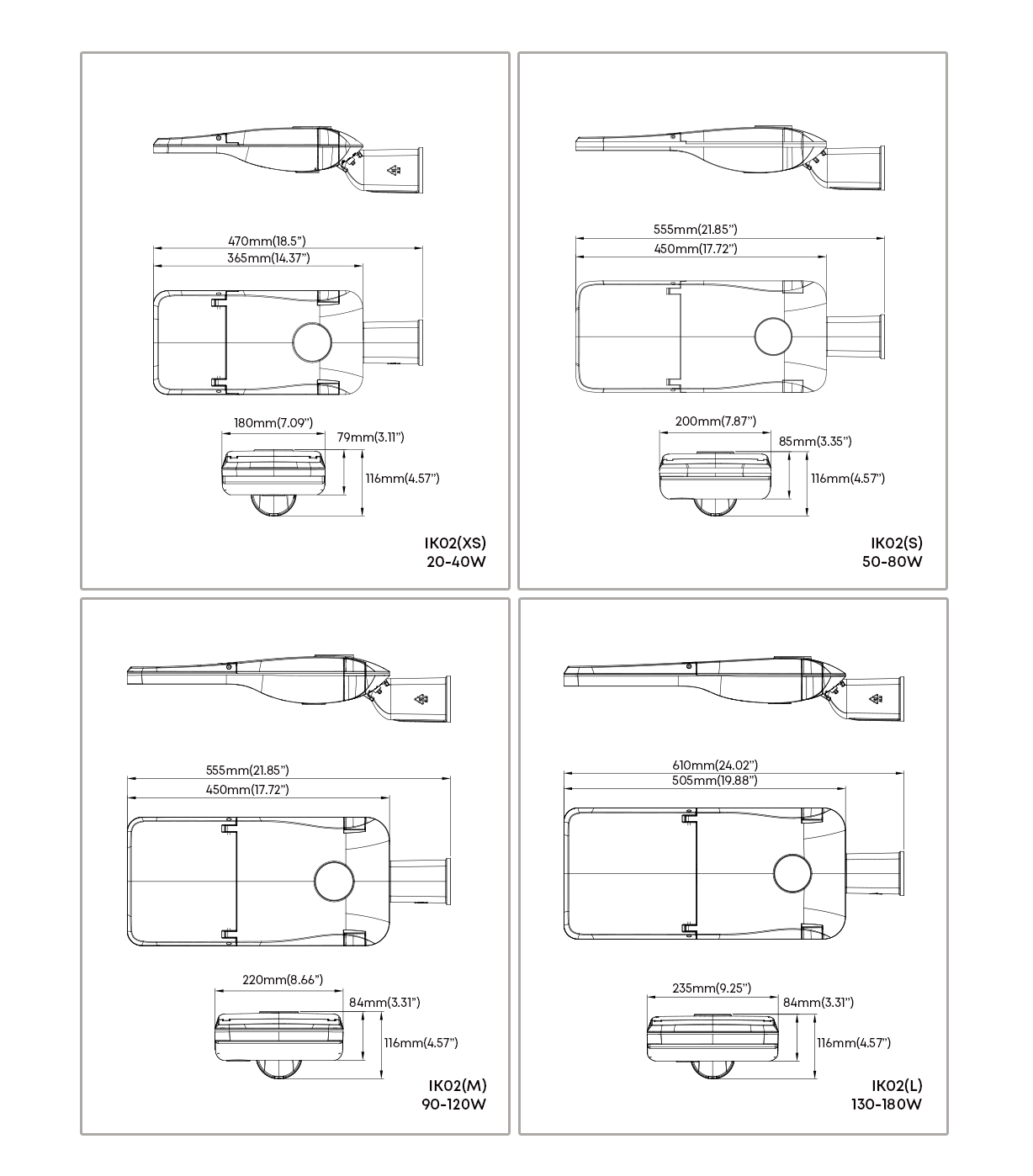

Dimension:

IK02-尺寸图

Standard Parameter

Electrical Data
Model		AOK-iK02(L)-(130-180W)
Power		130W	140W	150W	160W	170W	180W
Input Voltage		100-277VAC / 220-240VAC
THD (220Vac)		≤10%
PF (220Vac)		≥0.95
Driver		(Sosen、Inventronics、Moso)/Class 1, (Sosen、DONE)/Class 1、 Class 2				(Sosen、Inventronics、Moso)/ Class 1, (MOSO)/Class 1、 Class 2
Operating Temperature		-40°C to 55°C (-40 °F to 131 °F)		-40°C to 50°C (-40 °F to 122 °F)		-40°C to 45°C (-40 °F to 113 °F)
Control Option		DALI-2, D4i,0/1-10V, PWM, timer dimming
Surge Protection		10kV / 20kV optional
Photometric Data
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)	T2(100*160°)	172lm/W	171lm/W	170lm/W	168lm/W	-	-
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)	T2(100*160°)	22360lm	23940lm	25500lm	26880lm	-	-
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050	T2(85*160°)	182lm/W	181lm/W	180lm/W	178lm/W	176lm/W	174lm/W
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050	T2(85*160°)	23660lm	25340lm	27000lm	28480lm	29920lm	31320lm
ULR		= 0%, @ Luminaire inclination 0°
CCT		2700K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI		70Ra, 80Ra, 90Ra optional
Beam Angle		Type-II (85150°,110155°, 75150°, 100160°, 85160°) / Type III (100160°, 90150°, 85155°,100145°, 120160°) / Type IV (125160°, 115145°)/Type V (150*150°), customization acceptable, please request
LED Manufacturer		Other brands, customization acceptable, please request
LED Model		2835 / 3030 / 5050
Lens		Polycarbonate+tempered glass(4/5 mm thick)
Mechanical Data
IP/IK		Optical systems maintain at IP66, IK08/IK09, according to standard EN 60529 and EN 62262
Vibration Resistance		3G rated, conform to standard IEC 68-2-6.
SCx		0.12m²(top view), 0.036m² (side view)
Materials		Heavy-duty die-cast aluminum (ADC12)
Painting		RAL9007 gray , Custom request
Surface Treatment		Anti-UV thermosetting polyester / 80 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments).
Cable		Pre-wired with a 30 cm cable (Other lengths on request)
Mounting		Side Entry/Post Top, (Φ42~60mm pole，±20° adjustable), custom request
Others
Lifespan		L70 > 100000hrs, @Ta 25°C
Warranty		5 years (Warranty extension up to 10 years on request)
Product Size		610235116mm/24.029.254.57"
Net Weight		4.6kg/10.14lbs
Standard Package Size		660285160mm/25.9811.226.3"
Gross Weight		5.8KG/12.79lbs
Recommend Installation Height		General 4-12m, based on actual project requirements
Standard Accessories		None
Optional Accessories		10KV/20KV SPD、NEMA (Socket, Shorting Cap, Photocell)、 Zhaga(Socket,Photocell/Microwave/PIR Sensor)、 Lid Support、Frame、Breather Vent、Zhaga LED Board,Tempered Glass (4/5 mm thick)、Fuse Holder+Fuse
Important Note!		The provided parameters are solely for design reference; the official measurement report holds higher and final authority.
