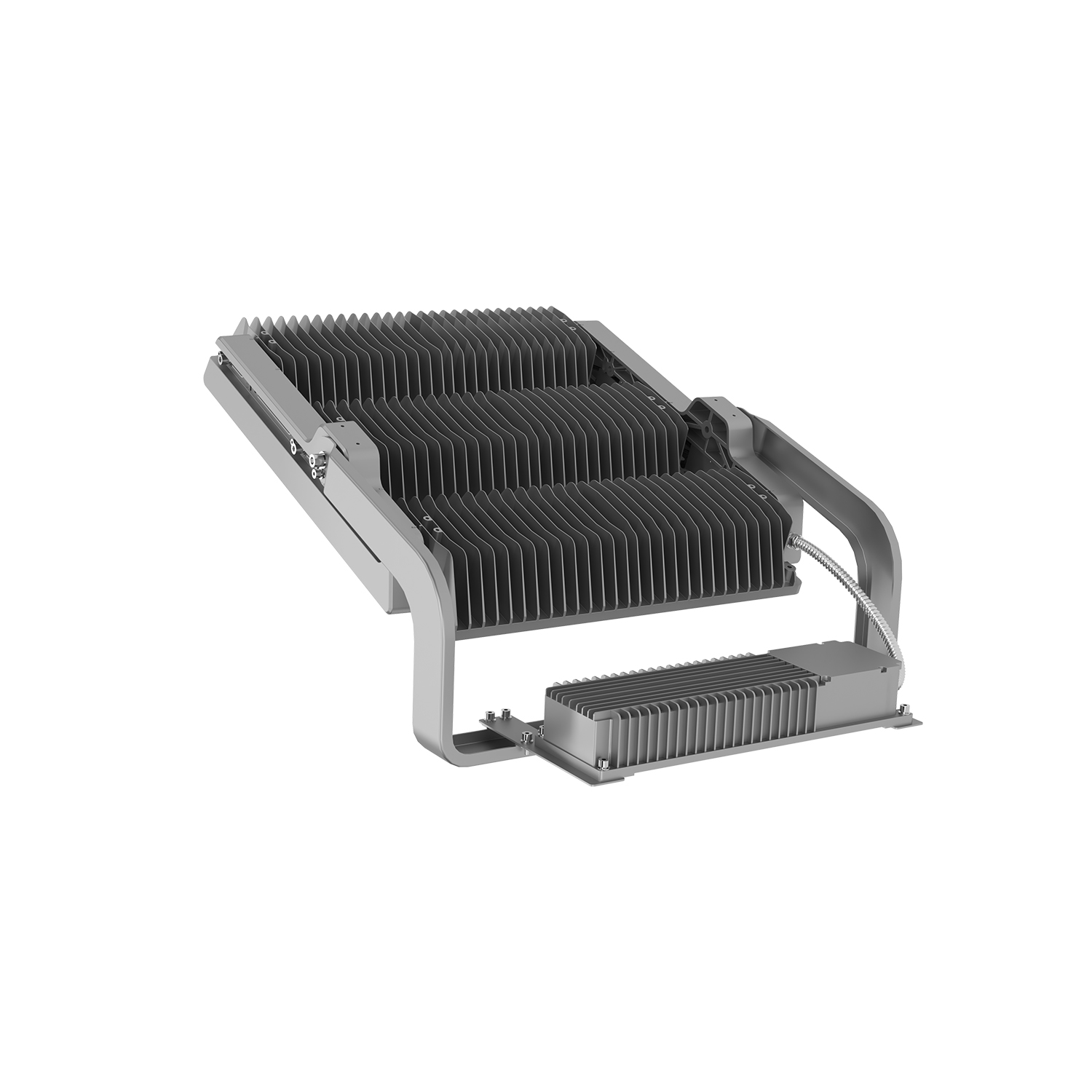

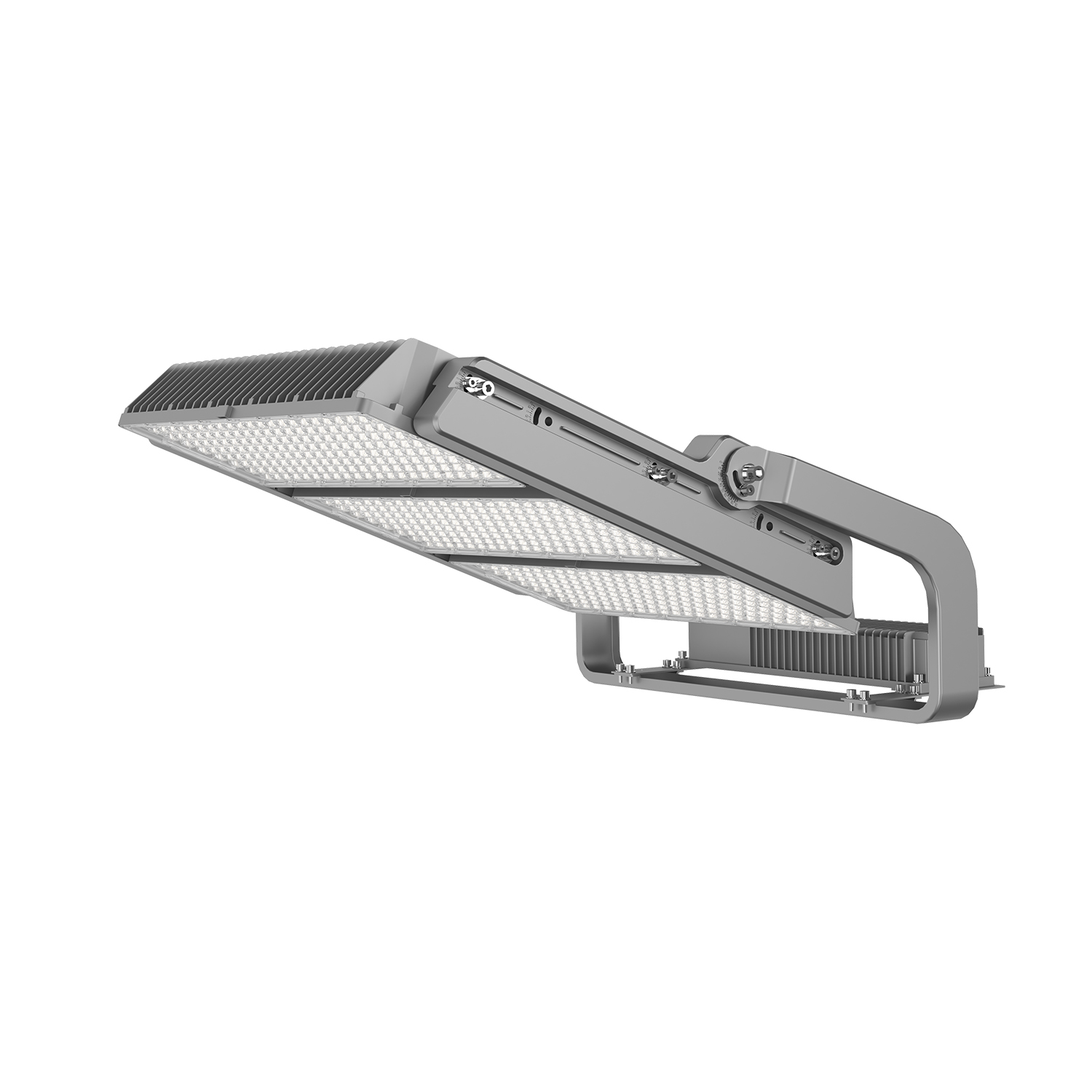

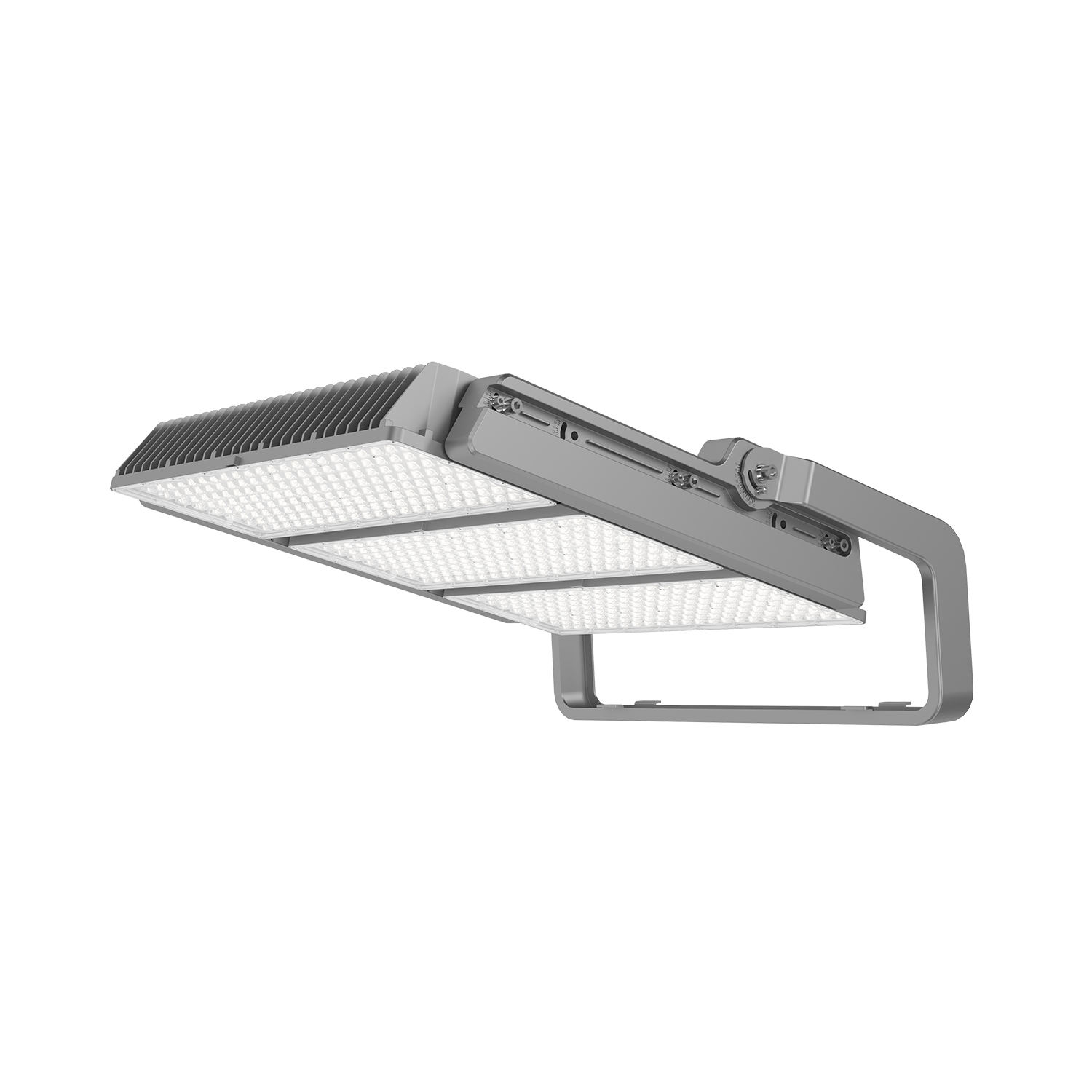

1800W LED Sports Flood Light-FSD

✔ LED MODEL: 3535 / 5050 LED
✔ EFFICACY: Up to 185 lm/W
✔ CCT & CRI: 2700K–6500K, CRI 70/80/90 optional
✔ IP & IK: IP66 / IK08–IK10
✔ DISTRIBUTION: 15D/30D/60D/20*30D/T302 (30*130D) asymmetric beam
✔ HOUSING: Heavy-duty die-cast aluminum (ADC12)
✔ CONTROLLER: DALI-2 / D4i / 0-10V dimming / DMX
✔ WARRANTY: 5 years standard, up to 10 years optional

Availability:

Quantity:



Inquire Add to Basket

Model:
AOK-1800WFSD
Brand:
AOK
Code:
##

1800W LED Sports Flood Light – FSD Series

High-Power 600W–2100W Stadium Lighting with Low Glare & 0% ULOR

Key Features:

Professional Sports Lighting Optics

Asymmetric optical design ensures precise illumination on the field with ULOR=0%, eliminating uplight and reducing light pollution.

High-Efficiency Performance

Up to 185 lm/W with powerful luminous output reaching Max. 2100W, 367,500 lumens, ideal for large-scale sports venues and high-mast lighting.

Modular Design for Easy Maintenance

Flexible modular structure allows quick replacement and maintenance, reducing downtime and service costs.

Low Glare & Environmental Friendly

Reduces glare by up to 40% and light spill by over 50%, improving visual comfort for athletes and spectators.

Flexible Installation & Precise Aiming

Multi-angle adjustable modules (±20°) and brackets (0–90°), with optional laser aiming system for accurate installation.

Smart Control Compatibility

Supports DALI-2, D4i, and 0/1–10V dimming, DMX systems, ready for intelligent lighting control integration.

Durable Industrial Construction

Die-cast aluminum housing with IP66 and IK10 protection, ensuring reliable operation in harsh outdoor environments.

Applications

Stadium lighting (football, soccer, sports arenas)

Sports fields & training grounds

Ports & container terminals

Railway stations & infrastructure lighting

High mast & large area flood lighting

WARRANTY

5 Year Limited Warranty, 10 Year Preferred Warranty. Please consult with our sales for detailed agreement..

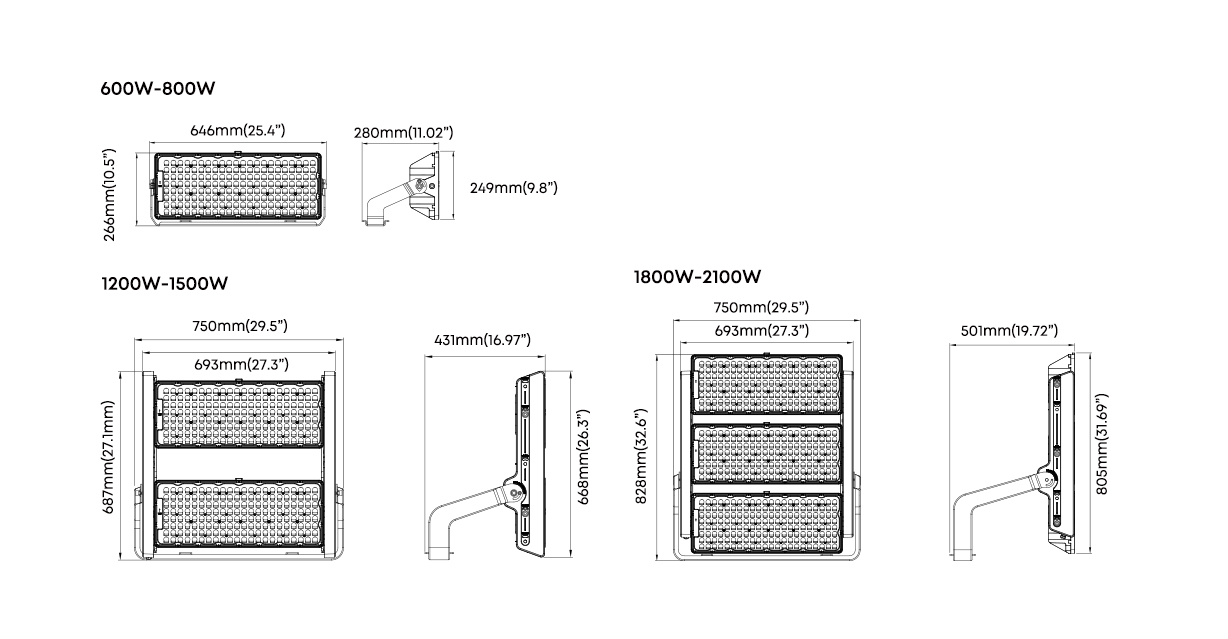

Dimensions:

Standard Parameter

Electrical Data
Model		AOK-1800WFSD	AOK-1900WFSD	AOK-2000WFSD	AOK-2100WFSD
Power		1800W	1900W	2000W	2100W
Module		3
Input Voltage		200-480VAC
THD (220Vac)		≤10%
PF (220Vac)		≥0.95
Driver		Inventronics, Sosen	Inventronics
Operating Temperature		-40°C to 55°C (-40 °F to 131 °F)	-40°C to 50°C (-40 °F to 122 °F)		-40°C to 45°C (-40 °F to 113 °F)
Control Option		DALI-2, D4i, DMX, 0/1-10V, timer dimming
Photometric Data
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)5050LED	T302 (30*130°)	170lm/W	165lm/W	165lm/W	165lm/W
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)5050LED	T302 (30*130°)	306000lm	313500lm	330000lm	346500lm
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)5050LED	30D, 60D	180lm/W	175lm/W	175lm/W	175lm/W
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)5050LED	30D, 60D	324000lm	332500lm	350000lm	367500lm
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)3535LED	15D, 20*30D	165lm/W	160lm/W	160lm/W	160lm/W
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)3535LED	15D,20*30D	297000lm	304000lm	320000lm	336000lm
ULR		= 0%, @ Luminaire inclination 0°
CCT		2700K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI		70Ra, 80Ra, 90Ra optional
Beam Angle		15°/2030°/30°/60°/T302(30130°)
LED Manufacturer		Other brands, customization acceptable, please request
LED Model		5050
Lens		Polycarbonate、Custom tempered glass options are available subject to MOQ requirements. Please consult our sales team for detailed information.
Mechanical Data
IP/IK		Optical systems maintain at IP66, IK08/IK09/IK10, according to standard EN 60529 and EN 62262
Vibration Resistance		3G rated, conform to standard IEC 68-2-6.
SCx		0.567m²(top view), 0.11m² (side view)
Materials		Heavy-duty die-cast aluminum (ADC12)
Painting		Gray, Custom request
Surface Treatment		Anti-UV thermosetting polyester / 80 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments).
Cable		Pre-wired with a 100 cm cable (Other lengths on request)
Mounting		Vertical and horizontal installation
Others
Lifespan		L70 > 100000hrs, @Ta 25°C
Warranty		5 years (Warranty extension up to 10 years on request)
Certification		Please consult us
Product Size		750501828mm/29.5319.7232.6"
Net Weight(Without driver)		31.5kg/69.45lbs(±0.5KG)
Standard Package Size		1060W810H300mm/41.7331.8911.81"
Gross Weight(With driver)		44KG/97lbs
Standard Accessories		Breather vent, safety rope
Optional Accessories		Laser Aiming, Lighting Louver,Visor，10kv/20KV SPD
Important Note!		The provided parameters are solely for design reference; the official measurement report holds higher and final authority.

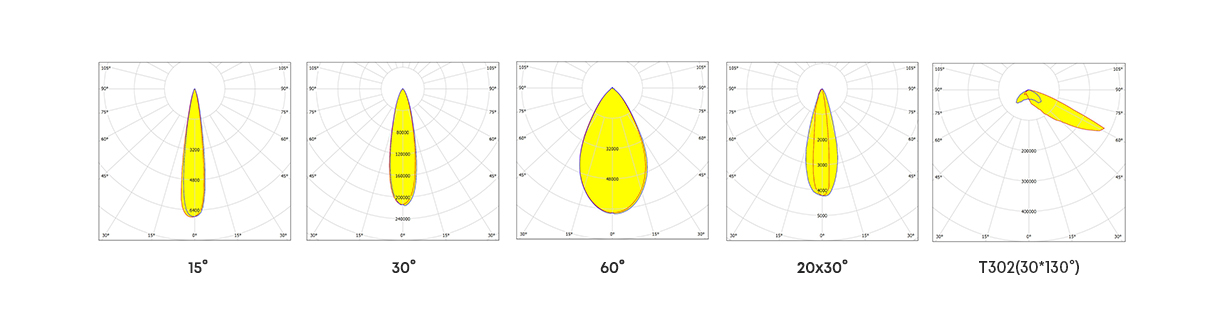

Photometry
