AOK-SAA180
AOK
##
Introducing the next-generation 180W Mega Power All-in-One Solar Street Light SAA series, a groundbreaking lighting solution with a high-capacity battery designed for easy installation and maximum efficiency. This innovative solar light features a simplified connection system, eliminating complex wiring and technical challenges. Perfect for streets, pathways, parks, and remote locations, it harnesses solar energy for dependable, eco-friendly illumination.
Built with high-efficiency solar panels, a robust Li-ion battery, and smart control options, the Mega Power Solar Street Light ensures consistent performance and long-lasting brightness. Its durable, weather-resistant construction supports harsh environmental conditions, while its integrated design allows minimal maintenance. Experience advanced solar street lighting with unmatched convenience and sustainability.
• Superior Efficiency: System efficacy up to 220lm/W, available from 30W to 300W.
• Large Battery Capacity: Maximum support to 3000Wh.
• Advanced Battery Technology: LiFePO4 batteries with over 2000 charge cycles for safety, compact size, and extended lifespan.
• Smart MPPT Controller: Operates for 2-3 rainy days in intelligent mode for reliable lighting.
• Rugged Construction: Aluminum fixture housing with UV-stabilized polyester powder coating for corrosion resistance.
• Flexible Mounting: Post-top mounting option available.
• Streamlined Design: Wind-resistant structure with IP65-rated optical systems.
• Eco-Friendly Lighting: ULOR = 0% to eliminate uplight pollution.
• Intelligent Control: Induction dimmer with optional presence detection sensor, energy-saving mode, adjustable brightness, and dual battery protection with 0V charging support.
• Premium Solar Panels: Monocrystalline silicon solar panels, with a bifacial solar panel option.
3 to 5 years limited warranty. Please consult our sales team for detailed terms and agreements.
Introducing the next-generation 180W Mega Power All-in-One Solar Street Light SAA series, a groundbreaking lighting solution with a high-capacity battery designed for easy installation and maximum efficiency. This innovative solar light features a simplified connection system, eliminating complex wiring and technical challenges. Perfect for streets, pathways, parks, and remote locations, it harnesses solar energy for dependable, eco-friendly illumination.
Built with high-efficiency solar panels, a robust Li-ion battery, and smart control options, the Mega Power Solar Street Light ensures consistent performance and long-lasting brightness. Its durable, weather-resistant construction supports harsh environmental conditions, while its integrated design allows minimal maintenance. Experience advanced solar street lighting with unmatched convenience and sustainability.
• Superior Efficiency: System efficacy up to 220lm/W, available from 30W to 300W.
• Large Battery Capacity: Maximum support to 3000Wh.
• Advanced Battery Technology: LiFePO4 batteries with over 2000 charge cycles for safety, compact size, and extended lifespan.
• Smart MPPT Controller: Operates for 2-3 rainy days in intelligent mode for reliable lighting.
• Rugged Construction: Aluminum fixture housing with UV-stabilized polyester powder coating for corrosion resistance.
• Flexible Mounting: Post-top mounting option available.
• Streamlined Design: Wind-resistant structure with IP65-rated optical systems.
• Eco-Friendly Lighting: ULOR = 0% to eliminate uplight pollution.
• Intelligent Control: Induction dimmer with optional presence detection sensor, energy-saving mode, adjustable brightness, and dual battery protection with 0V charging support.
• Premium Solar Panels: Monocrystalline silicon solar panels, with a bifacial solar panel option.
3 to 5 years limited warranty. Please consult our sales team for detailed terms and agreements.
【File Download】
AOK_Catalog_All In One Solar Street Light_SAA-v25-04-25.pdf
AOK SAA(30W-300W)_Solar Street Light_Installation Guide_V24-09-02.pdf
Parameter Table
Electrical Data | |||||||
Model | AOK-120WSAA | AOK-150WSAA | AOK-180WSAA | AOK-200WSAA | AOK-240WSAA | AOK-300WSAA | |
Power | 120W | 150W | 180W | 200W | 240W | 300W | |
Control Option | Photocell sensor, Timing, dimming, intelligent power saving, microwave sensor or PIR sensor. | ||||||
Grid Hybrid Power Solution(optional) Driver | Inventronics/Moso | - | |||||
Work Mode | 4H-Detected 100%, None 30% ;3H-Detected 70%, None 30% ;3H-Detected 50%, None 20%; 4H-Detected 30%, None 10% | ||||||
Photometric Data | |||||||
LED Model | 5050, custom on request | ||||||
Lens | Polycarbonate | ||||||
Efficacy (lm/W, Std. Dev. ±5%)@5700K, Ra70 | 5050 | 220lm/W | 220lm/W | 220lm/W | 220lm/W | 220lm/W | 220lm/W |
Luminous Flux (lm, Std. Dev. ±5%)@5700K, Ra70 | 5050 | 26400lm | 33000lm | 39600lm | 44000lm | 52800lm | 66000lm |
ULOR | = 0%, @ Luminaire inclination 0° | ||||||
CCT | 3000K, 4000K, 5000K, 5700K, 6500K | ||||||
CRI | 70Ra/80Ra optional | ||||||
Beam Angle | T203(65°*150°) / T212(75°*165°) / T304(75°*160°) / T402(80°*150°) / T502(150°*150°) | ||||||
Mechanical Data | |||||||
IP Rating | IP65, according to standard EN 60529 | ||||||
Housing | Alluminum+SPCC | ||||||
Surface Treatment | Anti-UV thermosetting polyester / 80 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments). | ||||||
Painting | Black, custom color on request, C5-grade painting. | ||||||
Mounting | Post Top | ||||||
Configuration Data | |||||||
Photovoltaic Panel | Single side monocrystalline solar panel | ||||||
Solar Panel Voltage(W) | 36V 150W | 36V 180W | 36V 200W | 36V 240W | 36V 300W | 36V 360W | |
Battery Voltage(AH) | 25.6V 45AH | 25.6V 45AH | 25.6V 60AH | 25.6V 60AH | 25.6V 75AH | 25.6V 90AH | |
Li-ion Battery(WH) | 1152WH | 1152WH | 1536WH | 1536WH | 1920WH | 2304WH | |
Charing Time | 8.08Hrs | 6.06Hrs | 8.08Hrs | 6.74Hrs | 6.74Hrs | 6.74Hrs | |
Run Time(@full power) | 8.64Hrs | 6.91Hrs | 7.68Hrs | 6.91Hrs | 7.2Hrs | 6.91Hrs | |
Battery Lifespan | >2000 times cycle | ||||||
Ambient Temperature | -10°C to 50°C (14°F to 122°F) | ||||||
Storage Temperature | -20°C to 45°C (-4°F to 113°F) | ||||||
Control System | MPPT/PWM optional, custom IOT or remote control on request | ||||||
Maximum Autonomy | Operate 2~3 rainy days under intelligent model. | ||||||
Others | |||||||
Lifespan | L90B10 - 100000 hrs, @Tq 25°C | ||||||
Warranty | 3 years as standard (Warranty extension to 5 years on request) | ||||||
Certification | Please consult for certification | ||||||

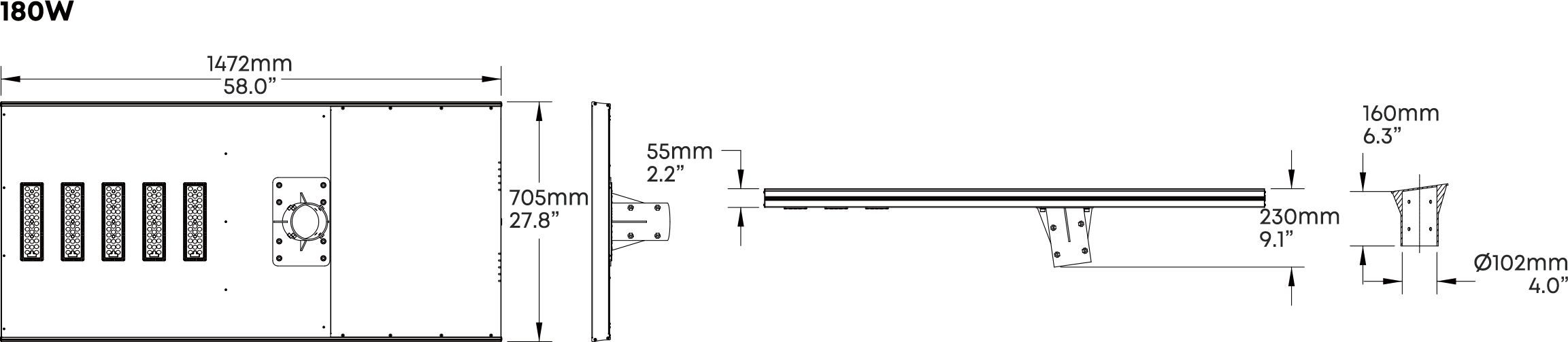

Product Size | 1391*525*55mm 54.8*20.7*2.2 in | 1385*705*55mm 54.5*27.8*2.2 in | 1472*705*55mm 58.0*27.8*2.2 in | 1617*765*55mm 63.7*30.1*2.2 in | 1647*955*55mm 64.8*37.6*2.2 in | 1847*955*55mm 72.7*37.6*2.2 in | |
Carton Size | 1635*615*140mm 64.4*24.2*5.5 in | 1575*790*140mm 62.0*31.1*5.5 in | 1632*790*140mm 64.3*31.1*5.5 in | 1807*790*140mm 67.6*31.1*5.5 in | 1837*1040*140mm 73.3*33.5*5.5 in | 2092*1040*140mm 82.4*40.9*5.5 in | |
Net Weight | 24.6 kg/54.2 lbs | 30.5 kg/67.2 lbs | 36.2 kg/79.7 lbs | 37.6 kg/82.8 lbs | 43.5 kg/95.8 lbs | 49.6 kg/109.3 lbs | |
Gross Weight | 27.5 kg/60.6 lbs | 33.6kg / 74.1 lbs | 39.2kg / 86.3 lbs | 43.5kg / 95.8 lbs | 47 kg/103.6 lbs | 53.2 kg/117.3 lbs | |
Recommend Installation Height | 8-12m | 8-12m | 8-12m | 10-12m | 10-12m | 10-12m | |
Application Field | Road & street, residential area, garden, parks, parking lot, industrial and commercial parks, railway & station side, riverside & jogging track | ||||||
Storage Instruction | For long-term storage, it is advisable to charge 30% for the battery, then discharge it for 2 to 3 hours. This should be done every 3 months to prevent battery damage and extend the battery lifespan. | ||||||
Important Note! | The provided information is solely for reference; the official measurement report holds higher authority. |
