25W SE All-in-One Solar Street Light

Rotatable LED Module SE Series High-Performance Bifacial Solar Panel Professional-All-in-One-Solar-Street-Light Up to 200lm/W
Availability:
Quantity:
  • AOK-25WsE

  • AOK

  • 9405409000

PRODUCT OVERVIEW

Looking for a reliable 25W-all-in-one-solar-street-light company with a professional design, AOK SE Series all-in-one solar street light is the best option. Featuring a rotatable LED module and a high-performance bifacial solar panel, this solar street light boasts an impressive efficiency of up to 200lm/W. Its low-profile design includes a PIR/microwave motion sensor and smart controller, all built in for added convenience. The bifacial solar panel design makes it suitable for remote regions and non-electricity supply zones. Plus, its deep cycle battery can charge and discharge over 2000 times, ensuring reliable performance over the long term. With an operating time of 5-7 days even under rainy conditions in the intelligent mode, AOK all-in-one solar street light is the perfect energy-saving solution for your outdoor lighting needs. Choose our SE bifacial solar panel 25W-all-in-one-solar-street-light for a reliable and efficient lighting solution.


FEATURES


1- Easy battery replacement design, can be renewed for 7 years.

2- Ultra-high light efficiency, 10 watts equivalent to 20 watts of others at least.

3- Bilateral solar panels, the overall conversion efficiency is increased by 30%.

4- Unique anti-theft technology on battery door.

5- Rotatable LED module, worry-free installation, best solar panel angle adapt to the sun.

6- The various installation methods suit for any application likes light poles, wall surface and etc.

7- From 10 to 60 watts, can replace the traditional 35-240 watts, meeting all road application conditions.

8- Customizable optical road lighting designs, adapt to various road conditions but no waste of light.


LED CHIP

Seoul 5050 LED chip creates a first-class light source. By choosing it, single lumen efficacy >200lm/W, with the aluminum lamp base and sealed lens, with its excellent heat dissipation, it is as if the LED chip has been placed in a sealed unit. Thus it maintains high brightness levels with very little fading. The sealed lenses are made of strong UV-protected PC and are aging and shock-resistant; The well-optimized light distribution makes for a more uniform and wider lighting area.


MOUNTING/ACCESSORIES

●Universal/Wall mount/Round pole/Square pole

●Intelligent APP control,IOT Management,AC & DC complementary


RECOMMENDED USE


● Road lighting

●Area lighting

● Perimeter lighting


WARRANTY

3 years (Warranty extension up to 5 years on request)


CERTIFICATION/LISTING

UL/ CUL  FCC SAA RCM CE RoHS, the company is ISO 9001 and ISO 14001 certified,For other certificates please request


Mobile Bluetooth APP

● Multiple lighting modes can be programmed remotely by Mobile Bluetooth APP Solar Street light with inbuilt Bluetooth for health monitoring with APP.


Smart Lighting Control System

●The system can pre-set one or more lighting modes according to different time of day and traffic flow, automatically turn on or off any lamp, and adjust the switching time and illumination according to environmental requirements to achieve the purpose of energy saving and consumption reduction.



Technical Specification

● Operating time: 15 hours full power, intelligent mode 5-7 days.

● Input Voltage: 12-24V constant voltage.

● Control Mode:Light Control + Motion Sensor/Time Control/PIR Built In.

● Working Mode: 30% of intensity at first 4 hrs, 100% bright when people or car pass by, then rest of time 30% of intensity, and 70% of intensity when people pass by.

● Housing: Die-Casting Aluminum, Anti-Corrosion.

● Life Hours: >100,000 hours.

● 3000K/4000K/5000K/5700K/6500K available. CRI: 70/80

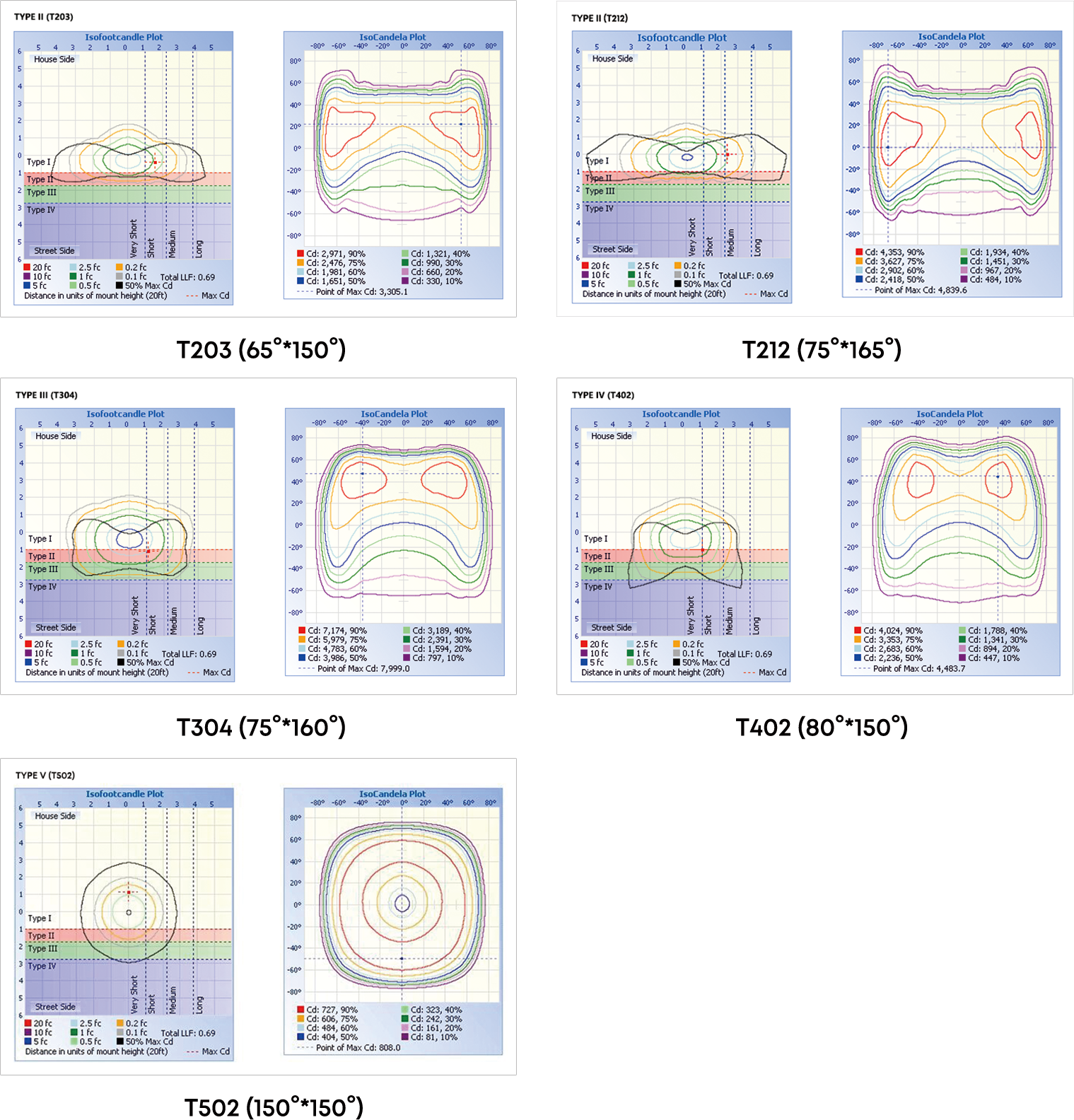

Distribution Diagram

sE-T203sE-T304

sE-T402

Electrical Data
Model AOK-10WsE AOK-20WsE AOK-30WsE AOK-40WsE AOK-50WsE AOK-60WsE
Power(W) 10W/15W 20W/25W 30W/35W 40W/45W 50W 60W
Input voltage 12V DC
Control Option Photocell sensor, timing, dimming, intelligent power saving, microwave sensor. LoRa, 4G, Zigbee, Smart Lighting Control optional.
Photometric Data
LED Manufacturer Seoul
LED model Seoul 5050
Lens Polycarbonate
Efficacy (lm/W, Std. Dev. ±3%)@CCT=5700K, CRI>70Ra 200lm/W 190lm/W 196lm/W 192lm/W 192lm/W 190lm/W
Luminous flux (lm, Std. Dev. ±3%)@CCT=5700K, CRI>70Ra 2000lm 3800lm 5880lm 7680lm 9600lm 11400lm
ULOR = 0%, @ Luminaire inclination 0°
CCT 3000K, 4000K, 5000K, 5700K, 6500K
CRI 70Ra, 80Ra, 90Ra optional
Beam angle T2(60°*156°)/T3(75°*160°)/T4(78°*153°)
Mechanical Data
IP Rating IP65, according to standard EN 60529
SCx Front: 0.3465 m²;
Front-side: 0.0535 m²;
Side: 0.0622 m²;
Front: 0.3465 m²;
Front-side: 0.0535 m²;
Side: 0.0622 m²;
Front: 0.4143 m²;
Front-side: 0.0535 m²;
Side: 0.0669 m²;
Front: 0.4831 m²;
Front-side: 0.0535 m²;
Side: 0.0706 m²;
Front: 0.5537 m²;
Front-side: 0.0535 m²;
Side: 0.0743 m²;
Front: 0.6215 m²;
Front-side: 0.0535 m²;
Side: 0.0790 m²;
Housing Heavy-duty die-cast aluminum (EN AC-46100)
Surface treatment Anti-UV thermosetting polyester / 80 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments).
Painting Black, Custom request
Mounting Universal/Wall mount/Round pole/Square pole
Solar Panel Data
Photovoltaic panel Double crystal photovoltaic panel
Solar Panel 18V/30W 18V/40W 18V/50W 18V/60W 18V/70W 18V/80W
Li-ion Battery 153.6WH 230.4WH 307.2WH 384.0WH 460.8WH 537.6WH
12.8V12AH 12.8V18AH 12.8V24AH 12.8V30AH 12.8V36AH 12.8V42AH
Charing Time 5.12Hrs 5.76Hrs 6.14Hrs 6.40Hrs 6.58Hrs 6.72Hrs
Battery lifespan >2000 times cycle
Run Time(@full power) 15hrs / 10hrs 11.5hrs / 9hrs 10hrs / 8.5hrs 9.5hrs / 8.5hrs 9hrs 9hrs
Ambient Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -20°C to 45°C (-4°F to 113°F)
Charing Temperature -0°C to 45°C (32°F  to 113°F)
Control system PWM /  IoT, Complementary solution, MPPT optional
Maximum Autonomy Operate 5~7 rainy days under intelligent model.
Others
Lifespan L90B10 > 100000hrs, @Ta 25°C
Warranty 3 years (Warranty extension up to 5 years on request)
Certification UL/ CUL  FCC SAA RCM CE RoHS, the company is ISO 9001 and ISO 14001 certified,For other certificates please request
Product Size 633*365.5*211.4mm 793*365.5*211.4mm 948*365.5*211.4mm 1103*365.5*211.4mm 1263*365.5*211.4mm 1418*365.5*211.4mm
Net Weight 11.49kg 12.86kg 14.89kg 16.5kg 17.61kg 19.66kg
Carton Size 860*210*440mm 1020*210*440mm 1175*210*440mm 1330*210*440mm 1490*210*440mm 1645*210*440mm
Gross Weight 14.5kg 15.86kg 17.97kg 19.6kg 21.49kg 22.44kg
Recommend  installation height 3-6m 5-7m 5-8m 6-9m 6-10m 7-12m
Application field Urban and rural street
