AOK-300WiLH
AOK
##
Illuminate roads with confidence using the ILH Series—a robust, high-efficiency street lighting solution ranging from 20W to 300W. Designed in line with Zhaga and NEMA standards, this powerful fixture delivers exceptional brightness, energy savings, and durability, making it ideal for highways, roadways, and various outdoor applications.
✔ High Efficacy Output:
Delivers up to 185 lm/W for powerful, energy-efficient illumination tailored for roads and highways.
✔ Flexible LED Compatibility:
Supports a range of LED configurations (2835, 3030, 5050) for customized lighting performance.
✔ Premium Driver Options:
Equipped with high-reliability drivers from Moso, Inventronics, Sosen, Philips, OSRAM, and uPowerTek, with both Class I and Class II configurations.
✔ Smart Control Ready:
Offers advanced dimming and control options, including DALI, 1- 10V, PWM, and timer dimming for intelligent lighting management.
✔ Surge Protection:
Optional SPD available in 10kV and 20kV ratings to safeguard the fixture against electrical fluctuations.
✔ Strong Vibration Resistance:
3G-rated to endure tough environments, meeting IEC 68-2-6 standards.
✔ Optimized Thermal Management:
Fin-style housing design enables excellent heat dissipation, extending operational lifespan.
✔ Rugged Protection:
Rated IP66 for superior water and dust resistance, and IK08 for impact resistance, in compliance with EN 60529 and EN 62262.
✔ Mounting Flexibility:

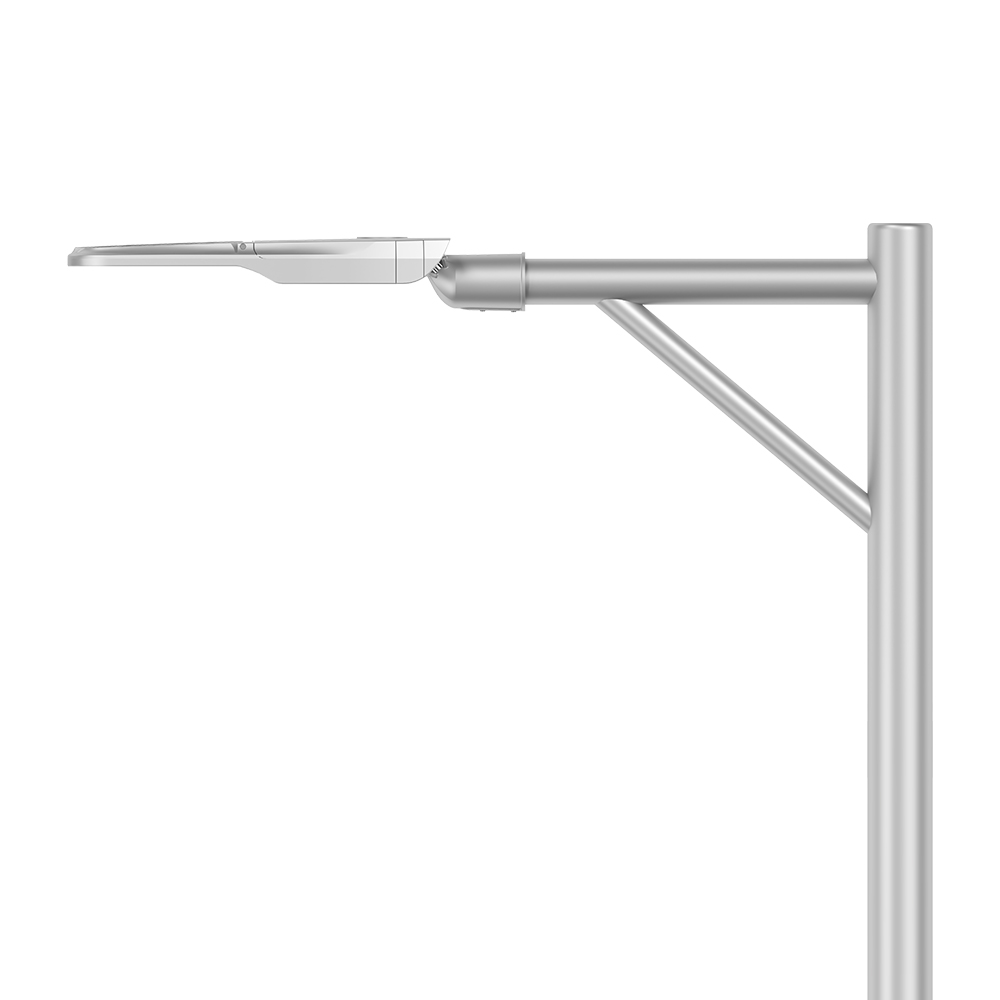

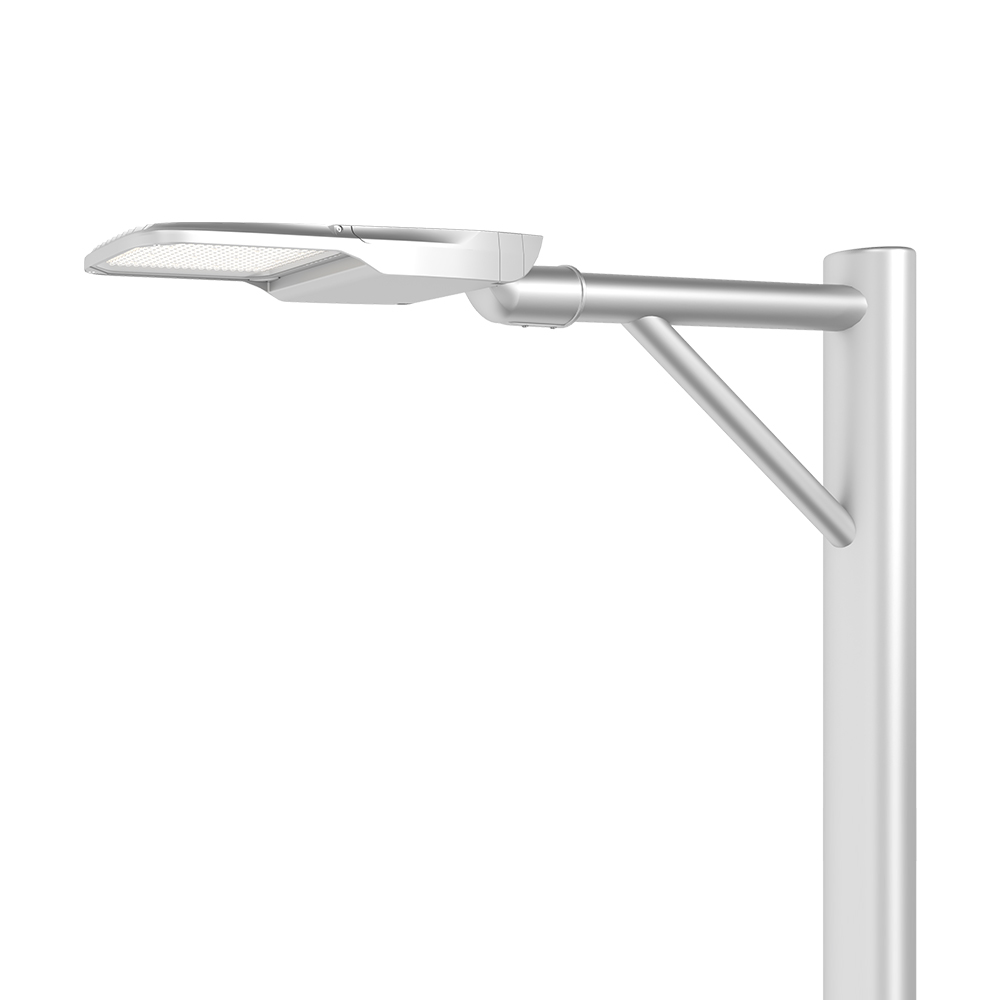

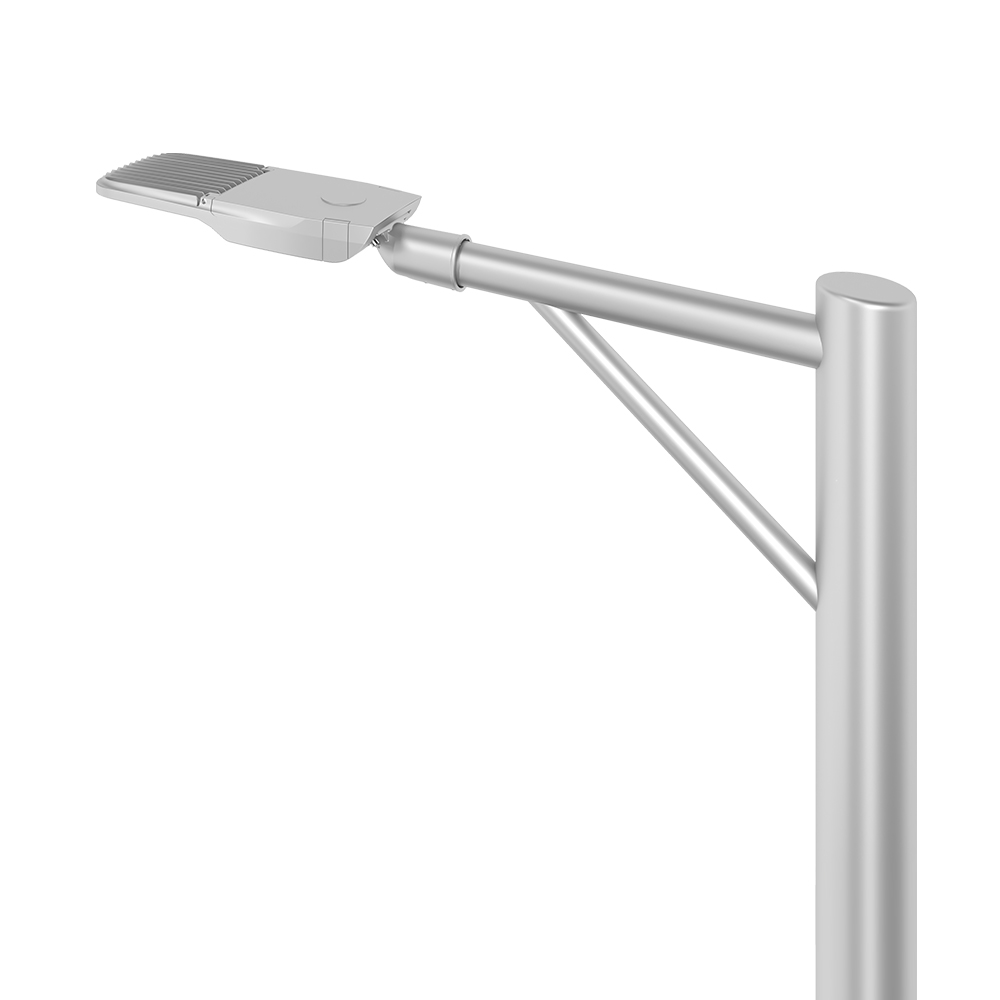

Side-entry installation compatible with pole diameters ranging from Φ42mm to 60mm for adaptable placement.
✔ Extended Lifespan:
Built to last with an L70 rating of over 100,000 hours at 25°C ambient temperature.
✔ Customizable Accessories:
Enhance functionality with optional add-ons including SPD 10kV/20kV, breather vent, NEMA socket, Zhaga socket, photocell, PIR, or microwave sensors.
· Highways: Enhances safety and visibility on major thoroughfares.
· Roadways: Delivers consistent lighting for both urban and rural roads.
· Public Areas: Ideal for parks, squares, and other shared spaces.
· Commercial Zones: Improves illumination around retail and business centers.
· 5-year standard warranty, 10-year warranty optional. Please consult with AOK sales for detailed agreement.
· CE Certified — For full documentation, please contact our sales team.
