AOK-300WoT
AOK
9405409000

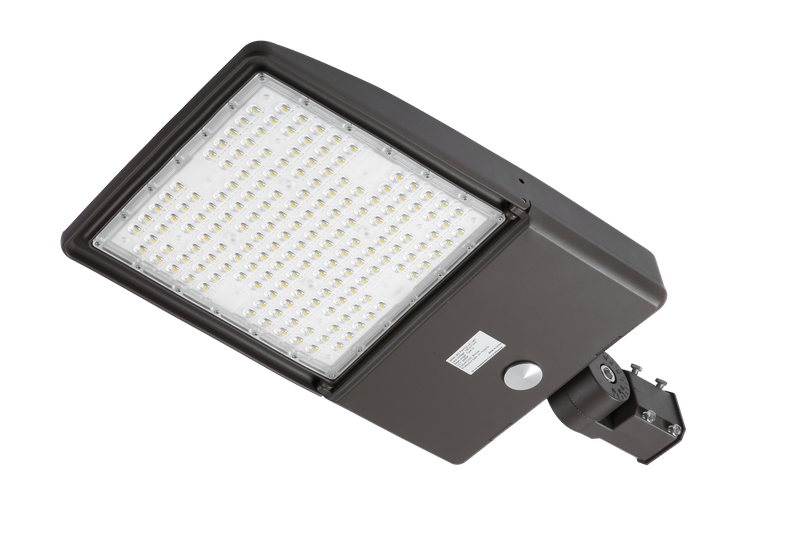

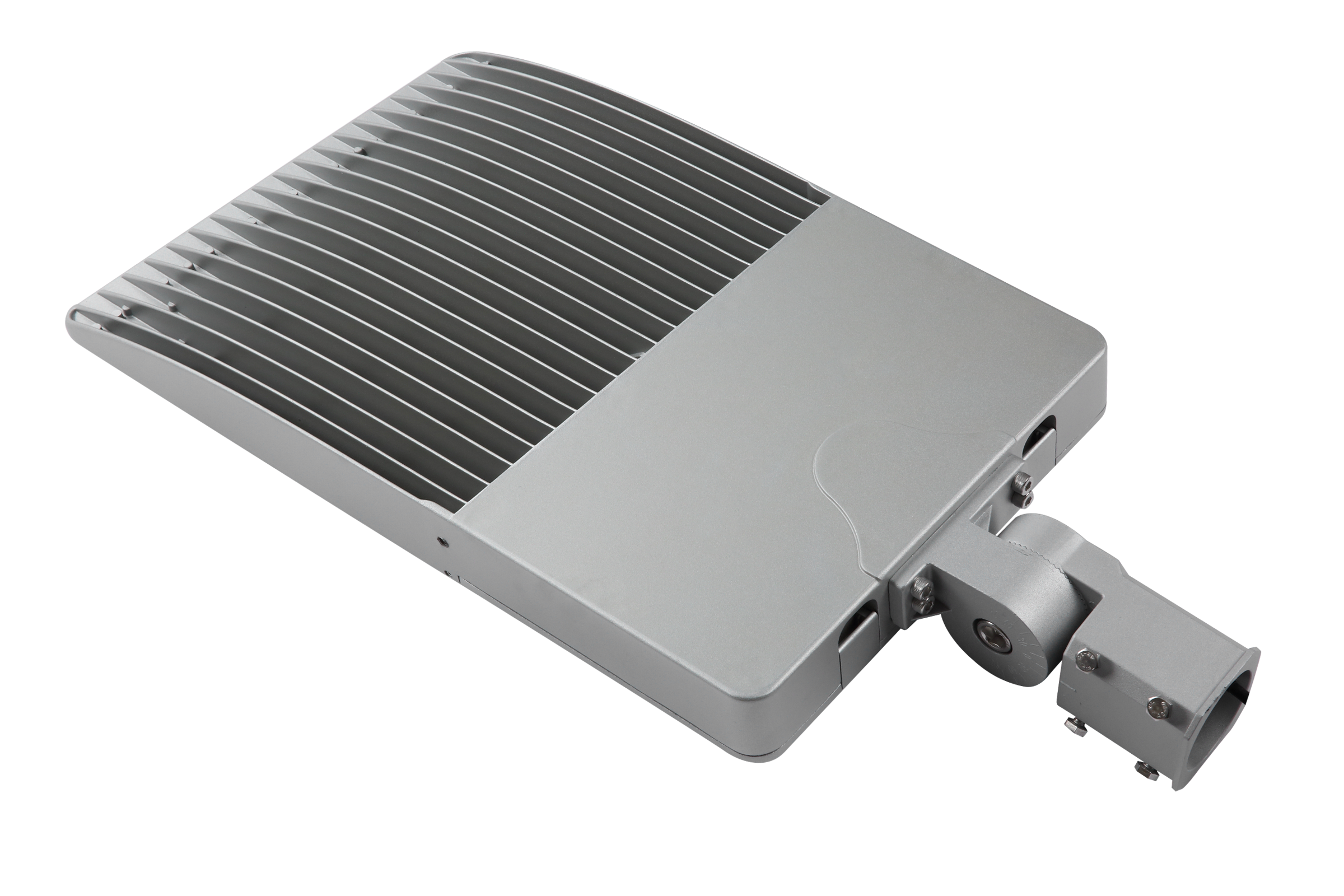

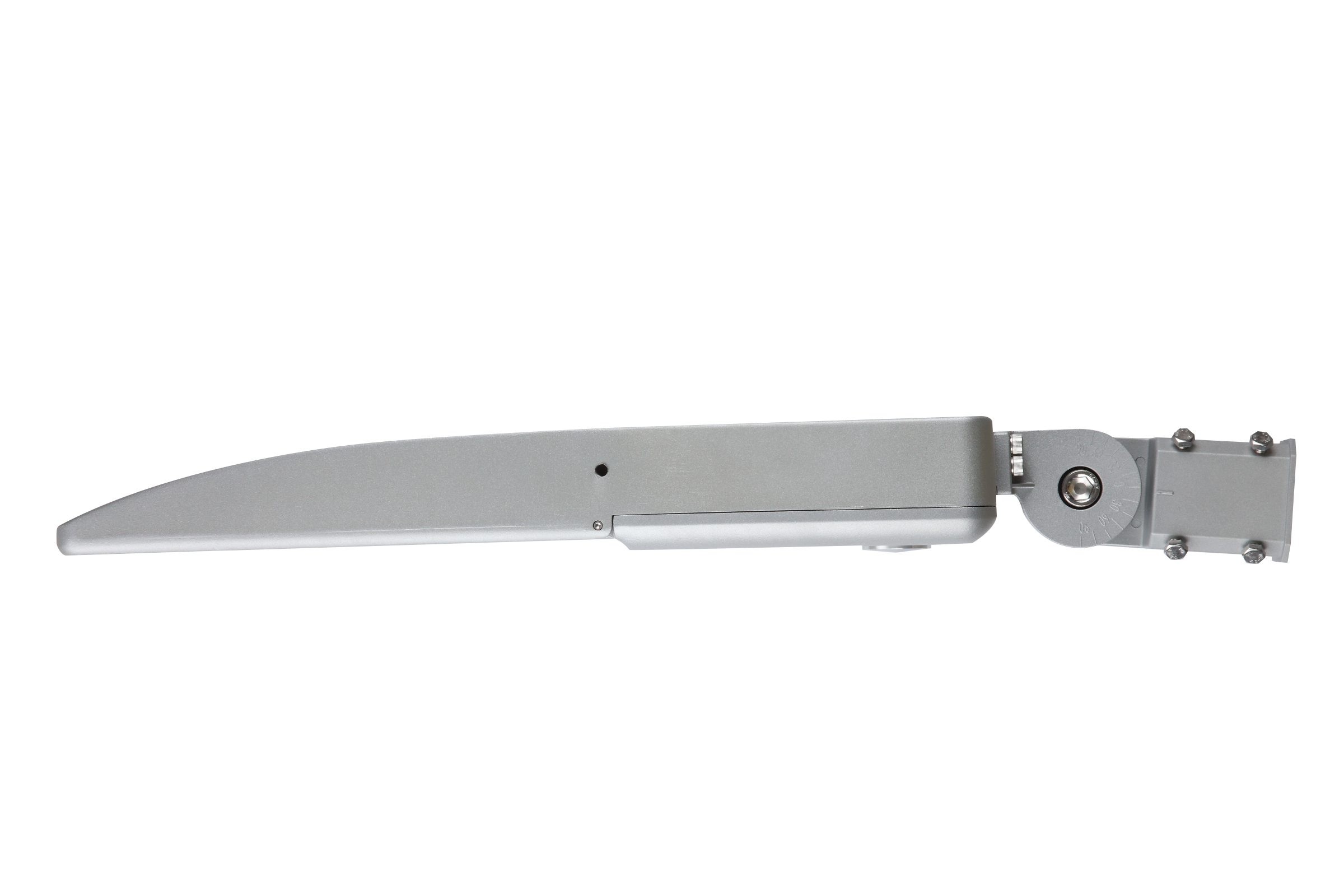

Upgrade outdoor area lighting with professional 300W LED parking-lot light shoebox AOK OT series, achieving up to 175lm/W high-efficiency and quality luminaire systems. Enhance your commercial or industrial lighting with AOK 300W parking lot and area lighting solutions. As a leading LED lighting provider, AOK offers the OT Series, which includes area lights, shoebox lights, street lights, and LED sports lights. Delivering up to 175lm/W, these fixtures offer bright illumination, cool operating temperatures, and extended lifespans. The die-cast aluminum alloy housing with external fins ensures superior heat dissipation and corrosion resistance. Ideal for parking lots or tennis courts, the OT Series provides durable, energy-efficient, and high-quality lighting solutions.
Our fixtures are expertly designed for parking lots, streets, and tennis courts, featuring professional light distribution and anti-glare technology. With a BUG Rating of U=0, they minimize light pollution while maximizing illumination efficiency. The rotatable optics offer flexible light distribution, and an optional low-glare shield further reduces glare. These features make the OT Series perfect for achieving high-quality, efficient lighting in any outdoor space.
✔ Standard universal voltage (100-277V AC), with 50/60Hz; 347-480V option
✔ L90B10 rating: Over 100,000 hours at 25°C
✔ Dimming options: 0-10V, PWM, Timer with 3 modes, Dim-to-Off with standby power ≤0.5W
✔ High-efficiency driver: Up to 93.5%, minimum 87.5%
✔ Surge protection: 6kV line-line, 10kV line-earth
✔ Options available for photocell, PIR sensor, and 20kV SPD
✔ Operating temperature range: -40°C to 50°C (-40°F to 122°F)
✔ Efficient heat dissipation layer
✔ LED light source on PCB board
✔ Die-cast aluminum main housing, IP66 rated
✔ Space for 5/7-pin receptacle, compatible with photocell sensors and smart systems
✔ Tool-free access panel for driver maintenance
✔ Rotatable optical-grade PC lenses available in Type III/IV/V
✔ Top-level 1-10V dimmable driver, with 347-480V option
✔ Tool-free driver access panel, compatible with Watt Stopper FSP sensor
✔ Built-in surge protection device
✔ Bracket access panel for wiring
✔ Exchangeable brackets for round/square poles, with optional yoke and trunnion brackets
TYPE A-G Brackets, Sensor, Photocell, PIR, SPD, Visor optional.
Street & Highway
Parking Lot & Garage
Billboard Lighting
Airport
5-year standard warranty, 10-year warranty optional. Please consult with AOK sales for detailed agreement.
UL/cULus/FCC/CE/ENEC/SAA/RoHS
