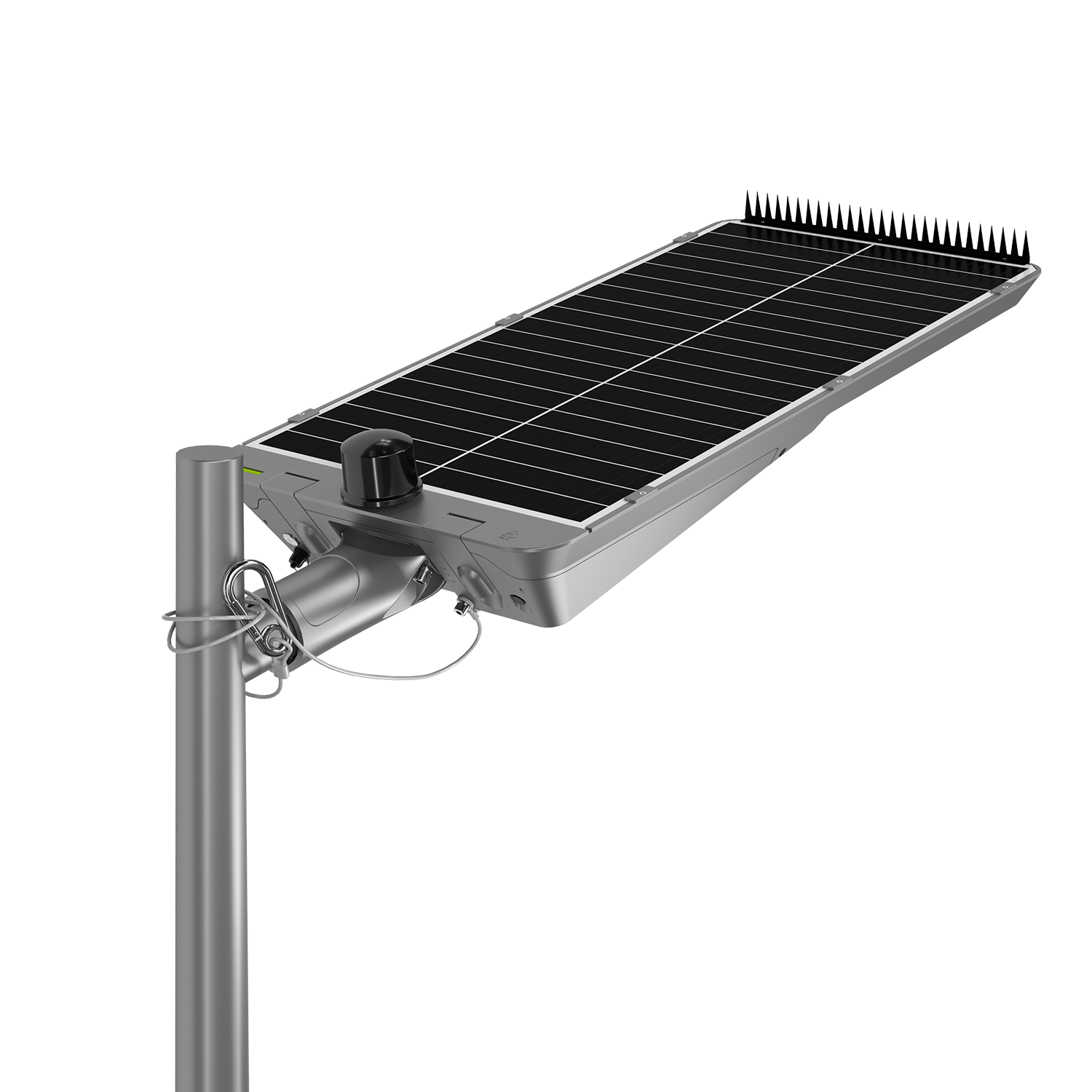

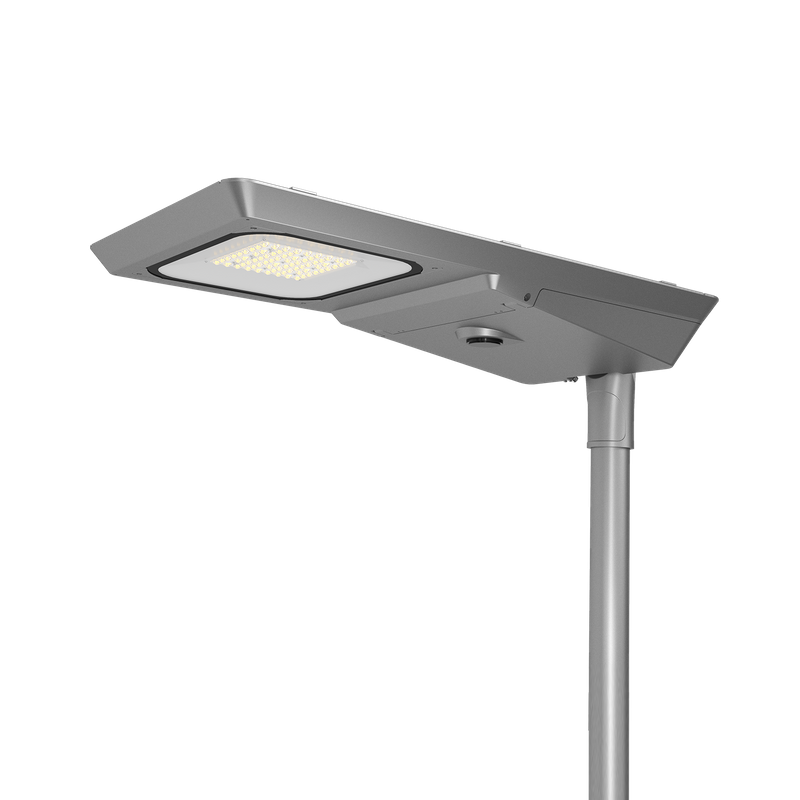

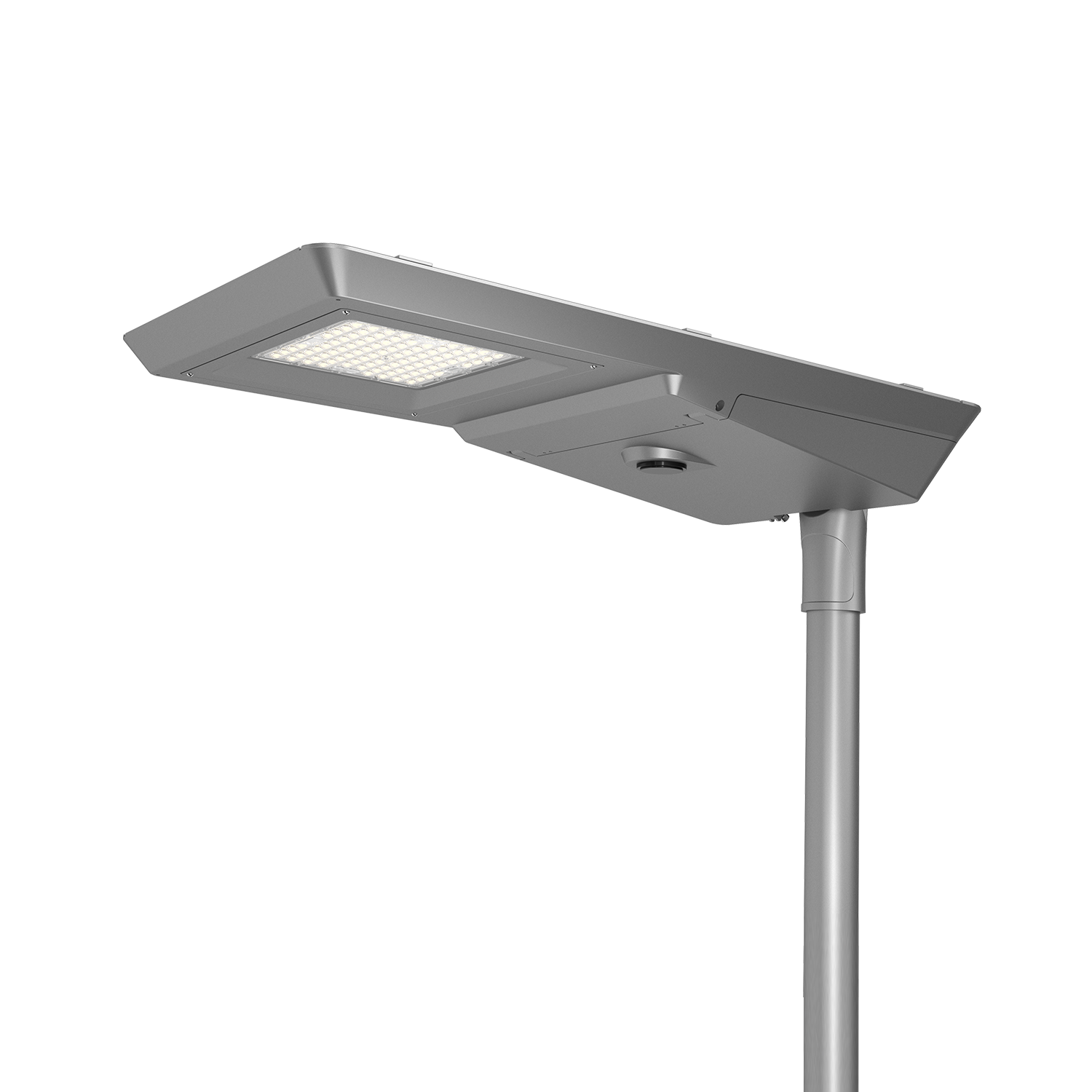

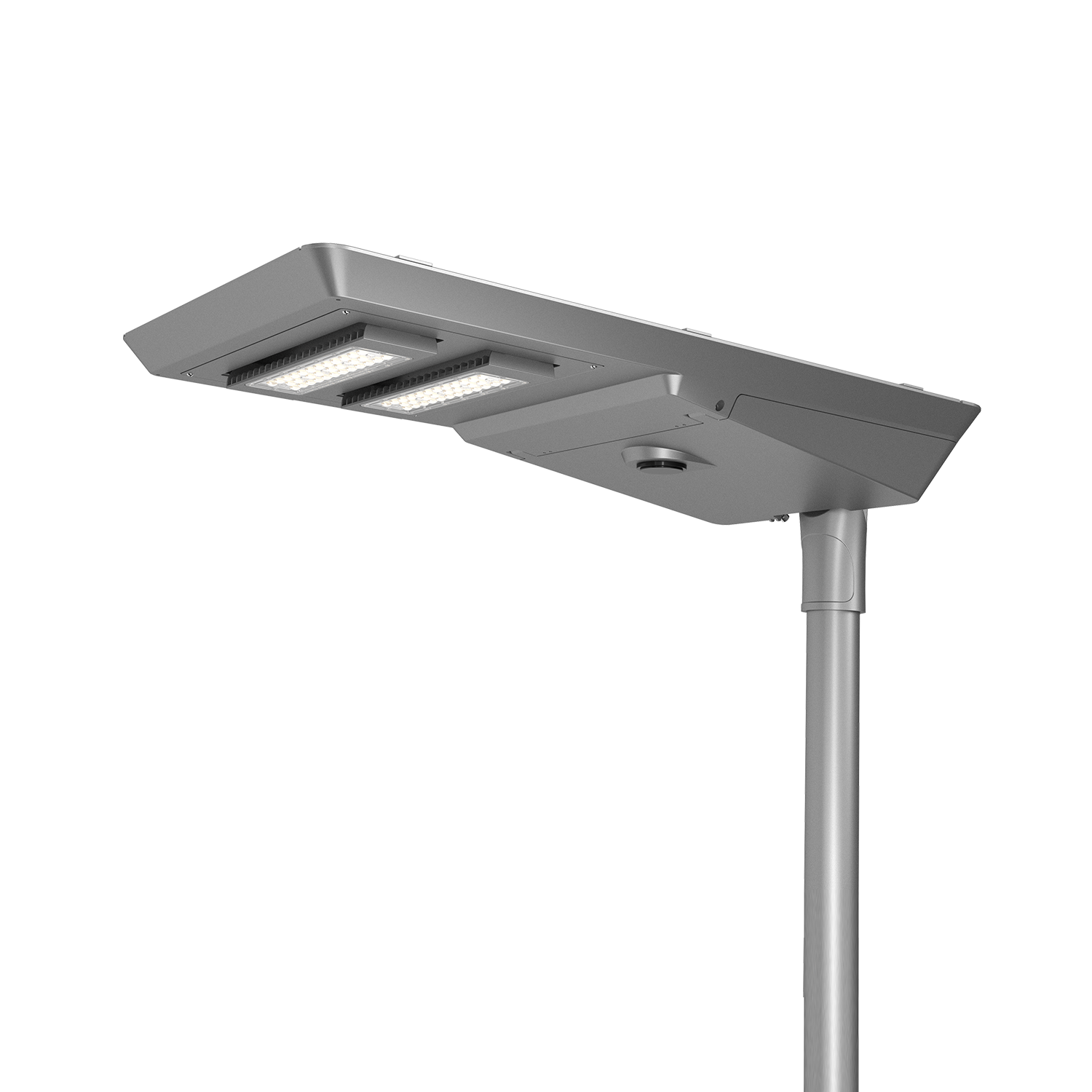

30W All-in-One Solar Powered Street Light-SAF

LED EFFICACY: up to 200lm/W
SOLAR PANEL: Monocrystalline
KELVIN OPTIONS: 3000K-6500K
WATERPROOF: IP66
DISTRIBUTION: Standard (PC+ Glass Solution): T252 (85*160º)/T312 (85*155º)/T502 (150*150º)
Option 1 (PC Lens Solution ): T302 (80*155°)/T402 (90*150°)/T502 (160°)
Option 2 (PC Lens Solution-Adjustable Module ): T203(65°*150°) / T212(75°*165°) / T304(75°*160°) / T402(80°*150°) / T502(150°*150°)
CONTROLLER: MPPT, IoT supported
WARRENTY: 3 years standard, 5 years optional
CERTIFICATION: CE/FCC/RoHs,For other certificates please request
Availability:
Quantity:
  • AOK-SAF30

  • AOK

  • ##

Top 30W All-in-One LED Solar Powered Street Light, Check Out the AOK SAF Series for Street, Highway, Roadway, Courtyard, and Pathway Green Energy Lighting. The AOK-SAF series 30W LED solar street light is an efficient, eco-friendly, and cost-effective outdoor lighting solution ideal for city streets, rural roads, parking lots, parks, and gardens. Utilizing advanced solar technology, it converts sunlight into electricity for automatic lighting without a grid connection or through a hybrid grid-powered solution, thereby saving on electricity costs and reducing carbon emissions.


Technical Specifications


Power: 30W

Solar Panel Type: Monocrystalline silicon

Battery Type: Lithium battery

LED Light Source: High-brightness LED up to 200lm/W

Color Temperature: 3000K-6500K (optional)

Protection Level: IP66

Lighting Time @full power: 5-14 hours on a full charge

Charging Time: 4-13 hours (under sufficient sunlight)

Operating Temperature: -10°C to 50°C (14°F to 122°F)

Storage Temperature: -20°C to 45°C (-4°F to 113°F)


Main Features


  √ High-Efficiency Solar Panel: Utilizes high-efficiency polycrystalline silicon solar panels with a conversion efficiency of over 20%, ensuring effective charging even on cloudy days.

  √ Intelligent Control System: Built-in intelligent controller supports both light and time control modes, automatically adjusting brightness based on ambient light intensity and turning the light on or off according to preset periods.

  √ Long-Life Lithium Battery: Equipped with a high-capacity lithium battery with over 2000 charge and discharge cycles, offering a long lifespan and stable performance, ensuring continuous lighting throughout the night.

  √ High-Brightness LED Light Source: Features high-brightness LED chips with high luminous efficiency, wide lighting range, and selectable color temperature to meet various lighting needs.

  √ Waterproof and Dustproof Design: The lamp housing is designed with IP65-level waterproof and dustproof protection, ensuring stable operation in all harsh weather conditions.

  √ Easy Installation: No complicated wiring is required; simply fix the lamp, making installation quick and easy, saving labor and installation costs.

  √ Eco-Friendly and Energy-Saving: Fully solar-powered, requiring no grid electricity, zero electricity bills, and zero emissions, truly achieving green and sustainable lighting.


Application Scenarios


  ※ City Streets: Enhances nighttime driving safety and reduces municipal electricity expenses.

  ※ Rural Roads: Improves rural lighting conditions and promotes rural development.

  ※ Parking Lots: Provides a safe parking environment for vehicles.

  ※ Parks and Gardens: Beautifies the environment and enhances nighttime landscape effects.

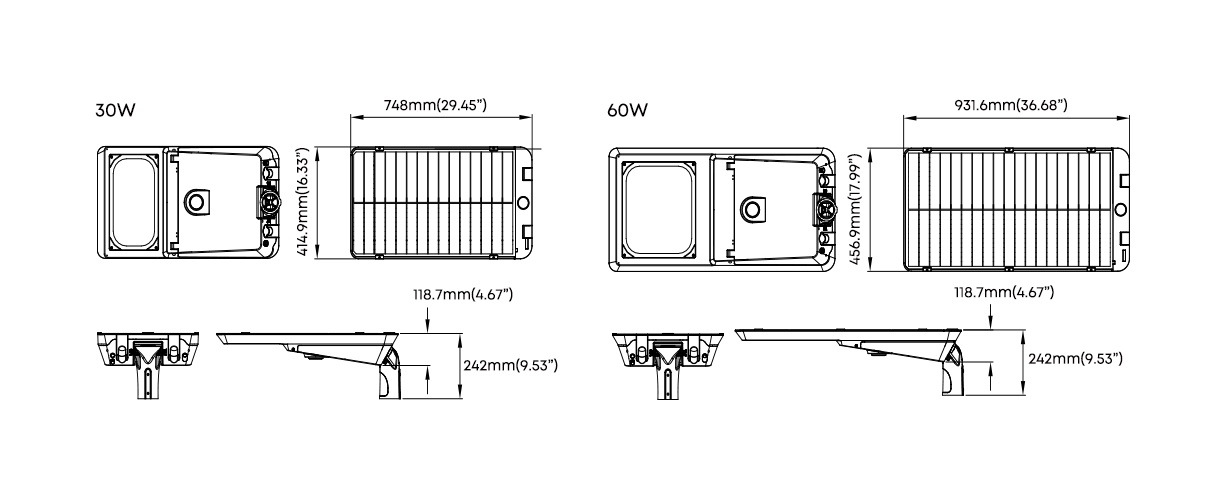

Dimensions

SAF-尺寸图-(30-60W)





Parameter Table


Specification
Model AOK-30WSAF-L AOK-30WSAF-M AOK-30WSAF-H AOK-60WSAF-L AOK-60WSAF-M AOK-60WSAF-H
Power 30W 30W 30W 60W 60W 60W
Control Option Photocell ,Dimming,sensor, Zhaga Zigbee iot/4G iot
Grid Hybrid Power Solution(optional)
Driver
Inventronics/MOSO
Work Mode 2H-Detected 100%, None 30% ;3H-Detected 70%, None 30% ;3H-Detected 50%, None 20%; 4H-Detected 30%, None 10%
Photometric Data
LED Manufacturer A 5050
Lens Standard: PC+glass; Optionl: PC
Efficacy(lm/w) 200lm/W 200lm/W 200lm/W 200lm/W 200lm/W 200lm/W
Luminous Flux(lm) 6000lm 6000lm 6000lm 12000lm 12000lm 12000lm
ULOR = 0%, @ Luminaire inclination 0°
CCT 3000K, 4000K, 5000K, 5700K, 6500K
CRI 70Ra
Beam Angle Standard (PC+ Glass Solution): T252 (85*160º)/T312 (85*155º)/T502 (150*150º)
Option 1 (PC Lens Solution ): T302 (80*155°)/T402 (90*150°)/T502 (160°)
Option 2 (PC Lens Solution-Adjustable Module ): T203(65°*150°) / T212(75°*165°) / T304(75°*160°) / T402(80°*150°) / T502(150°*150°)
Mechanical Data
IP Rating IP66
IK Rating IK08/IK09
Housing Die-casting aluminum ADC12
Painting Gray, Silver,Custom request
Bracket Adjustable from -15° to +15°, 5 ° per, Side and horizontal mounting up to 90°
Mounting Post top, side entry,Suitable for lamp post diameter Ø 60mm , depth 120mm
Configuration Data
Solar Panel Type single side monocrystalline solar panel
Solar Panel Voltage(W) 18V 45W 18V 45W 18V 45W 18V 75W 18V 75W 18V 75W
LiFePO4 Battery Capacity(AH) 12.8V 15AH 12.8V 30AH 12.8V 45AH 12.8V 30AH 12.8V 60AH 12.8V 75AH
LiFePO4 Battery Capacity(WH) 192WH 384Wh 576Wh 384Wh 768Wh 960Wh
Charing Time 4.5Hrs 9.0Hrs 13.5Hrs 5.4Hrs 10.8Hrs 13.5Hrs
Run Time(@full power) 5.7hrs 11.5hrs 17.2hrs 5.7hrs 11.5hrs 14.4hrs
Battery Lifespan >2000 times cycle
Ambient Temperature -10°C to 50°C (14°F to 122°F) , -20°C to 60°C (-4°F to 140°F) optional
Storage Temperature -20°C to 45°C (-4°F to 113°F)
Control System MPPT/PWM/Hybrid optional, custom IOT or remote control on request
Maximum Autonomy 3-5 days 7-9 days 9-12 days 3-5 days 7-9 days 9-12 days
Others
Lifespan L90B10 - 100000 hrs, @Tq 25°C
Warranty 3 years as standard (Warranty extension to 5 years on request)
Certification CE/FCC/RoHs,For other certificates please request
Product Size 748*414.9*118.7mm (29.45*16.34*4.67") 931.6*456.9*118.7mm (36.68*17.99*4.67")
Net Weight 12.5kg 14.5kg 15.5kg 17kg 18kg 20kg
Carton Size 850*515*225mm (33.46*20.28*8.86") 1035*560*225mm (40.75*22.1*8.86")
Gross Weight 14.5kg 16.5kg 17.5kg 19.5kg 20.5kg 22.5kg
Recommend Installation Height 5-7m 5-7m 5-7m 6-8m 6-8m 6-8m
Accessories(standard) Microwave Sensor,Level Bubble,Charging Port,Switch,Breather Vent,Safety Rope
Accessories(optional) PIR Sensor,Iot-4G control,Hybrid Grid Power ,Bird Spike
Application Field Road & street, residential area, garden, parks, parking lot, industrial and commercial parks,
railway & station side, riverside & jogging track
Storage Instruction For long-term storage, it is advisable to first fully charge the battery, then discharge it for 2 to 3 hours.
This should be done every 3 months to prevent battery damage.
Important Note! The provided information is solely for reference; the official measurement report holds higher authority.

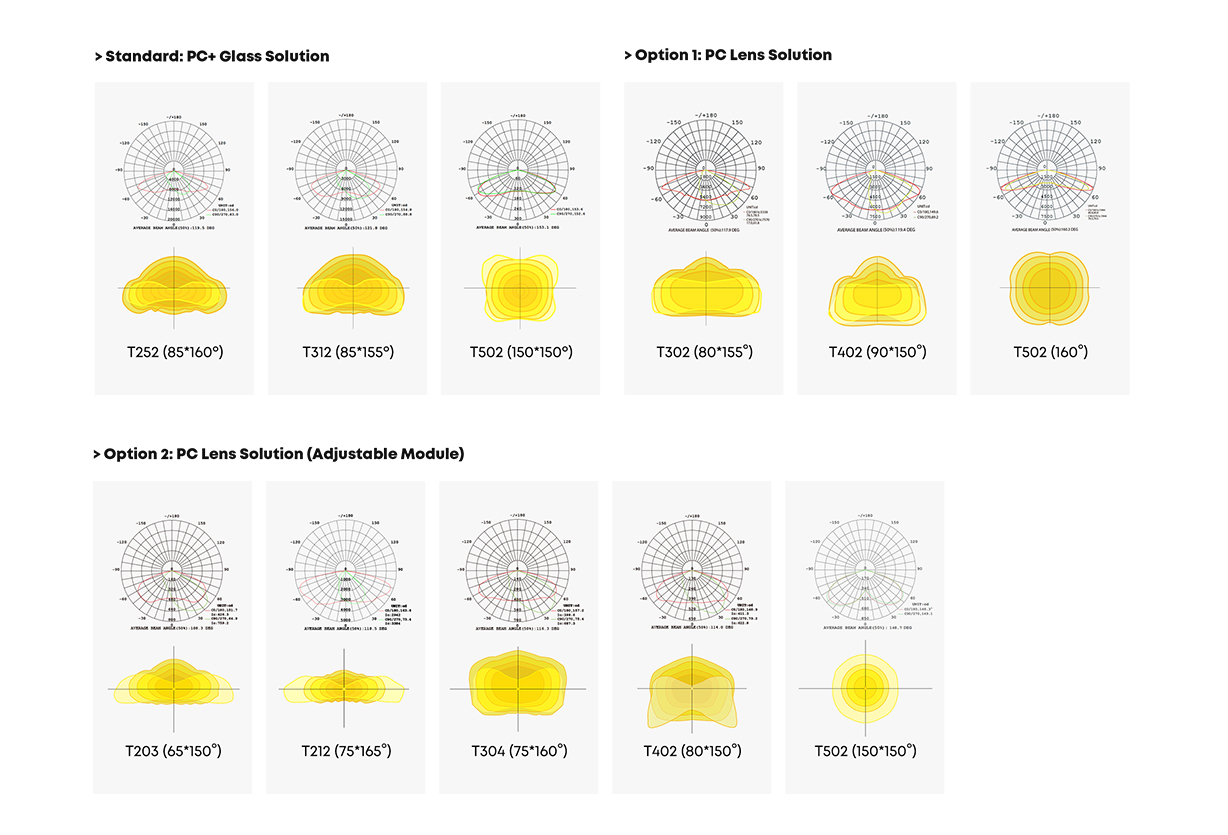

Illuminance Diagram


SAF-配光图
