400W-Sports Field Lighting-OF

✔ SYSTEM EFFICACY: up to 170lm/W
✔ IP & IK RATING: IP66/IK10
✔ DISTRIBUTION OPTIONS: 15D/30D/60D/90D
✔ LED Model: 3030/3535
✔ LIGHT CONTROL: Glare control, Custom visors for additional cutoff and spill light control
✔ HOUSING:Heavy-duty die-cast aluminum (EN AC-46100)
✔ WARRANTY: 5 years in standard, 10 years optional

Availability:

Quantity:



Inquire Add to Basket

Model:
AOK-400WoF
Brand:
AOK
Code:
##

LED Flood Light for Sports Fields OF Series

PRODUCT OVERVIEW

If you're looking for reliable and efficient sports lighting, check out the OFS series by AOK 400W LED sports arena lighting manufacturer. With a unique optical design, this high-output flood light reduces glare and provides exceptional performance. Available in various flood distributions, the OFS series is perfect for lighting large outdoor areas such as ski resorts, ball fields, loading bays, sea ports, football pitches, and rail centers. Buy the 400W LED sports arena lighting flood lighting to enhance your sports experience today!

CONSTRUCTION

• Heavy duty die-cast aluminum housing;

• Driver compartment can be either installed onto or separated from the light fixture;

• Light engine is thermally isolated from driver component;

• UV stabilized polyester powder paint finish;

• Horizontal and vertical aiming.

• Rugged, weather-tight design and 3G Vibration ratings ensure durability even in harsh environments.

OPTICAL/ELECTRIC

• Four distributions to maximize performance:15°, 30°, 60°, 90°;

• -40℃~50℃ operating temp range;

• 20KV surge protection device standard;

• 1-10V dimming driver standard;

• 100-277V operation 50/60HZ standard, 347-480V 50/60HZ optional.

• Moduel LED design, esay to replace and maintain.

MOUNTING/ACCESSORIES

Yoke mount, vertical and horizontal angle indicator available. Visor optional.

RECOMMENDED USE

• Truck loading bay

• Train Sation & Port

• Large outdoor industrial operation area

• Stadium

WARRANTY

5-year standard warranty, 10-year warranty optional. Please consult with AOK sales for detailed agreement.

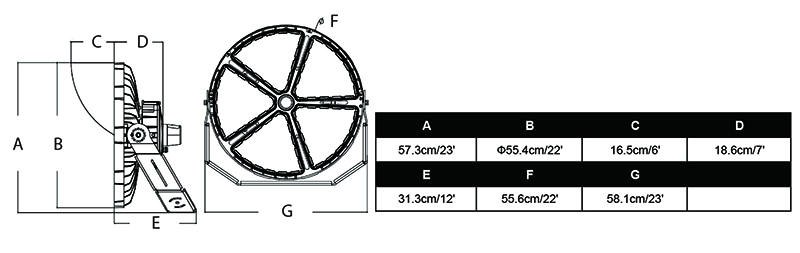

DIMENSION

ofs-02size

CERTIFICATION/LISTING

UL/cUL/FCC/SAA/CE/RoHS Listed

Electrical Specifications
Model		AOK-400WOF	AOK-460WOF	AOK-600WOF	AOK-750WOF	AOK-960WOF
Power(W)		400 W	460 W	600 W	750 W	960 W
Input Voltage		Normal Voltage=100-277VAC, High Voltage=277-480VAC, please read *Note-1 before choosing.
THD		<20%
PF		>0.90
UGR		<19
Control Option		DALI, 1-10V/ PWM / Timer dimming, Nema, Zhaga, Photocell.
Operating Temperature		-40°C to 50°C (-40 °F to 122 °F)
Driver Brand		Inventronic
Surge Protection		10kV / 20kV optional
Photometric Specifications
Efficacy(lm/W) (CRI 70Ra, 4000K) (Std. Dev ±5%)	15D	144 lm/W	140 lm/W	140 lm/W	143 lm/W	140 lm/W
	30D	166 lm/W	160 lm/W	160 lm/W	148 lm/W	145 lm/W
	60D	169 lm/W	160 lm/W	163 lm/W	150 lm/W	147 lm/W
	90D	166 lm/W	160 lm/W	160 lm/W	--	--
Luminous Flux (lm) (CRI 70Ra, 4000K) (Std. Dev ±5%)	15D	57600 lm	64400 lm	84000 lm	107250 lm	134400 lm
	30D	66400 lm	73600 lm	96000 lm	111000 lm	139200 lm
	60D	67600 lm	73600 lm	97800 lm	112500 lm	141120 lm
	90D	66400 lm	73600 lm	96000 lm	--	--
ULOR		= 0%, @ Luminaire inclination 0°
CCT		3000K, 4000K, 5000K, 5700K, 6500K
CRI		Ra70, Ra80, Ra90 optional
Beam Angle		15D/30D/60D/90D			15D/30D/60D
Mechanical Specifications
IP/IK		IP66/IK10, according to standard EN 60529 and EN 62262
Vibration Resistance		3G, conform to standard IEC 68-2-6.
SCx (EPA)		Front: 0.30658㎡ (3.29ft²) ; Side: 0.283354㎡ (3.04ft²)			Front: 0.265331㎡ (2.86ft²); Side: 0.255483㎡ (2.75ft²)
Housing/Materials		Heavy-duty die-cast aluminum (EN AC-46100)
Surface treatment		Anti-UV thermosetting polyester/80 micron epoxy primer, Anti-UV thermosetting polyester (for extremely corrosive environments).
Painting		Black, Customized color
Cable		Pre-wired with a 1.5m cable (Other lengths on request)
Mounting		Under Mount Yoke (with or without driver box)
LED
LED Manufacturer		LUMILEDS/Seoul
LED Model		Lumileds 5050/Seoul 3535
Working Current of Single LED(NV/HV) (Std. Dev ±10%)	15D	88	135	135	74/604	94/773
	30D	35	54	54	74/604	94/773
	60D	35	54	54	74/604	94/773
	90D	35	54	54	*	*
Lens		Polycarbonate, modular design
Others
Lifespan		L90B10 > 100000hrs, @Ta 25°C
Warranty		5 years in standard, 10 years optional
Certification		UL/cUL/FCC/CE/ENEC/SAA/GS,For other certificates please request
Product Size		φ554313mm / 21.812.3 inches			φ545275mm / 21.510.8 inches
Net Weight		20kg / 44.09 lbs			27kg / 59.52 lbs
Carton Size		740680300mm / 29.126.811.8 inches			800740350mm / 31.529.113.8 inches
Gross Weight		23kg / 50.71 lbs			31.5kg / 69.45 lbs
Application Field		Suitable for sports field, stadium, port, railway station, large out area.
Important Note!		The provided information is solely for reference; the official measurement report holds higher authority.
