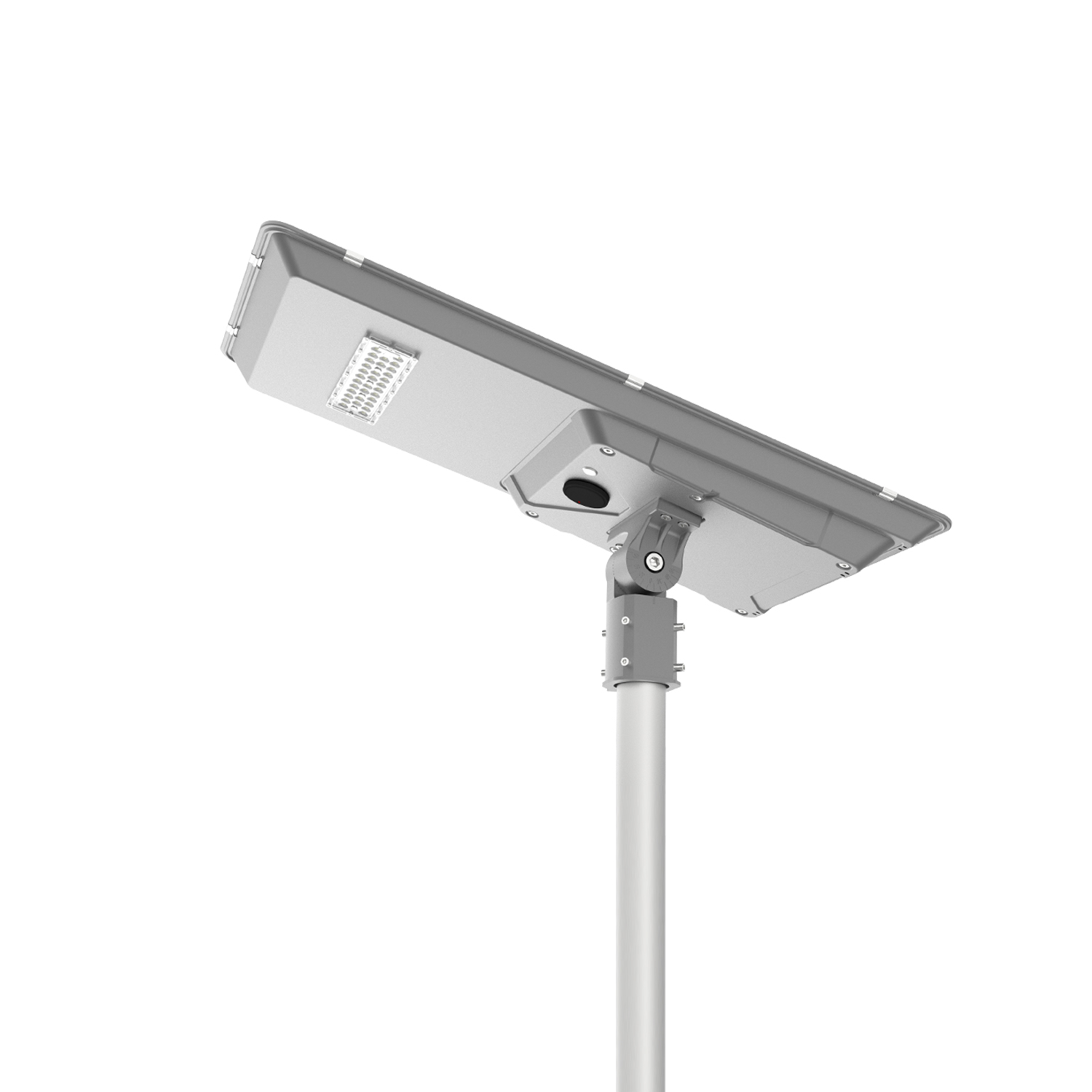

40W High-Efficiency All-in-One Solar Street Light-SAJ

✔ LED MODEL: A5050
✔ EFFICACY: Up to 220 lm/W; 200 lm/W standard
✔ CCT & CRI: 3000K, 4000K, 5000K, 5700K, 6500K; CRI 70Ra
✔ IP & IK: IP65 / IK08
✔ DISTRIBUTION: Type II / Type III / Type IV / Type V
✔ HOUSING: Die-cast aluminum; SPCC / SUS optional
✔ BATTERY CAPACITY: LiFePO4: 384Wh / 576Wh / 768Wh / 1152Wh
✔ SOLAR PANEL: Single-side monocrystalline solar panel; 65W / 90W / 120W
✔ CONTROLLER: MPPT / PWM / Hybrid optional; custom IoT or remote control available
✔ WARRANTY: 3-year standard warranty, 5-year warranty optional

Availability:

Quantity:



Inquire Add to Basket

Model:
AOK-SAJ40
Brand:
AOK
Code:
##

40W High-Efficiency All-in-One Solar Street Light-SAJ

Up to 220 lm/W with LiFePO4 Battery, MPPT Charging and Smart Lighting Control

FEATURES

40W–150W power range for road, street, residential, park, parking lot and commercial lighting applications.

Up to 220 lm/W high lumen output, with standard efficacy of 200 lm/W and Super efficiency of up to 220 lm/W.

Integrated monocrystalline solar panel and high-performance LiFePO4 battery for reliable off-grid solar lighting.

LiFePO4 battery technology provides more than 2,000 charge/discharge cycles, with an integrated Battery Management System (BMS) for enhanced safety and battery protection.

MPPT charge controller improves solar charging efficiency compared with PWM and provides stable charging performance.

Intelligent lighting control with adjustable dimming and presence detection options to reduce energy consumption and extend operating time.

3–5 days maximum autonomy, depending on the model and configuration.

Multiple optical distributions, including Type II, Type III, Type IV and Type V, allowing the light distribution to be matched to different road and project requirements.

ULOR = 0% at 0° luminaire inclination to help minimize upward light pollution.

IP65 and IK08 protection, with durable die-cast aluminum housing for outdoor applications.

Universal bracket with ±90° adjustment and optional adjustable module with ±30° adjustment for flexible installation and aiming.

Smart-control ready, supporting photocell, dimming, sensors, Zhaga, Zigbee IoT and 4G IoT options.

Camera optional for applications requiring additional public-safety monitoring and intelligent infrastructure functions.

Hybrid grid power solution optional for projects requiring solar-grid integration.

APPLICATIONS

Road & highway lighting

Urban road & street lighting

Residential area lighting

Parks & perimeter lighting

Parking lot lighting

Industrial & commercial parks

Railway & station-side lighting

Riverside & jogging track lighting

WARRANTY

• 3~5 Year Limited Warranty. Please consult with our sales for detailed agreement.

For extended coverage and specific terms, please get in touch with our sales team

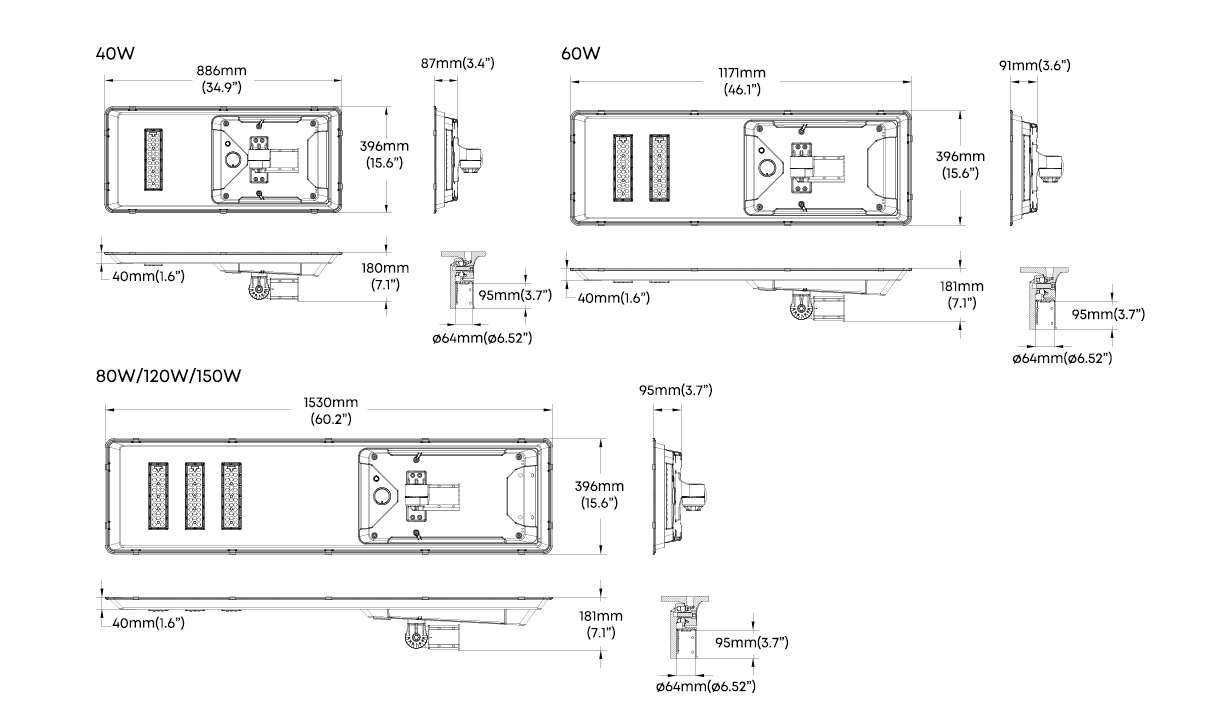

Dimensions

SAJ-尺寸图

Parameter Table

Specification
Model	AOK-40WSAJ	AOK-60WSAJ	AOK-80WSAJ	AOK-120WSAJ	AOK-150WSAJ
Power	40W	60W	80W	120W	150W
Control Option	Photocell ,Dimming,sensor, Zhaga Zigbee iot/4G iot
Grid Hybrid Power Solution(optional) Driver	Inventronics/MOSO
Work Mode	2H-Detected 100%, None 30% ;3H-Detected 70%, None 30% ;3H-Detected 50%, None 20%; 4H-Detected 30%, None 10%
Photometric Data
LED Manufacturer	A 5050
Lens	PC
Efficacy(lm/w, Std. Dev. ±5%)	200lm/W
Luminous Flux(lm, Std. Dev. ±5%)	8000lm	12000lm	16000lm	24000lm	30000lm
Efficacy(lm/w, Std. Dev. ±5%)-Super	220lm/W
Luminous Flux(lm, Std. Dev. ±5%)-Super	8800lm	13200lm	17600lm	26400lm	33000lm
ULOR	= 0%, @ Luminaire inclination 0°
CCT	3000K, 4000K, 5000K, 5700K, 6500K
CRI	70Ra
Beam Angle	T203(65°150°) / T212(75°165°) / T304(75°160°) / T402(80°150°) / T502(150°*150°)
Mechanical Data
SCx (EPA)	Top View: 0.350m²(3.77ft²) Side View: 0.065m²(0.7ft²) Front View: 0.037m²(0.398ft²)	Top View: 0.463m²(4.98ft²) Side View: 0.081m²(0.872ft²) Front View: 0.038m²(0.409ft²)	Top View: 0.605m²(6.51ft²) Side View: 0.101m²(1.09ft²) Front View: 0.039m²(0.42ft²)	Top View: 0.605m²(6.51ft²) Side View: 0.101m²(1.09ft²) Front View: 0.039m²(0.42ft²)	Top View: 0.605m²(6.51ft²) Side View: 0.101m²(1.09ft²) Front View: 0.039m²(0.42ft²)
IP Rating	IP65
IK Rating	IK08(Except for solar panels)
Housing	Die-casting aluminum,SPCC (optional SUS)
Painting	Gray, Silver,Custom request
Bracket	Universal bracket(±90°)/Fixed bracket
Mounting	Universal bracket(Post top/Side entry), Fixed bracket(Wall mount/Round pole), Ø60mm
Configuration Data
Solar Panel Type	single side monocrystalline solar panel
Solar Panel Voltage(W)	65W	90W	120W	120W	120W
LiFePO4 Battery Capacity(WH)	384Wh	576Wh	768Wh	1152Wh	1152Wh
Charing Time(@full power)	6.2Hrs	6.7Hrs	6.7Hrs	10.1Hrs	10.1Hrs
Run Time(@full power)	8.6hrs	8.6hrs	8.6hrs	8.6hrs	6.9hrs
Battery Lifespan	>2000 times cycle
Ambient Temperature	-10°C to 50°C (14°F to 122°F) , -20°C to 60°C (-4°F to 140°F) optional
Storage Temperature	-20°C to 45°C (-4°F to 113°F)
Control System	MPPT/PWM/Hybrid optional, custom IOT or remote control on request
Maximum Autonomy	3-5 days	3-5 days	3-5 days	3-5 days	2-3 days
Others
Lifespan	L90B10 - 100000 hrs, @Tq 25°C
Warranty	3 years as standard (Warranty extension to 5 years on request)
Certification	CE/FCC/RoHs,For other certificates please request
Product Size	88639687mm (34.8815.593.43")	117139691mm (46.115.593.58")	153039696mm (60.2415.593.78")	153039696mm (60.2415.593.78")	153039696mm (60.2415.593.78")
Net Weight	13kg (28.66 lbs)	16kg (35.27 lbs)	20kg (44.09 lbs)	22kg (48.5 lbs)	22kg (48.5 lbs)
Carton Size	915425115mm (36.0216.734.53")	1200425120mm (47.2416.734.72")	1560425125mm (61.4216.734.92")	1560425125mm (61.4216.734.92")	1560425125mm (61.4216.734.92")
Gross Weight	14.5kg (31.97 lbs)	18kg (39.68 lbs)	23kg (50.71 lbs)	25kg (55.12 lbs)	25kg (55.12 lbs)
Recommend Installation Height	5-7m	6-7m	6-8m	6-8m	6-8m
Accessories(standard)	Microwave Sensor，Level Bubble，Charging Port，Switch，Breather Vent，Safety Rope
Accessories(optional)	PIR Sensor，Iot-4G control，Hybrid Grid Power ，Bird Spike
Application Field	Road & street, residential area, garden, parks, parking lot, industrial and commercial parks, railway & station side, riverside & jogging track
Storage Instruction	For long-term storage, it is advisable to first fully charge the battery, then discharge it for 2 to 3 hours. This should be done every 3 months to prevent battery damage.
Important Note!	The provided information is solely for reference; the official measurement report holds higher authority.

Illuminance Diagram

SAB-配光图-1 - 副本
