20W High-Efficiency LED Street Light-lLG02(S)

Share to:

40W High-Efficiency LED Street Light-lLG02(S)

✔ LED MODEL: Lumileds 3030/5050; Seoul 3030/5050; A5050
✔ EFFICACY: Up to 190 lm/W
✔ CCT & CRI: 2700K, 3000K, 4000K, 5000K, 5700K, 6500K; CRI 70Ra, 80Ra, 90Ra optional
✔ IP & IK: IP66 / IK08
✔ DISTRIBUTION: Type II / Type III / Type IV
✔ HOUSING: Heavy-duty die-cast aluminum (ADC12)
✔ CONTROLLER: DALI, 0/1-10V, PWM, timer dimming; NEMA/Zhaga/photocell/sensor options
✔ WARRANTY: 5-year standard warranty, 10-year warranty optional

Availability:

Quantity:



Inquire Add to Basket

Model:
AOK-40WiLG02(S)
Brand:
AOK
Code:
##

ILG02 Series 40W High-Efficiency LED Street Light

Compact, Cost-Effective Road Lighting with Flexible Optics, Smart Controls and Up to 190 lm/W Efficacy

Key Features:

20W–100W power range for road, highway, urban and residential lighting applications.

High-efficiency LED technology with efficacy up to 190 lm/W, providing an energy-efficient solution for outdoor roadway lighting.

Multiple LED options, including Lumileds 3030/5050, Seoul 3030/5050 and A5050, with customized LED solutions available.

Flexible Type II, Type III and Type IV light distributions to meet different road and area lighting requirements.

Compact and robust housing designed for impact resistance, while the smooth rear cover helps provide a self-cleaning surface.

Efficient thermal management with a heavy-duty die-cast aluminum housing and integrated die-cast heat sink for stable operation and long service life.

2200K–2700K CCT options are available for animal- and insect-friendly lighting, with no photobiological risk according to EN 62471:2008.

Adjustable mounting bracket ±15° for flexible installation and aiming.

Multiple smart control options, including DALI, 0/1-10V, PWM and timer dimming.

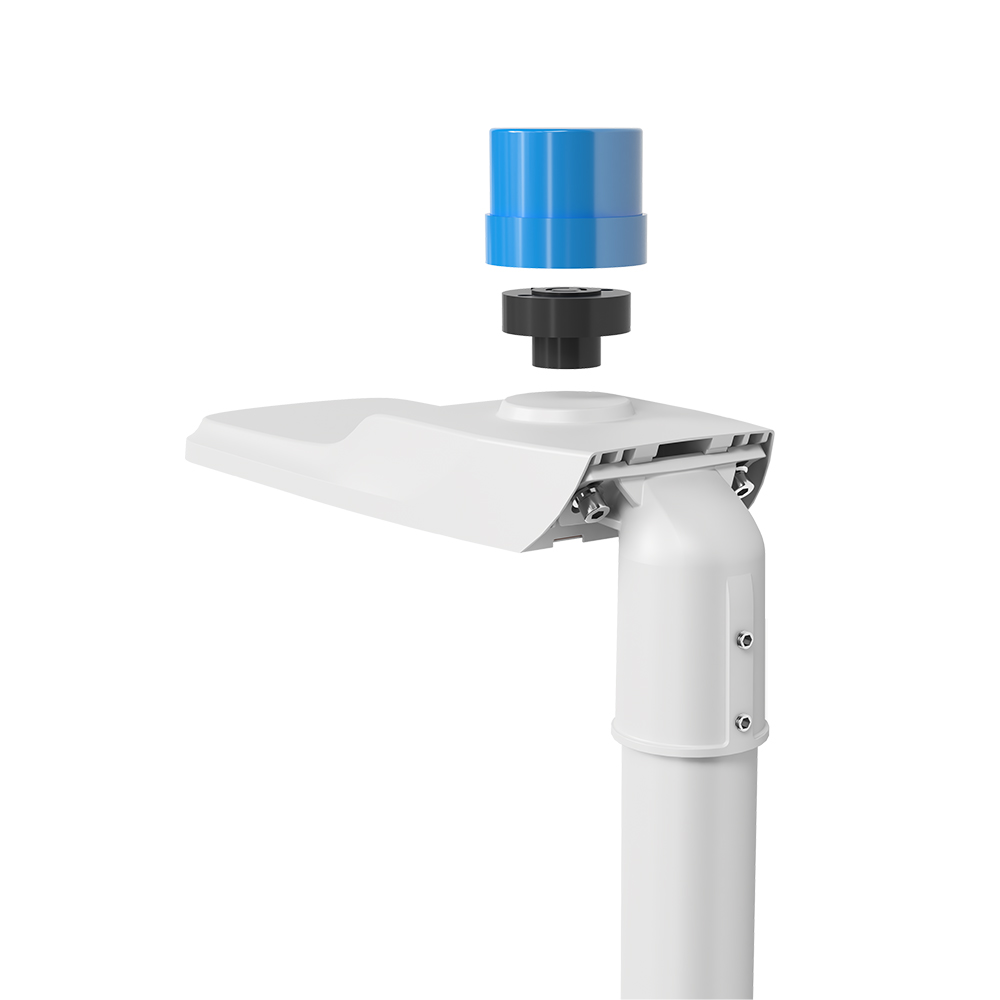

Optional NEMA socket, Zhaga receptacle, photocell, PIR or microwave sensor for connected and intelligent street lighting applications.

IP66 and IK08 protection according to EN 60529 and EN 62262, suitable for demanding outdoor environments.

Wide operating temperature range of -40°C to 50°C, with optional 10kV/20kV surge protection.

ULR = 0% at 0° luminaire inclination, helping minimize unwanted upward light.

L70 >100,000 hours at Ta 25°C, with ENEC, CE and RoHS certifications.

Applications:

Road & highway lighting

Urban road & street lighting

Residential area lighting

Parks & perimeter lighting

Parking lot lighting

Riverside & jogging track lighting

The ILG02 Series is designed as a budget-friendly LED street lighting solution that combines compact construction, high efficiency, flexible optical distributions and smart control compatibility for municipal, commercial and outdoor lighting projects.

WARRANTY

· 5-year standard warranty, 10-year warranty optional. Please consult with AOK sales for detailed agreement.

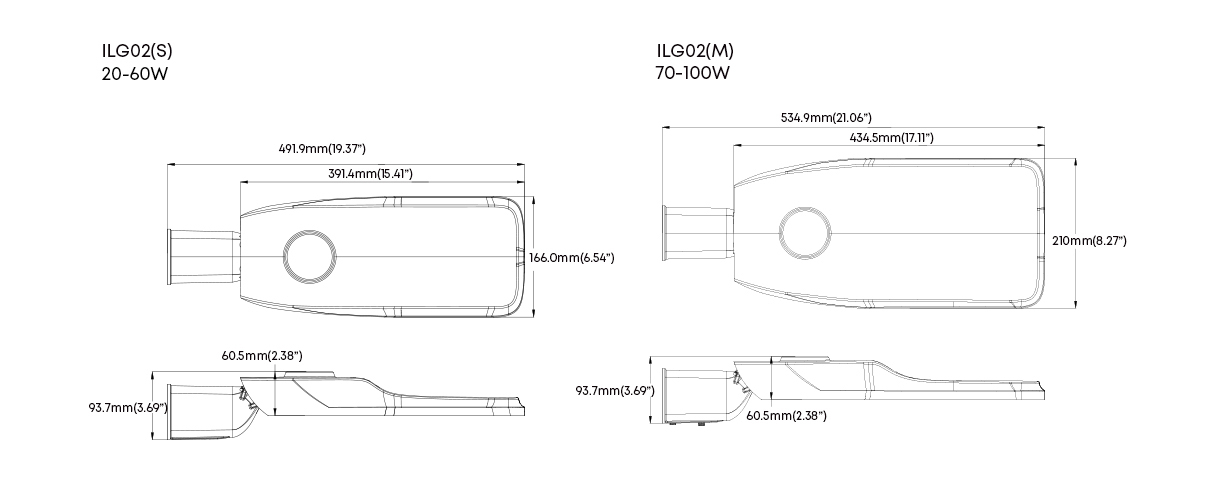

Dimension:

ILG02-尺寸图

Standard Parameter

Electrical Data
Model		AOK-iLG02-(20-60W)
Power		20W	30W	40W	50W	60W
Input Voltage		100-277VAC / 220-240VAC
THD (220Vac)		≤15%
PF (220Vac)		≥0.95
Driver		Class I (MOSO/SOSEN/Inventronics/DONE), Class II (MOSO/SOSEN/Inventronics)
Operating Temperature		-40°C to 50°C (-40 °F to 122 °F)
Control Option		DALI, 0/1-10V, PWM, timer dimming
Surge Protection		10kV / 20kV optional
Photometric Data
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)	T201-12in1 (85*150°)	150lm/W	141lm/W	150lm/W	145lm/W	141lm/W
	T211-12in1 (110*155°)	150lm/W	141lm/W	150lm/W	145lm/W	141lm/W
	T301-12in1 (100*160°)	145lm/W	136lm/W	145lm/W	140lm/W	136lm/W
	T311-12in1 (90*150°)	150lm/W	141lm/W	150lm/W	145lm/W	141lm/W
	T411-12in1 (115*145°)	150lm/W	141lm/W	150lm/W	145lm/W	141lm/W
	T221-16in1 (75*150°)	154lm/W	148lm/W	154lm/W	151lm/W	148lm/W
	T321-16in1 (100*145°)	154lm/W	148lm/W	154lm/W	151lm/W	148lm/W
	T231-24in1 (100*160°)	156lm/W	152lm/W	156lm/W	154lm/W	152lm/W
	T331-24in1 (120*160°)	156lm/W	152lm/W	156lm/W	154lm/W	152lm/W
	T401-24in1 (125*160°)	156lm/W	152lm/W	156lm/W	154lm/W	152lm/W
	T231-24in1-Pro (100*160°)	162lm/W	158lm/W	162lm/W	160lm/W	158lm/W
	T331-24in1-Pro (120*160°)	162lm/W	158lm/W	162lm/W	160lm/W	158lm/W
	T401-24in1-Pro (125*160°)	162lm/W	158lm/W	162lm/W	160lm/W	158lm/W
	T2/T3@Seoul 5050	162lm/W	160lm/W	164lm/W	162lm/W	160lm/W
	T2/T3/T5@A5050	190lm/W	185lm/W	190lm/W	188lm/W	186lm/W
Luminous flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)	T201-12in1 (85*150°)	3000lm	4230lm	6000lm	7250lm	8460lm
	T211-12in1 (110*155°)	3000lm	4230lm	6000lm	7250lm	8460lm
	T301-12in1 (100*160°)	2900lm	4080lm	5800lm	7000lm	8160lm
	T311-12in1 (90*150°)	3000lm	4230lm	6000lm	7250lm	8460lm
	T411-12in1 (115*145°)	3000lm	4230lm	6000lm	7250lm	8460lm
	T221-16in1 (75*150°)	3080lm	4440lm	6160lm	7550lm	8880lm
	T321-16in1 (100*145°)	3080lm	4440lm	6160lm	7550lm	8880lm
	T231-24in1 (100*160°)	3120lm	4560lm	6240lm	7700lm	9120lm
	T331-24in1 (120*160°)	3120lm	4560lm	6240lm	7700lm	9120lm
	T401-24in1 (125*160°)	3120lm	4560lm	6240lm	7700lm	9120lm
	T231-24in1-Pro (100*160°)	3240lm	4740lm	6480lm	8000lm	9480lm
	T331-24in1-Pro (120*160°)	3240lm	4740lm	6480lm	8000lm	9480lm
	T401-24in1-Pro (125*160°)	3240lm	4740lm	6480lm	8000lm	9480lm
	T2/T3@Seoul 5050	3240lm	4800lm	6560lm	8100lm	9600lm
	T2/T3/T5@A5050	3800lm	5550lm	7600lm	9400lm	11160lm
ULR		= 0%, @ Luminaire inclination 0°
CCT		2700K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI		70Ra, 80Ra, 90Ra optional
Beam Angle		Type-II (85150°, 110155°, 75150°, 100160°) / Type III (100160°, 90150°, 100145°, 120160°) / Type IV (125160°, 90150°)
LED Manufacturer		LUMILEDS/Seoul/Others
LED Model		Lumileds 3030, 5050 / Seoul 3030, 5050 / A5050
Lens		Polycarbonate+tempered glass (4 mm thick)
Mechanical Data
IP/IK		Optical systems maintain at IP66, IK08, according to standard EN 60529 and EN 62262
Vibration Resistance		3G rated, conform to standard IEC 68-2-6.
SCx		0.068m²(top view), 0.02m² (side view)
Materials		Heavy-duty die-cast aluminum (ADC12)
Painting		White, Custom request
Surface Treatment		Anti-UV thermosetting polyester / 80 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments).
Cable		Pre-wired with a 30 cm cable (Other lengths on request)

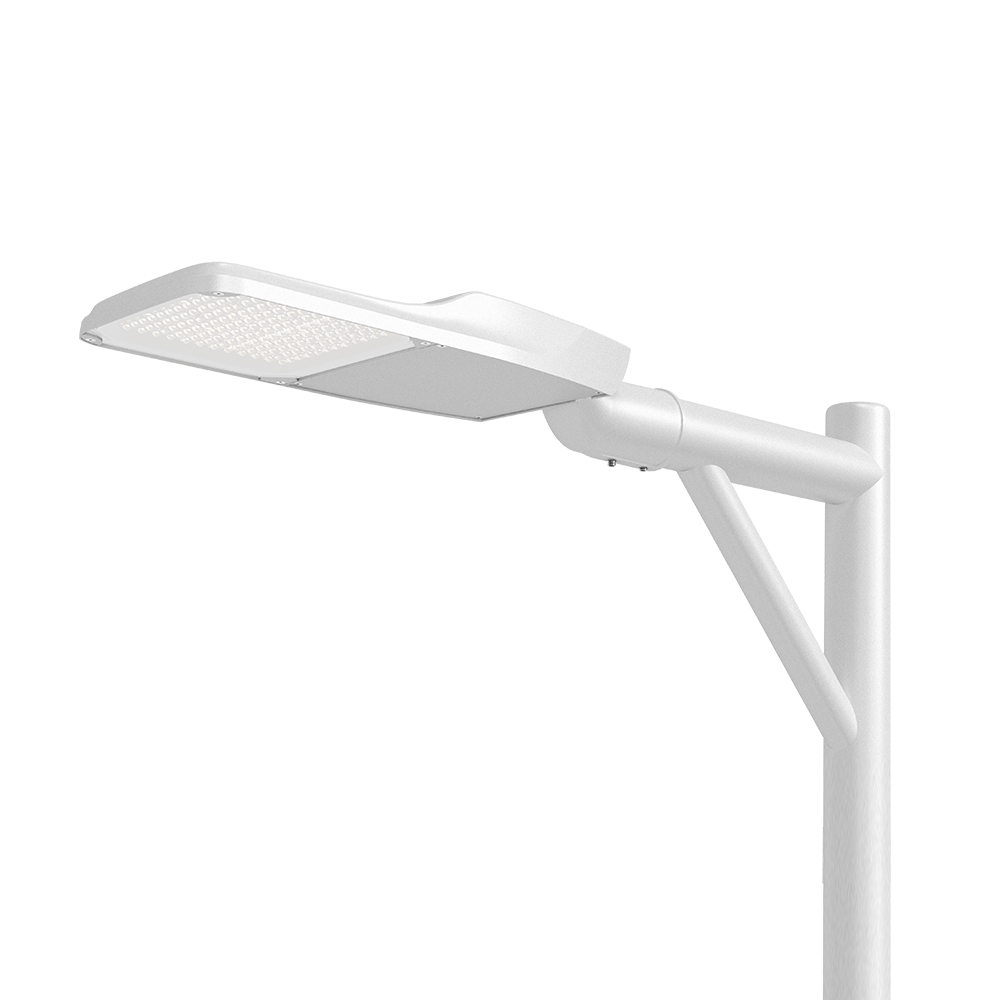

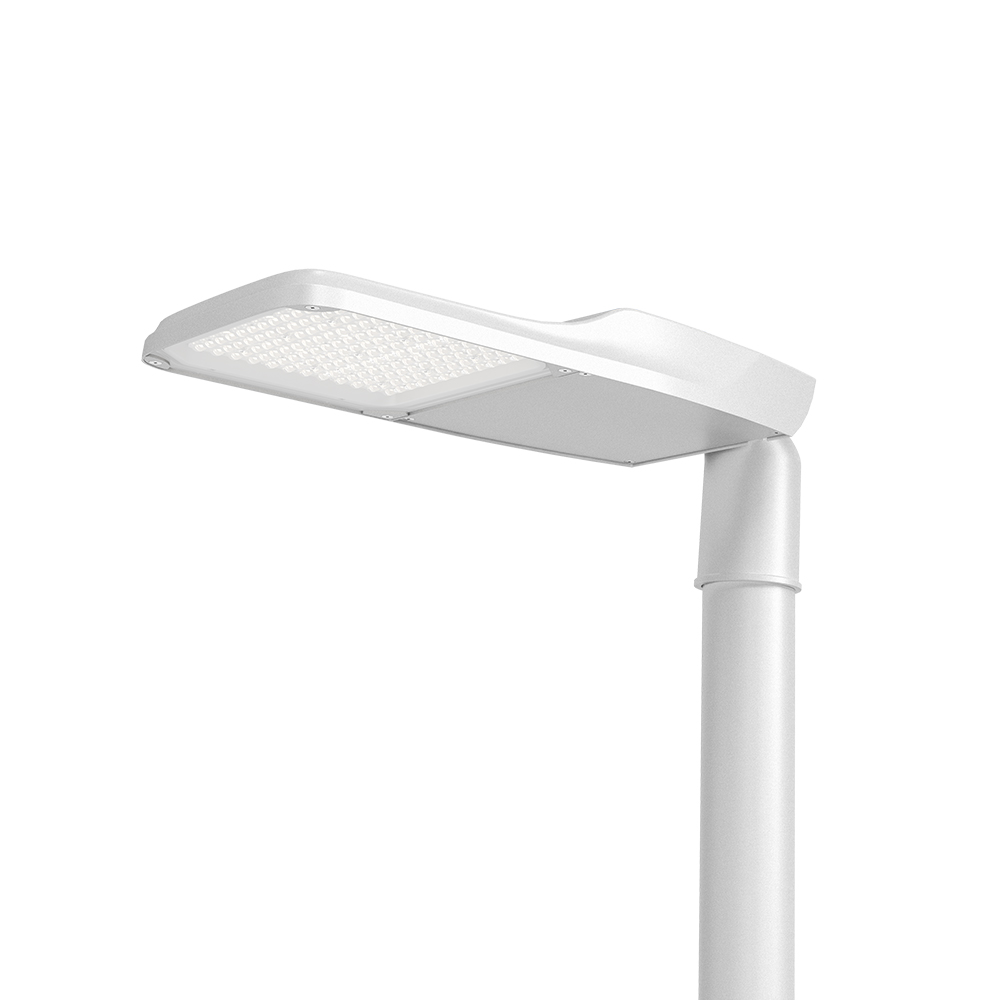

Mounting		Side Entry/Post Top, (Φ42~60mm pole), custom request
Others
Lifespan		L70 > 100000hrs, @Ta 25°C
Warranty		5 years (Warranty extension up to 10 years on request)
Certification		ENEC,CE,RoHS, For other certificates please request
Product Size		491.916660.5mm/19.366.532.38"
Net Weight		2.9kg/6.39lbs
Carton Size & Gross Weight		535206130mm/21.068.115.12",3.3KG/7.28lbs
Recommend Installation Height		General 4-6m, based on actual project requirements
Standard Accessories		None
Optional Accessories		10kV/20kV SPD, breather vent, NEMA socket, Photocell, Zhaga, PIR or Microwave sensor, M20 waterproof joint
Important Note!		The provided parameters are solely for design reference; the official measurement report holds higher and final authority.
