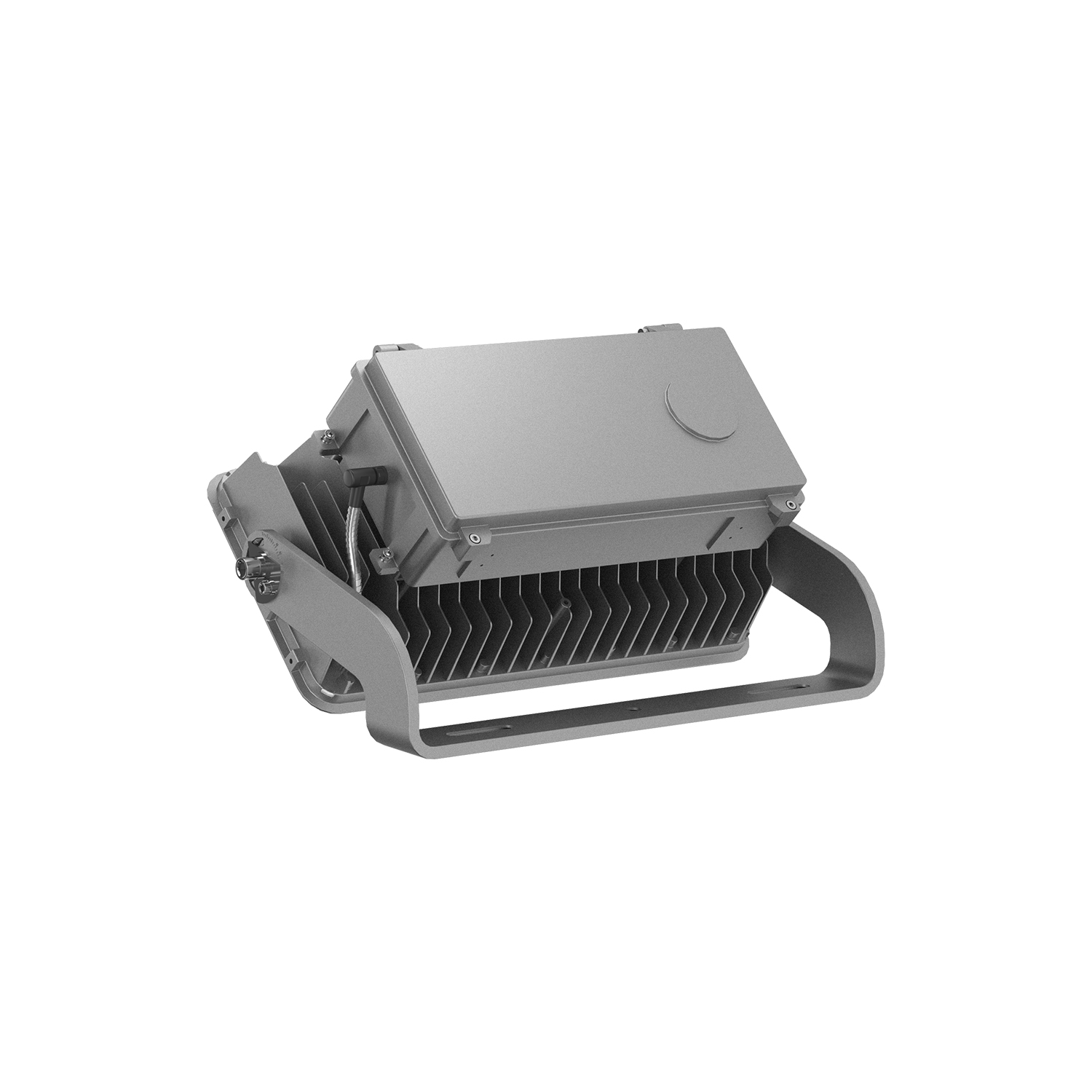

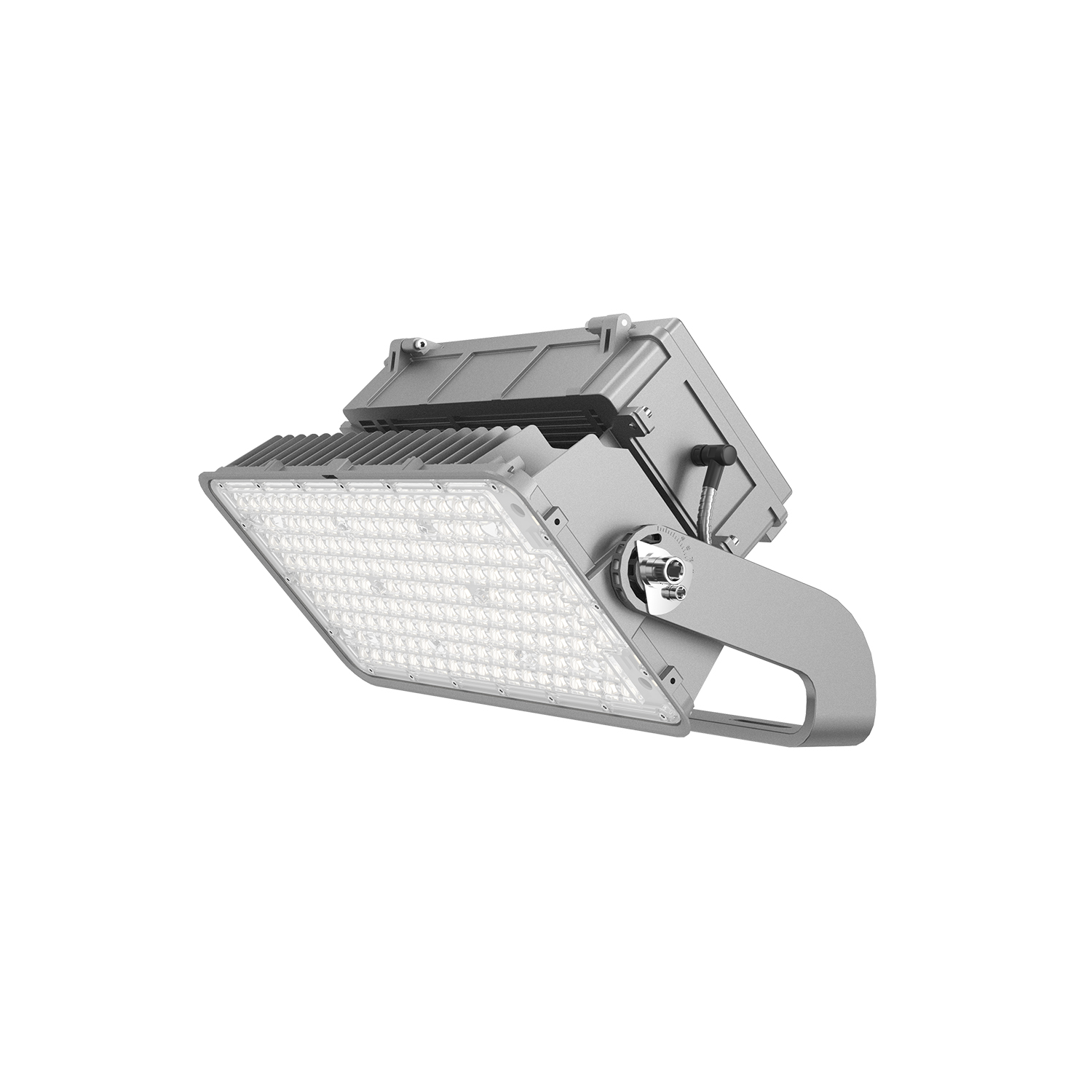

AOK-500WFSE
AOK
##
Professional Sports & Area Lighting with Precision Optics, Low Glare and Flexible Light Distribution
500W and 1000W Power Options for stadiums, sports fields, ports, railway stations and industrial facilities.
Up to 200 lm/W efficacy, delivering up to 200,000 lm from the 1000W model with selected Pro optics.

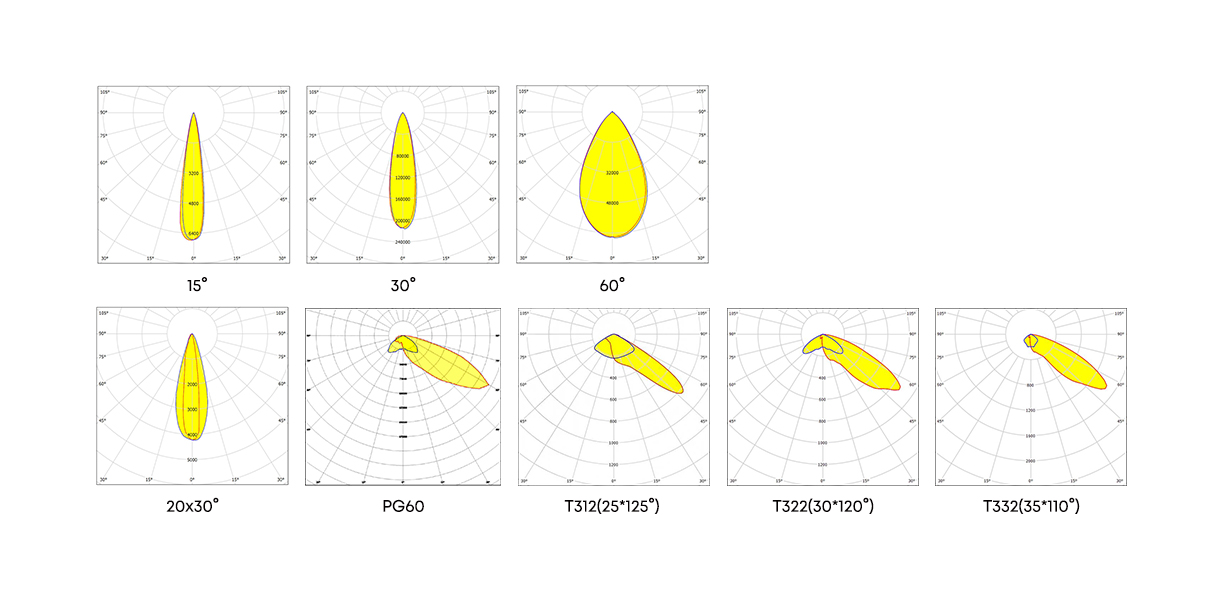

Multiple beam angles including 15°, 20°×30°, 30°, 60°, PG60°, T312, T322 and T332 for precise lighting distribution.
Low-glare optical design with ULOR = 0% to minimize unwanted upward light and light pollution.
Heavy-duty die-cast aluminum housing with vertical channel-type heat sinks for efficient natural convection.
Modular and tool-less maintenance design allows the driver enclosure to be separated from the thermal module for easier repair and replacement.
Adjustable mounting bracket up to ±90° for flexible aiming and installation.
Zhaga and NEMA connectivity options, with photocell and laser aiming available for connected lighting applications.
IP66 and IK08 protection for demanding outdoor environments.
Wide operating temperature range from -40°C to 50°C, with optional 10kV/20kV surge protection.
CE, RoHS and ENEC certified, with a rated lifespan of L70B10 > 100,000 hours at Tq 25°C.
Stadiums and arenas
Professional sports fields
Ports and large-area facilities
Railway stations
Industrial and factory areas
Outdoor area lighting
The FSE Series is designed for professional sports and large-area lighting applications where precise beam control, low glare, high efficiency and simplified maintenance are required.
5 Year Limited Warranty, 10 Year Preferred Warranty. Please consult with our sales for detailed agreement..

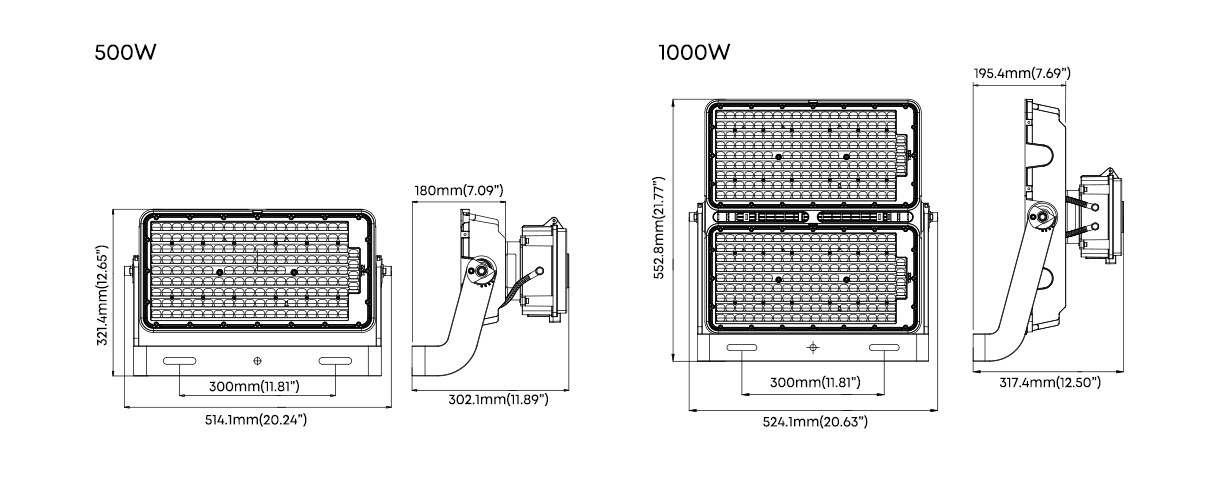

Dimensions:
