600W High Mast Light / Flood Light HMA

✔ LUMEN OUTPUT: up to 84000lm
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK09 with tempered glass
✔ DISTRIBUTION: Type-III (20x105°) /Type-V (150x150°)
✔ HOUSING: Heavy-duty die-cast aluminum (EN AC-46100)
✔ WARRANTY: 5 years in standard, 10 years optional
✔ LED Model: Lumileds 5050/Seoul5050/OSRAM P8

Availability:

Quantity:



Inquire Add to Basket

Model:
AOK-600WHMA
Brand:
AOK
Code:
##

Discover the HMA LED High Mast Light, ideal for expressways, freeway interchanges, and expansive area applications. Engineered with unique reflective optics, this 600W aviation-grade LED high-mast light enhances efficiency while reducing glare, providing superior illumination. Compared to traditional HID fixtures, the HMA LED offers energy savings and lower operating costs. Elevate your highway lighting system with this professional, durable, and cost-effective 600W LED high-mast light solution.

Features

The HMA series offers versatility with its innovative design and flexible mounting bracket, making it suitable for a variety of applications, including high mast and floodlighting. It is known for its lightweight construction, easy installation, and exceptional light distribution quality.

Optical/Electrical Specifications

✔ Housing: Heavy-duty die-cast aluminum (ADC12) for excellent heat dissipation

✔ Driver: High-efficiency options from Inventronics, Osram, or other Class 1, EU-compliant brands

✔ Light Source: Lumileds 5050, Seoul 5050, Osram P8, and other brands available

✔ Coating: Anti-UV thermosetting polyester with an 80-micron epoxy primer for corrosive environments

✔ Control Options: DALI, 0-10V/PWM/timer dimming, Nema, NTC, presence detection sensor; Dim-to-Off with standby power ≤ 0.5W

✔ Lighting Distribution: 100% precise with ULOR=0%, eliminating upper light pollution

Recommended Uses

· Airport lighting

· Expressways and freeway interchanges

· Port facilities

· Trailer/container yards and rail yards

Certifications/Listing

· UL/cULus/FCC/ENEC/SAA/TUV, for other certificates please request

Warranty

· 5-year standard warranty; optional 10-year warranty available. Contact AOK sales for detailed information.

Dimension

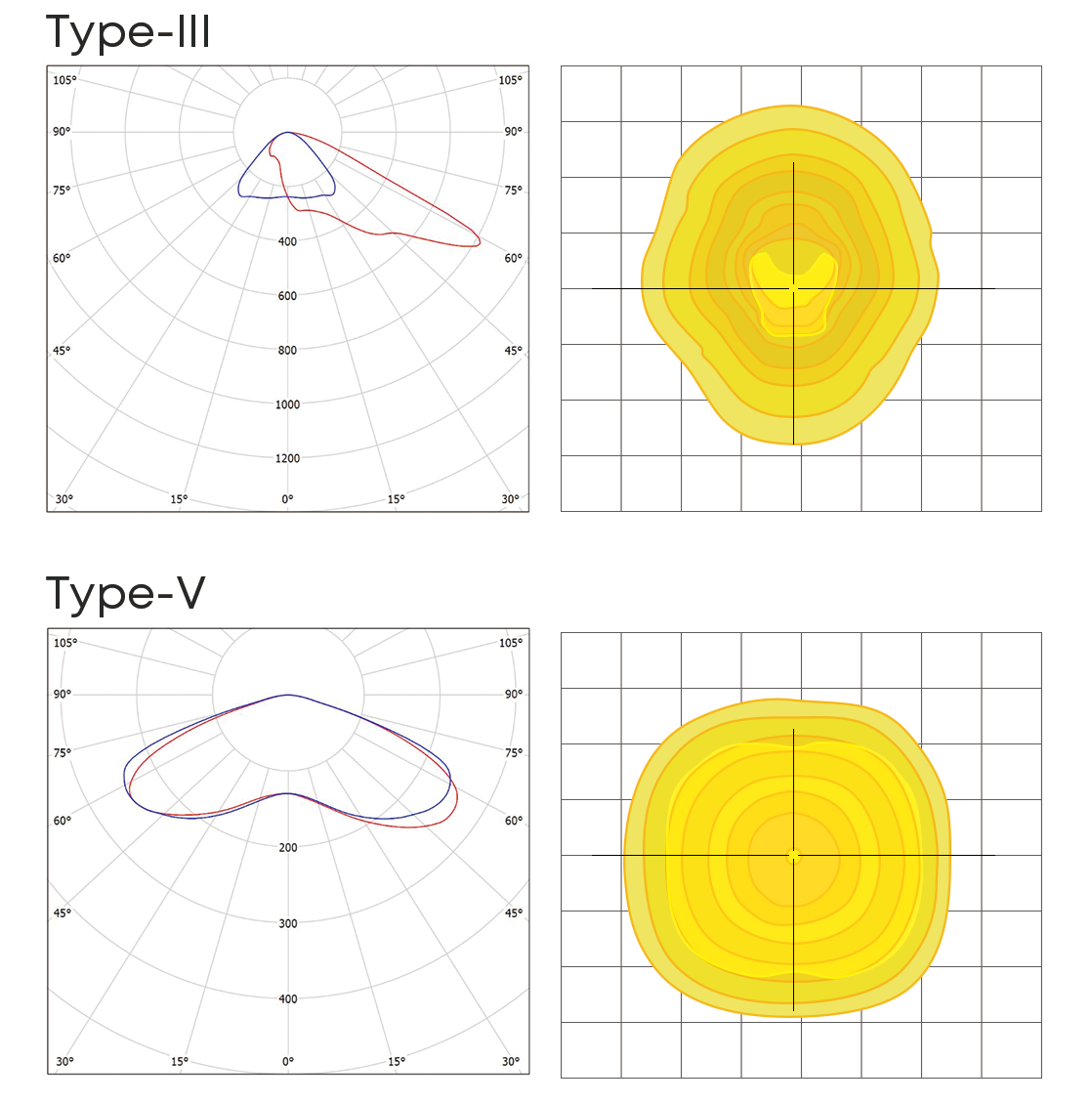

Illuminance Diagram

photometrics

Parameter Table

Electrical Data
Model		AOK-400WHMA	AOK-480WHMA	AOK-600WHMA
Input Voltage		100-277VAC/250-500VAC
THD（220Vac）		≤10%
PF(220Vac)		≥0.96
Driver		Inventronics / OSRAM / Class 1, EU
Operating Temperature		-40°C to 55°C (-40 °F to 131 °F)		-40°C to 50°C (-40 °F to 122 °F)
Control Option		DALI, 0-10V/ PWM / timer dimming, Nema, NTC, Presence detection sensor. Dim-to-Off with standby power <= 0.5W.
Surge Protection		10kV / 20kV optional
Photometric Data
Efficacy(lm/W)(CRI 70Ra, 5000K,277Vac)(Std Dev ±5%)	Type-III-P8 (20x105°)	140lm/W	140lm/W	140lm/W
	Type-V-L5 (150x150°)	140lm/W	140lm/W	140lm/W
Luminous flux (lm) (CRI 70Ra, 5000K,277Vac)(Std Dev ±5%)	Type-III-P8 (20x105°)	56000lm	67200lm	84000lm
	Type-V-L5 (150x150°)	56000lm	67200lm	84000lm
ULR		= 0%, @ Luminaire inclination 0°
CCT		2700K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI		70Ra, 80Ra, 90Ra optional
Beam Angle		Type-III (20x105°) /Type-V (150x150°)
LED Manufacturer		LUMILEDS/Seoul/OSRAM
LED Model		Lumileds 5050/Seoul5050/OSRAM P8
Lens		Polycarbonate+tempered glass(5 mm thick)
Mechanical Data
IP/IK		IP66/IK09, according to standard EN 60529 and EN 62262
Vibration Resistance		3G, conform to standard IEC 68-2-6.
SCx	Type-A (Highmast)	Front: 0.05 m²; Side: 0.1 m²
	Type-B (U-bracket split mode)	Front: 0.15 m²; Side: 0.05 m²
	Type-BXR (Driver on the back)	Front: 0.15 m²; Side: 0.09 m²
	Type-BXS (Driver on the bracket)	Front: 0.16 m²; Side: 0.08 m²
Materials		Heavy-duty die-cast aluminum (ADC12)
Painting		Gray (Cool Gray 5C), Custom request
Surface Treatment		Anti-UV thermosetting polyester / 80 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments).
Cable		Pre-wired with a roughly 80 cm cable (Other lengths on request）
Mounting		Type-A (Side entry) / Type-B (U bracket) / Type-BXR (Driver on the back) / Type-BXS (Driver on the bracket)
Others
Lifespan		L70 > 100000hrs, @Ta 25°C
Warranty		5 years (Warranty extension up to 10 years on request)
Certification		Please request for details
Product Size	Type-A	618320241mm / 24.3312.69.48 inches
	Type-B	458386331mm / 18.0315.213.03 inches
	Type-BXR (Driver on the back)	458386331mm / 18.0315.213.03 inches
	Type-BXS (Driver on the bracket)	535404458mm / 21.0615.9118.03 inches
Carton Size	Type-A	680380295mm / 26.7714.9611.61 inches
	Type-B	645445175mm / 25.3917.526.89 inches
	Type-BXR (Driver on the back)	625445300mm / 24.6117.5211.81 inches
	Type-BXS (Driver on the bracket)	625445315mm / 24.6117.5212.4 inches
Net Weight	Type-A	17.3kg / 38.14lbs
	Type-B	11kg / 24.25lbs
	Type-BXR (Driver on the back)	16.3kg / 35.94lbs
	Type-BXS (Driver on the bracket)	17.3kg / 38.14lbs
Gross Weight	Type-A	18.8kg / 41.44lbs
	Type-B	12.2kg / 26.90lbs
	Type-BXR (Driver on the back)	17.6kg / 38.80lbs
	Type-BXS (Driver on the bracket)	18.6kg / 41.01lbs
Standard Accessories		Safety wire rope
Optional Accessories		NEMA socket, photocell (with Nema), circuit breaker, breather vent, 20KvSPD
Application Field		Highway interchange, Highmast, Quay crane, Port & loading bay, Toll plaza, Airport apron, Car Parks, Sports lighting, Facade lighting
Important Note!		The provided information is solely for reference; the official measurement report holds higher authority.
