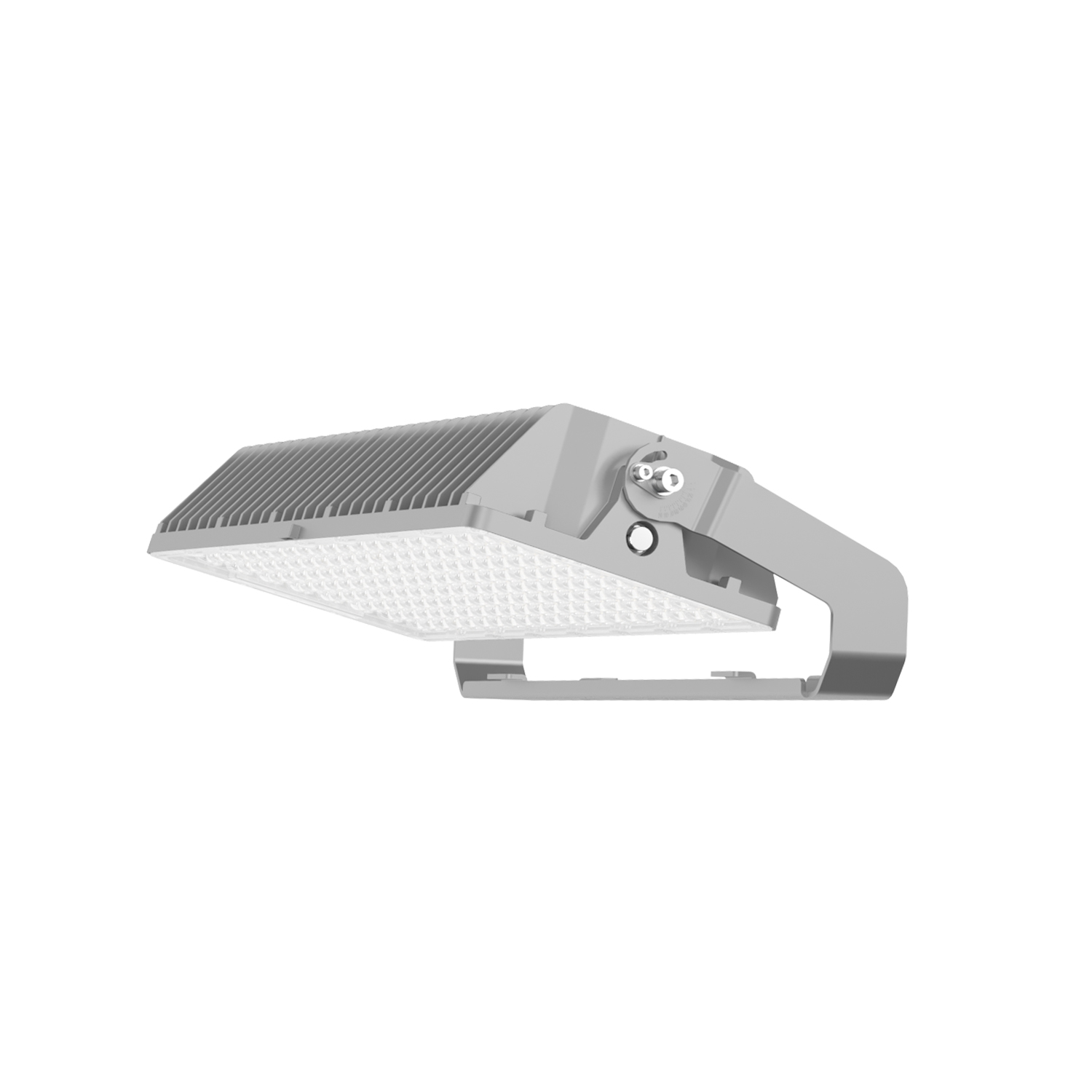

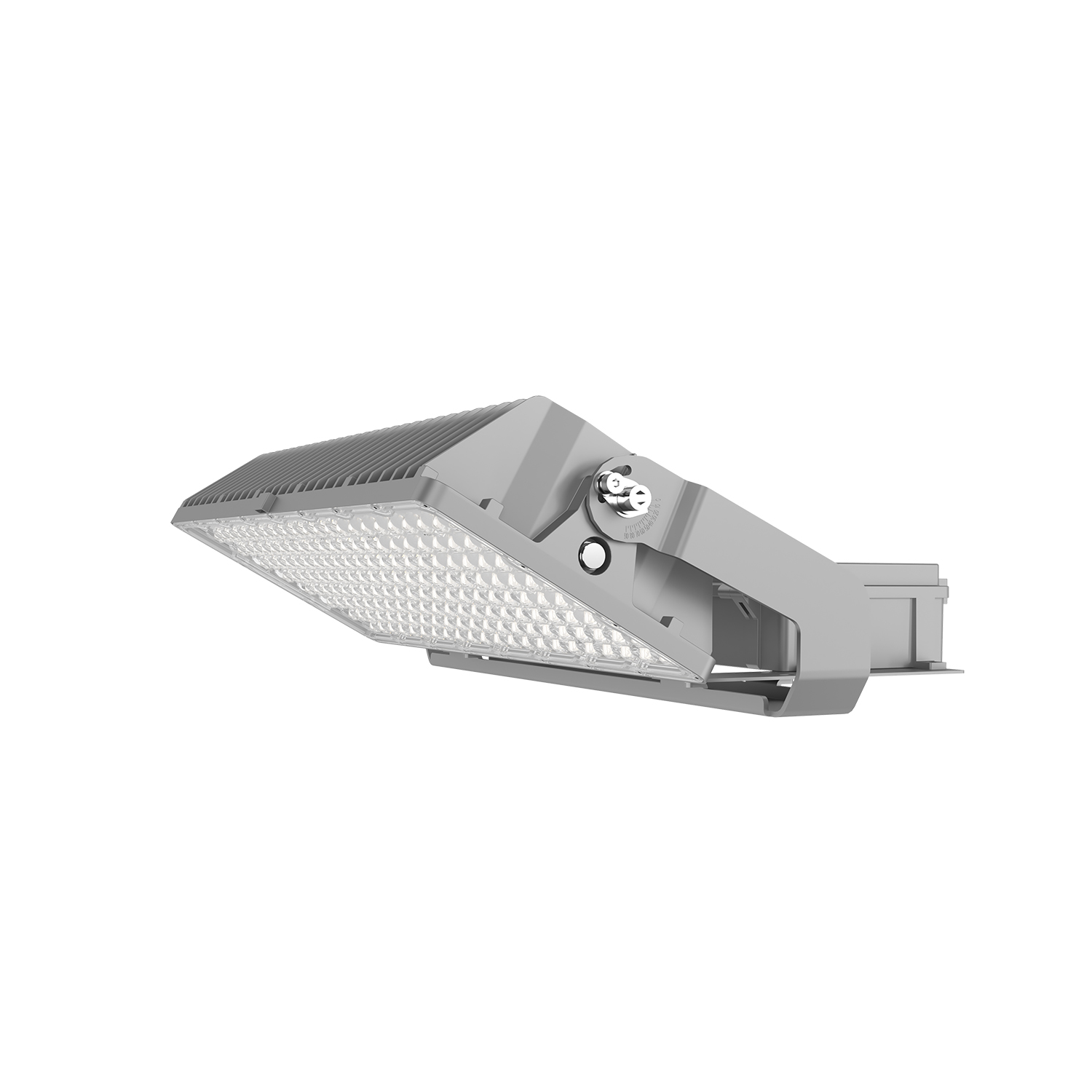

600W LED Sports Flood Light-FSD

✔ LED MODEL: 3535 / 5050 LED
✔ EFFICACY: Up to 185 lm/W
✔ CCT & CRI: 2700K–6500K, CRI 70/80/90 optional
✔ IP & IK: IP66 / IK08–IK10
✔ DISTRIBUTION: 15D/30D/60D/20*30D/T302 (30*130D) asymmetric beam
✔ HOUSING: Heavy-duty die-cast aluminum (ADC12)
✔ CONTROLLER: DALI-2 / D4i / 0-10V dimming / DMX
✔ WARRANTY: 5 years standard, up to 10 years optional

Availability:

Quantity:



Inquire Add to Basket

Model:
AOK-600WFSD
Brand:
AOK
Code:
##

600W LED Sports Flood Light – FSD Series

High-Power 600W–2100W Stadium Lighting with Low Glare & 0% ULOR

Key Features:

Professional Sports Lighting Optics

Asymmetric optical design ensures precise illumination on the field with ULOR=0%, eliminating uplight and reducing light pollution.

High-Efficiency Performance

Up to 185 lm/W with powerful luminous output reaching Max. 2100W, 367,500 lumens, ideal for large-scale sports venues and high-mast lighting.

Modular Design for Easy Maintenance

Flexible modular structure allows quick replacement and maintenance, reducing downtime and service costs.

Low Glare & Environmental Friendly

Reduces glare by up to 40% and light spill by over 50%, improving visual comfort for athletes and spectators.

Flexible Installation & Precise Aiming

Multi-angle adjustable modules (±20°) and brackets (0–90°), with optional laser aiming system for accurate installation.

Smart Control Compatibility

Supports DALI-2, D4i, and 0/1–10V dimming, DMX systems, ready for intelligent lighting control integration.

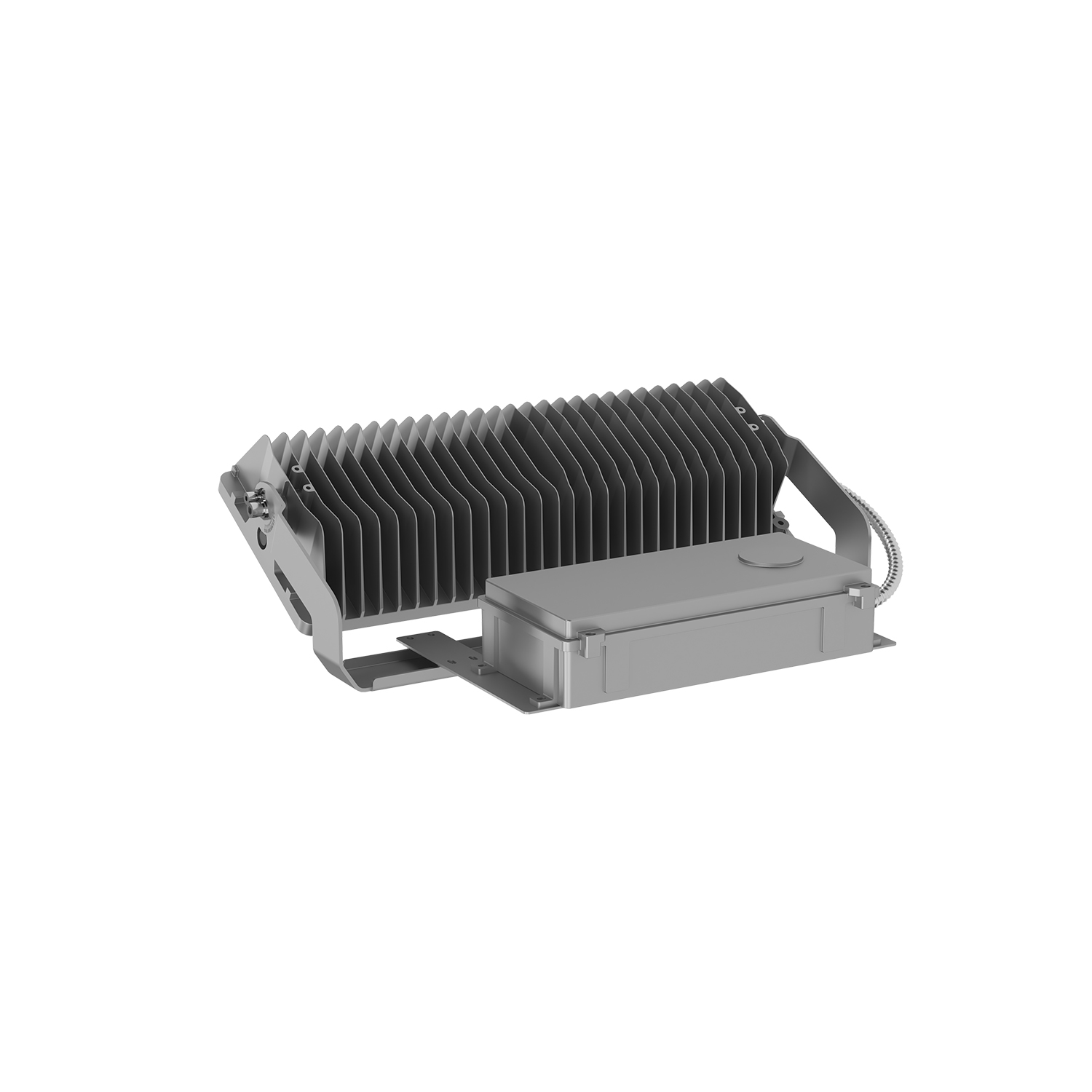

Durable Industrial Construction

Die-cast aluminum housing with IP66 and IK10 protection, ensuring reliable operation in harsh outdoor environments.

Applications

Stadium lighting (football, soccer, sports arenas)

Sports fields & training grounds

Ports & container terminals

Railway stations & infrastructure lighting

High mast & large area flood lighting

WARRANTY

5 Year Limited Warranty, 10 Year Preferred Warranty. Please consult with our sales for detailed agreement..

Dimensions:

Standard Parameter

Electrical Data
Model		AOK-600WFSD	AOK-650WFSD	AOK-700WFSD	AOK-750WFSD	AOK-800WFSD
Power		600W	650W	700W	750W	800W
Module		1
Input Voltage		200-480VAC
THD (220Vac)		≤10%
PF (220Vac)		≥0.95
Driver		Inventronics, Sosen
Operating Temperature		-40°C to 55°C (-40 °F to 131 °F)		-40°C to 50°C (-40 °F to 122 °F)	-40°C to 45°C (-40 °F to 113 °F)	-40°C to 40°C (-40 °F to 104 °F)
Control Option		DALI-2/D4i/DMX-RDM, 0/1-10V, timer dimming
Photometric Data
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%) A5050 LED-No Glass	T302 (30*130°)	170lm/W	165lm/W	165lm/W	160lm/W	160lm/W
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%) A5050 LED-No Glass	T302 (30*130°)	102000lm	107250lm	115500lm	120000lm	128000lm
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%) A5050 LED-No Glass	30D, 60D	180lm/W	175lm/W	175lm/W	170lm/W	170lm/W
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%) A5050 LED-No Glass	30D, 60D	108000lm	113750lm	122500lm	127500lm	136000lm
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%) A3535 LED-No Glass	15D, 20*30D	165lm/W	160lm/W	160lm/W	155lm/W	155lm/W
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%) A3535 LED-No Glass	15D, 20*30D	99000lm	104000lm	112000lm	116250lm	124000lm
ULR		= 0%, @ Luminaire inclination 0°
CCT		2700K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI		70Ra, 80Ra, 90Ra optional
Beam Angle		15°/2030°/30°/60°/T302(30130°)
LED Manufacturer		Other brands, customization acceptable, please request
LED Model		A3535, A5050
Lens		Polycarbonate、Custom tempered glass options are available subject to MOQ requirements. Please consult our sales team for detailed information.
Mechanical Data
IP/IK		Optical systems maintain at IP66, IK08/IK09/IK10, according to standard EN 60529 and EN 62262
Vibration Resistance		3G rated, conform to standard IEC 68-2-6.
SCx		0.19m²(top view), 0.029m² (side view)
Materials		Heavy-duty die-cast aluminum (ADC12)
Painting		Gray, Custom request
Surface Treatment		Anti-UV thermosetting polyester / 80 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments).
Cable		Pre-wired with a 100 cm cable (Other lengths on request)
Mounting		Vertical and horizontal installation
Others
Lifespan		L90 > 100000hrs, @Ta 25°C
Warranty		5 years (Warranty extension up to 10 years on request)
Certification		Please consult us
Product Size		646280266mm/25.4311.0210.47"
Standard Package Size		700435285mm/27.5617.1211.22"
Standard Accessories		Breather vent, safety rope
Optional Accessories		Laser Aiming, Lighting Louver,Visor,10kv/20KV SPD
Important Note!		The provided parameters are solely for design reference; the official measurement report holds higher and final authority.

Power	600W	650W	700W	750W	800W
	Net Weight
Fixture Body (PC)	7.1 Kg (15.65 lbs)
Fixture Body with Glass (4mm Glass)	8 Kg (17.64 lbs)
Driverbox / Driver	Driverbox+Driver+ Fixed Plate	Driverbox+Driver+ Fixed Plate	Driverbox+Driver+ Fixed Plate	Driverbox+Driver+ Fixed Plate	Driverbox+Driver+ Fixed Plate
	4.7 Kg (10.36 lbs) (SOSEN SS-680NP-M)		4.84 Kg (15.67 lbs) (SOSEN SS-880NP-M)
3mm Bracket	-
4mm Bracket	2.6 Kg (5.73 lbs)
	Gross Weight
Standard (Without Driver) + 3mm bracket + packaging	-
Glass solution (Without Driver) + 3mm bracket + packaging	-
Standard (Without Driver) + 4mm bracket + packaging	11.3 Kg (24.91 lbs)
Glass solution (Without Driver) + 4mm bracket + packaging	12.2 Kg (26.9 lbs)

Photometry
