Availability: | |
---|---|
Quantity: | |
AOK-60WsE
AOK
9405409000

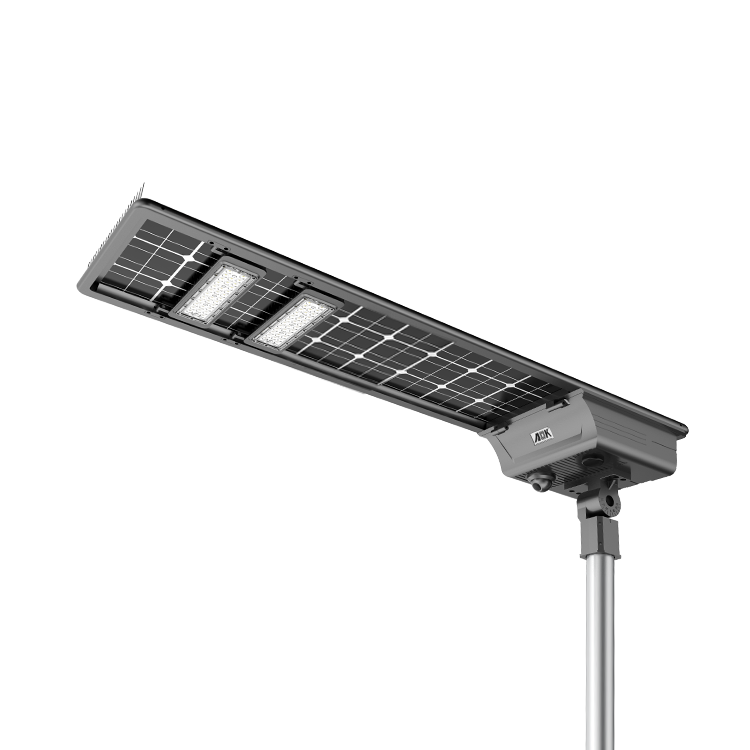

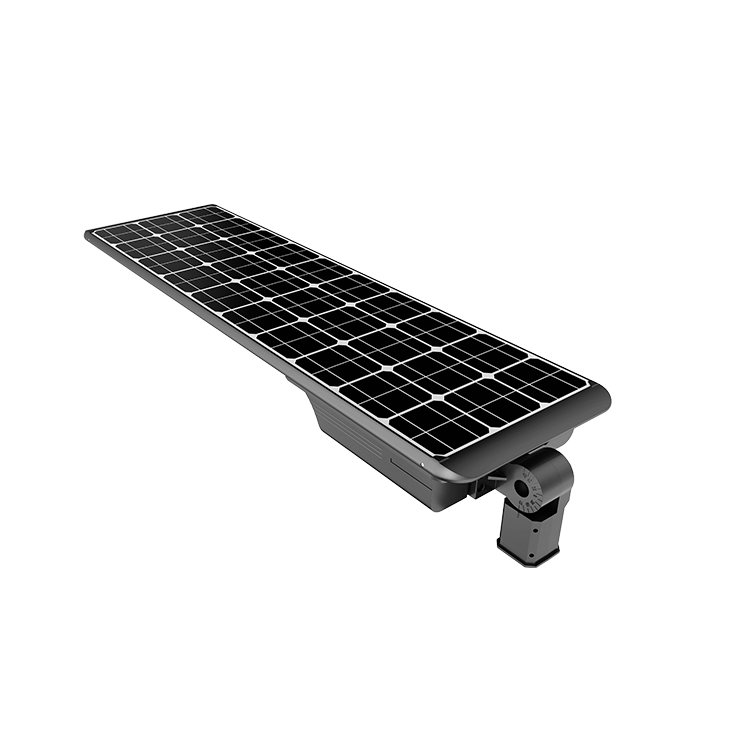

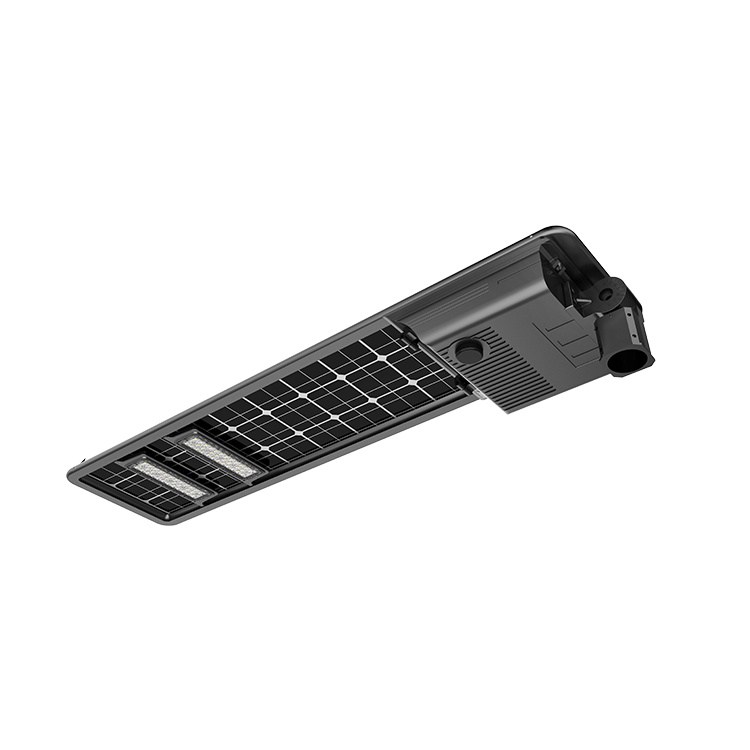

Searching for a top-rated 60W all-in-one solar street light with a professional design? The AOK SE Series all-in-one solar street light is the ideal choice. This advanced solar street light features a rotatable LED module and a high-performance bifacial solar panel, offering remarkable efficiency of up to 200lm/W. Its sleek design integrates a PIR/microwave motion sensor and a smart controller for added convenience. The bifacial solar panel is perfect for remote areas and places without electricity, while the deep cycle battery ensures reliable performance with over 2000 charge and discharge cycles. Even during rainy conditions, the intelligent mode provides 5-7 days of operation. Choose the AOK SE Series for a dependable and energy-efficient outdoor lighting solution.
✔ Easy Battery Replacement: Designed for easy battery renewal every 7 years.
✔ Ultra-High Light Efficiency: 10 watts equivalent to at least 20 watts of other lights.
✔ Bifacial Solar Panels: Increases overall conversion efficiency by 30%.
✔ Anti-Theft Battery Door: Unique technology to prevent theft.
✔ Rotatable LED Module: Ensures optimal solar panel angle and easy installation.
✔ Versatile Installation: Suitable for light poles, wall surfaces, and more.
✔ Wide Power Range: From 10W to 60W, replacing traditional 35W-240W lights for various road applications.
✔ Customizable Optical Designs: Adaptable to different road conditions with no light wastage.
Equipped with Seoul 5050 LED chips, the AOK SE Series offers superior lighting performance. With single-lumen efficacy over 200lm/W and a robust aluminum lamp base with a sealed lens, it ensures high brightness with minimal fading. The UV-protected, shock-resistant PC lenses and optimized light distribution provide a uniform and expansive lighting area.
· Universal/Wall Mount/Round Pole/Square Pole
· Intelligent APP Control, IoT Management, AC & DC hybrid grid-powered solution
· Road Lighting
· Area Lighting
· Perimeter Lighting
·3 years (Extended warranty up to 5 years available upon request)
· UL, CUL, FCC, SAA, RCM, CE, RoHS
· Additional certificates available upon request
The system allows for preset lighting modes based on time of day and traffic flow. It can automatically turn lamps on or off, adjust switching times, and modify illumination levels to optimize energy savings and reduce consumption.
Searching for a top-rated 60W all-in-one solar street light with a professional design? The AOK SE Series all-in-one solar street light is the ideal choice. This advanced solar street light features a rotatable LED module and a high-performance bifacial solar panel, offering remarkable efficiency of up to 200lm/W. Its sleek design integrates a PIR/microwave motion sensor and a smart controller for added convenience. The bifacial solar panel is perfect for remote areas and places without electricity, while the deep cycle battery ensures reliable performance with over 2000 charge and discharge cycles. Even during rainy conditions, the intelligent mode provides 5-7 days of operation. Choose the AOK SE Series for a dependable and energy-efficient outdoor lighting solution.
✔ Easy Battery Replacement: Designed for easy battery renewal every 7 years.
✔ Ultra-High Light Efficiency: 10 watts equivalent to at least 20 watts of other lights.
✔ Bifacial Solar Panels: Increases overall conversion efficiency by 30%.
✔ Anti-Theft Battery Door: Unique technology to prevent theft.
✔ Rotatable LED Module: Ensures optimal solar panel angle and easy installation.
✔ Versatile Installation: Suitable for light poles, wall surfaces, and more.
✔ Wide Power Range: From 10W to 60W, replacing traditional 35W-240W lights for various road applications.
✔ Customizable Optical Designs: Adaptable to different road conditions with no light wastage.
Equipped with Seoul 5050 LED chips, the AOK SE Series offers superior lighting performance. With single-lumen efficacy over 200lm/W and a robust aluminum lamp base with a sealed lens, it ensures high brightness with minimal fading. The UV-protected, shock-resistant PC lenses and optimized light distribution provide a uniform and expansive lighting area.
· Universal/Wall Mount/Round Pole/Square Pole
· Intelligent APP Control, IoT Management, AC & DC hybrid grid-powered solution
· Road Lighting
· Area Lighting
· Perimeter Lighting
·3 years (Extended warranty up to 5 years available upon request)
· UL, CUL, FCC, SAA, RCM, CE, RoHS
· Additional certificates available upon request
The system allows for preset lighting modes based on time of day and traffic flow. It can automatically turn lamps on or off, adjust switching times, and modify illumination levels to optimize energy savings and reduce consumption.
【File Download】
AOK_Catalog_All In One Solar Street Light_SE-v24-09-05.pdf
AOK SE(10W-60W)_Solar Street Light_Installation Guide_V24-09-02.pdf
Technical Specification
● Operating time: 15 hours full power, intelligent mode 5-7 days.
● Input Voltage: 12-24V constant voltage.
● Control Mode:Light Control + Motion Sensor/Time Control/PIR Built In.
● Working Mode: 30% of intensity at first 4 hrs, 100% bright when people or car pass by, then rest of time 30% of intensity, and 70% of intensity when people pass by.
● Housing: Die-Casting Aluminum, Anti-Corrosion.
● Life Hours: >100,000 hours.
● 3000K/4000K/5000K/5700K/6500K available. CRI: 70/80
Distribution Diagram
Electrical Data | ||||||
Model | AOK-10WsE | AOK-20WsE | AOK-30WsE | AOK-40WsE | AOK-50WsE | AOK-60WsE |
Power(W) | 10W/15W | 20W/25W | 30W/35W | 40W/45W | 50W | 60W |
Control Option | Photocell sensor, timing, dimming, intelligent power saving, microwave sensor. 4G, Zigbee, Smart Lighting Control optional. | |||||
Photometric Data | ||||||
LED Manufacturer | Seoul | |||||
LED Model | Seoul 5050 | |||||
Lens | Polycarbonate | |||||
Efficacy (lm/W, Std. Dev. ±5%)@CCT=5700K, CRI>70Ra | 200lm/W | 190lm/W | 196lm/W | 192lm/W | 192lm/W | 190lm/W |
Luminous Flux (lm, Std. Dev. ±5%)@CCT=5700K, CRI>70Ra | 2000lm | 3800lm | 5880lm | 7680lm | 9600lm | 11400lm |
ULOR | = 0%, @ Luminaire inclination 0° | |||||
CCT | 3000K, 4000K, 5000K, 5700K, 6500K | |||||
CRI | 70Ra, 80Ra, 90Ra optional | |||||
Beam Angle | T203(65°*150°) / T212(75°*165°) / T304(75°*160°) / T402(80°*150°) / T502(150°*150°) | |||||
Mechanical Data | ||||||
IP Rating | IP65, according to standard EN 60529 | |||||
SCx | Front: 0.3465 m²; Front-side: 0.0535 m²; Side: 0.0622 m²; | Front: 0.3465 m²; Front-side: 0.0535 m²; Side: 0.0622 m²; | Front: 0.4143 m²; Front-side: 0.0535 m²; Side: 0.0669 m²; | Front: 0.4831 m²; Front-side: 0.0535 m²; Side: 0.0706 m²; | Front: 0.5537 m²; Front-side: 0.0535 m²; Side: 0.0743 m²; | Front: 0.6215 m²; Front-side: 0.0535 m²; Side: 0.0790 m²; |
Housing | Heavy-duty die-cast aluminum (EN AC-46100) | |||||
Surface Treatment | Anti-UV thermosetting polyester / 80 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments). | |||||
Painting | Black, custom color on request, C5-grade painting. | |||||
Mounting | Universal/Wall mount/Round pole/Square pole | |||||
Configuration Data | ||||||
Photovoltaic Panel | Bifacial monocrystalline solar panel | |||||
Solar Panel | 18V/30W | 18V/40W | 18V/50W | 18V/60W | 18V/70W | 18V/80W |
Li-ion Battery | 153.6WH | 230.4WH | 307.2WH | 384.0WH | 460.8WH | 537.6WH |
12.8V12AH | 12.8V18AH | 12.8V24AH | 12.8V30AH | 12.8V36AH | 12.8V42AH | |
Charing Time | 5.12Hrs | 5.76Hrs | 6.14Hrs | 6.40Hrs | 6.58Hrs | 6.72Hrs |
Battery Lifespan | >2000 times cycle | |||||
Run Time(@full power) | 15hrs / 10hrs | 11.5hrs / 9hrs | 10hrs / 8.5hrs | 9.5hrs / 8.5hrs | 9hrs | 9hrs |
Ambient Temperature | -10°C to 50°C (14°F to 122°F) | |||||
Storage Temperature | -20°C to 45°C (-4°F to 113°F) | |||||
Control System | PWM / MPPT / complementary solution, custom IOT and remote control on request | |||||
Maximum Autonomy | Operate 5~7 rainy days under intelligent model. | |||||
Others | ||||||
Lifespan | L90B10 - 100000 hrs, @Tq 25°C | |||||
Warranty | 3 years as standard (Warranty extension to 5 years on request) | |||||
Certification | FCC CE RoHS, the company is ISO 9001 and ISO 14001 certified,For other certificates please request | |||||
Product Size | 594*366*252mm / 23.38*14.40*9.92 inches | 754*366*252mm / 29.68*14.40*9.92 inches | 910*366*252mm / 35.82*14.40*9.92 inches | 1064*366*252mm / 41.89*14.40*9.92 inches | 1224*366*252mm / 49.72*14.40*9.92 inches | 1379*366*252mm / 54.29*14.40*9.92 inches |
Net Weight | 11.49kg / 25.33lbs | 12.86kg / 28.35lbs | 14.89kg / 32.83lbs | 16.5kg / 36.38lbs | 17.61kg / 38.82lbs | 19.66kg / 43.34lbs |
Carton Size | 860*440*210mm / 33.9*17.3*8.3 inches | 1020*440*210mm / 40.2*17.3*8.3 inches | 1175*440*210mm 46.3*17.3*8.3 inches | 1330*440*210mm / 52.4*17.3*8.3 inches | 1490*440*210mm / 58.7*17.3*8.3 inches | 1645*440*210mm 64.8*17.3*8.3 inches |
Gross Weight | 14.5kg / 31.97lbs | 15.86kg / 34.97lbs | 17.97kg / 39.62lbs | 19.6kg / 43.21lbs | 21.49kg / 47.38lbs | 22.44kg / 49.47lbs |
Recommend Installation Height | 3-6m | 5-7m | 5-8m | 6-9m | 6-10m | 7-12m |
Application Field | Road & street, residential area, garden, parks, parking lot, industrial and commercial parks, railway & station side, riverside & jogging track | |||||
Warranty | 3 years as standard (Warranty extension to 5 years on request) | |||||
Important Note! | The provided information is solely for reference; the official measurement report holds higher authority. |
Technical Specification
● Operating time: 15 hours full power, intelligent mode 5-7 days.
● Input Voltage: 12-24V constant voltage.
● Control Mode:Light Control + Motion Sensor/Time Control/PIR Built In.
● Working Mode: 30% of intensity at first 4 hrs, 100% bright when people or car pass by, then rest of time 30% of intensity, and 70% of intensity when people pass by.
● Housing: Die-Casting Aluminum, Anti-Corrosion.
● Life Hours: >100,000 hours.
● 3000K/4000K/5000K/5700K/6500K available. CRI: 70/80
Distribution Diagram
Electrical Data | ||||||
Model | AOK-10WsE | AOK-20WsE | AOK-30WsE | AOK-40WsE | AOK-50WsE | AOK-60WsE |
Power(W) | 10W/15W | 20W/25W | 30W/35W | 40W/45W | 50W | 60W |
Control Option | Photocell sensor, timing, dimming, intelligent power saving, microwave sensor. 4G, Zigbee, Smart Lighting Control optional. | |||||
Photometric Data | ||||||
LED Manufacturer | Seoul | |||||
LED Model | Seoul 5050 | |||||
Lens | Polycarbonate | |||||
Efficacy (lm/W, Std. Dev. ±5%)@CCT=5700K, CRI>70Ra | 200lm/W | 190lm/W | 196lm/W | 192lm/W | 192lm/W | 190lm/W |
Luminous Flux (lm, Std. Dev. ±5%)@CCT=5700K, CRI>70Ra | 2000lm | 3800lm | 5880lm | 7680lm | 9600lm | 11400lm |
ULOR | = 0%, @ Luminaire inclination 0° | |||||
CCT | 3000K, 4000K, 5000K, 5700K, 6500K | |||||
CRI | 70Ra, 80Ra, 90Ra optional | |||||
Beam Angle | T203(65°*150°) / T212(75°*165°) / T304(75°*160°) / T402(80°*150°) / T502(150°*150°) | |||||
Mechanical Data | ||||||
IP Rating | IP65, according to standard EN 60529 | |||||
SCx | Front: 0.3465 m²; Front-side: 0.0535 m²; Side: 0.0622 m²; | Front: 0.3465 m²; Front-side: 0.0535 m²; Side: 0.0622 m²; | Front: 0.4143 m²; Front-side: 0.0535 m²; Side: 0.0669 m²; | Front: 0.4831 m²; Front-side: 0.0535 m²; Side: 0.0706 m²; | Front: 0.5537 m²; Front-side: 0.0535 m²; Side: 0.0743 m²; | Front: 0.6215 m²; Front-side: 0.0535 m²; Side: 0.0790 m²; |
Housing | Heavy-duty die-cast aluminum (EN AC-46100) | |||||
Surface Treatment | Anti-UV thermosetting polyester / 80 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments). | |||||
Painting | Black, custom color on request, C5-grade painting. | |||||
Mounting | Universal/Wall mount/Round pole/Square pole | |||||
Configuration Data | ||||||
Photovoltaic Panel | Bifacial monocrystalline solar panel | |||||
Solar Panel | 18V/30W | 18V/40W | 18V/50W | 18V/60W | 18V/70W | 18V/80W |
Li-ion Battery | 153.6WH | 230.4WH | 307.2WH | 384.0WH | 460.8WH | 537.6WH |
12.8V12AH | 12.8V18AH | 12.8V24AH | 12.8V30AH | 12.8V36AH | 12.8V42AH | |
Charing Time | 5.12Hrs | 5.76Hrs | 6.14Hrs | 6.40Hrs | 6.58Hrs | 6.72Hrs |
Battery Lifespan | >2000 times cycle | |||||
Run Time(@full power) | 15hrs / 10hrs | 11.5hrs / 9hrs | 10hrs / 8.5hrs | 9.5hrs / 8.5hrs | 9hrs | 9hrs |
Ambient Temperature | -10°C to 50°C (14°F to 122°F) | |||||
Storage Temperature | -20°C to 45°C (-4°F to 113°F) | |||||
Control System | PWM / MPPT / complementary solution, custom IOT and remote control on request | |||||
Maximum Autonomy | Operate 5~7 rainy days under intelligent model. | |||||
Others | ||||||
Lifespan | L90B10 - 100000 hrs, @Tq 25°C | |||||
Warranty | 3 years as standard (Warranty extension to 5 years on request) | |||||
Certification | FCC CE RoHS, the company is ISO 9001 and ISO 14001 certified,For other certificates please request | |||||
Product Size | 594*366*252mm / 23.38*14.40*9.92 inches | 754*366*252mm / 29.68*14.40*9.92 inches | 910*366*252mm / 35.82*14.40*9.92 inches | 1064*366*252mm / 41.89*14.40*9.92 inches | 1224*366*252mm / 49.72*14.40*9.92 inches | 1379*366*252mm / 54.29*14.40*9.92 inches |
Net Weight | 11.49kg / 25.33lbs | 12.86kg / 28.35lbs | 14.89kg / 32.83lbs | 16.5kg / 36.38lbs | 17.61kg / 38.82lbs | 19.66kg / 43.34lbs |
Carton Size | 860*440*210mm / 33.9*17.3*8.3 inches | 1020*440*210mm / 40.2*17.3*8.3 inches | 1175*440*210mm 46.3*17.3*8.3 inches | 1330*440*210mm / 52.4*17.3*8.3 inches | 1490*440*210mm / 58.7*17.3*8.3 inches | 1645*440*210mm 64.8*17.3*8.3 inches |
Gross Weight | 14.5kg / 31.97lbs | 15.86kg / 34.97lbs | 17.97kg / 39.62lbs | 19.6kg / 43.21lbs | 21.49kg / 47.38lbs | 22.44kg / 49.47lbs |
Recommend Installation Height | 3-6m | 5-7m | 5-8m | 6-9m | 6-10m | 7-12m |
Application Field | Road & street, residential area, garden, parks, parking lot, industrial and commercial parks, railway & station side, riverside & jogging track | |||||
Warranty | 3 years as standard (Warranty extension to 5 years on request) | |||||
Important Note! | The provided information is solely for reference; the official measurement report holds higher authority. |
【File Download】
【File Download】
【File Download】
SE Series solar street light PSE-LVD.zip
SE-LVD EMC ROHS Standard upgrade.zip
SE Series Shipping Report、MSDS、UN38.3_01.zip
SE Series Shipping Report、MSDS、UN38.3_02.zip
Solar Light AOK-60WsE-DC-AP-L5-5070-T3-P PSE.zip
SE series full wattage C-tick report (this project has no certificate).pdf
【File Download】
SE Series solar street light PSE-LVD.zip
SE-LVD EMC ROHS Standard upgrade.zip
SE Series Shipping Report、MSDS、UN38.3_01.zip
SE Series Shipping Report、MSDS、UN38.3_02.zip
Solar Light AOK-60WsE-DC-AP-L5-5070-T3-P PSE.zip
SE series full wattage C-tick report (this project has no certificate).pdf
