75W Garden Lighting-IP

✔ EFFICACY: up to 135lm/W
✔ LED MODEL: 3030/5050
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP65/IK09
✔ DISTRIBUTION: T5(83*142)(153*146)
✔ HOUSING: Heavy-duty die-cast aluminum (EN AC-46100)
✔ WARRANTY: 5 years in standard, 10 years optional
Availability:
Quantity:
  • AOK-75WiP

  • AOK

  • 94054090

PRODUCT OVERVIEW


The IP(S) series LED Garden Light is known for its high quality, professional light, and top performance, available from 25W to 300W. Designed for courtyard lighting and landscape optimization, this light features precision-engineered individual lenses made of optical-grade Mitsubishi polycarbonate for maximum light intensity. The tempered glass cover protects the optics, while the full cutoff classification ensures no up-light pollution. Upgrade your garden lighting system with the best 75W LED garden lighting for the pathway today.


CONSTRUCTION


•Heavy-duty die-cast aluminum housing.

•Clean, smooth design blending harmoniously into outdoor environments.

•UV stabilized polyester powder paint finish for durability and corrosion resistance.


OPTICAL/ELECTRIC


•Precision engineered individual lenses made of optical grade Mitsubishi polycarbonate for maximum light intensity, with Tempered Glass Cover to protect the optics.

•Micro-lens systems produce IESNA Type V distributions.

•Delivers improved visual comfort by lower glare and providing a wider smoother and more uniform light output.

•Optical systems maintain an IP66 rating.

•Available in 2700K, 3000K, 4000K, 5000K, 5700K, 6500K CCT.

•Cutoff classification: Cutoff, no up-light pollution.

•Minimum CRI of 70, 80, and 90 optional.

•1-10V/ PMW/ timer dimming, 3 timer modes, Dim-to-Off with standby power <= 0.5W.

•Constant current Inventronics driver (For North America) or Meanwell driver (For Europe), 100-277Vac, 50-60Hz.

•High efficiency driver: up to 93.5%, minimum efficiency 87.5%.

•Operating temperature rating of -40°F to 122°F (-40°C to 50°C).

•Class I or Class II optional.


MOUNTING/ACCESSORIES


Post top I&II, side entry and cable suspending installation available. Photocell optional.


RECOMMENDED USE


• Street & sidewalk

• Park

• Garden


WARRANTY


5-year standard warranty, 10-year warranty optional. Please consult with AOK sales for detailed agreement.

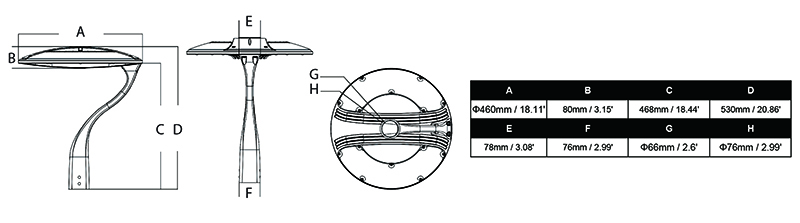

DIMENSION


IP-size


CERTIFICATION/LISTING


ENEC/CB/CE/ROSH/UL Listed



Electrical Data
ModelAOK-25WiPAOK-50WiPAOK-75WiPAOK-120WiPAOK-150WiPAOK-240WiPAOK-300WiP
Power25W50W75W120W150W240W300W
Input Voltage100-277VAC, 50/60Hz
THD<8% (Classic);  <10% (220VAC@full load);  <20% (100-277VAC@full load)
PF> 0,98
DriverSosen / Meanwell / Inventronics / Philips. Class 1/ Class 2, EU
Ambient Temperature-40°C to 50°C-40°C to 45°C
Storage Temperature-40°C to 80°C (-40 °F to 176 °F)
Control OptionDALI, 1-10V/ PWM /  timer dimming, Nema, Presence detection sensor. Dim-to-Off with standby power <= 0.5W.
Surge Protection10kV / 20kV optional
Photometric Data
Efficacy (lm/W, Std. Dev. ±5%)@CCT=4000K, CRI>70Ra130lm/W125lm/W120lm/W115lm/W110lm/W135lm/W130lm/W
Luminous Flux (lm, Std. Dev. ±5%)@CCT=4000K,CRI>70Ra3250lm6250lm9000lm13800lm16500lm32400lm39000lm
ULOR= 0%, @ Luminaire inclination 0°
CCT2700K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI70Ra, 80Ra, 90Ra  optional
Beam AngleType IV ( 83° x 142°) / Type V ( 143° x 146°)
LED ManufacturerLUMILEDS/ Seoul / Others
LED Model3030303030303030303030303030
Working Current of Single LED30mA60mA80mA100mA100mA120mA120mA
LensPolycarbonate (Better impact resistance than glass)
Mechanical Data
IP/IKIP66 / IK09,  according to standard EN 60529 and EN 62262
Vibration Resistance3G, conform to standard IEC 68-2-6.
SCx0.026m²0.197m²
MaterialsHigh strength die-cast aluminum housing (EN AC-46100)
ProtectionPolycarbonate, with tempered glass cover (5 mm thick)
PaintingRAL 9006 Silver gray / RAL 9005 Black, Customized color
Surface TreatmentAnti-UV thermosetting polyester / 80~120 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments).
CablePre-wired with a 30 cm cable (Other lengths on request)
MountingCable suspended, Side entry, Post Top I, Post Top II
Dimension (Without bracket)Ø 460mm*80mm / Ø18.1*3.1 inchesØ 520*91mm / Ø20.5*3.6 inches
Others
LED  LifespanL90 >100 000h, The luminous flux of the LED is reduced by 10% (L90) of its initial value at 100000 hours
Warranty5 years in standard, 10 years optional
CertificationIECEE CB, CE, RoHS, ENEC ( The company is ISO 9001 and ISO 14001 certified.)
Net Weight7.2 kg / 15.87 lbs7.2 kg / 15.87 lbs7.2 kg / 15.87 lbs7.7  kg / 16.98 lbs7.7  kg / 16.98 lbs9.5 kg / 20.94 lbs9.5 kg / 20.94 lbs
Gross Weight9.3 kg / 20.50 lbs9.3 kg / 20.50 lbs9.3 kg / 20.50 lbs9.8 kg / 21.61 lbs9.8 kg / 21.61 lbs11.5 kg / 25.35 lbs11.5 kg / 25.35 lbs
Carton Size (Post Top I)590*590*135mm /
23.2*23.2*5.3 inches
590*590*135mm /
23.2*23.2*5.3 inches
590*590*135mm /
23.2*23.2*5.3 inches
590*590*135mm /
23.2*23.2*5.3 inches
590*590*135mm /
23.2*23.2*5.3 inches
660*590*140mm /
26.0*23.2*5.5 inches
660*590*140mm /
26.0*23.2*5.5 inches
Carton Size (Post Top II)590*590*145mm /
23.2*23.2*5.7 inches
590*590*145mm /
23.2*23.2*5.7 inches
590*590*145mm /
23.2*23.2*5.7 inches
590*590*145mm /
23.2*23.2*5.7 inches
590*590*145mm /
23.2*23.2*5.7 inches
660*590*150mm /
26.0*23.2*5.9 inches
660*590*150mm /
26.0*23.2*5.9 inches
Recommended Installation Height3~6 m3~6 m3~6 m4~9 m4~9 m5~12 m5~12 m
Application FieldUrban road & streets, residential areas, parks & perimeter, tramway path, riverside & jogging track
Important Note!The provided information is solely for reference; the official measurement report holds higher authority.



【File Download】

75W_IP.zip
