AOK-SAF80
AOK
##

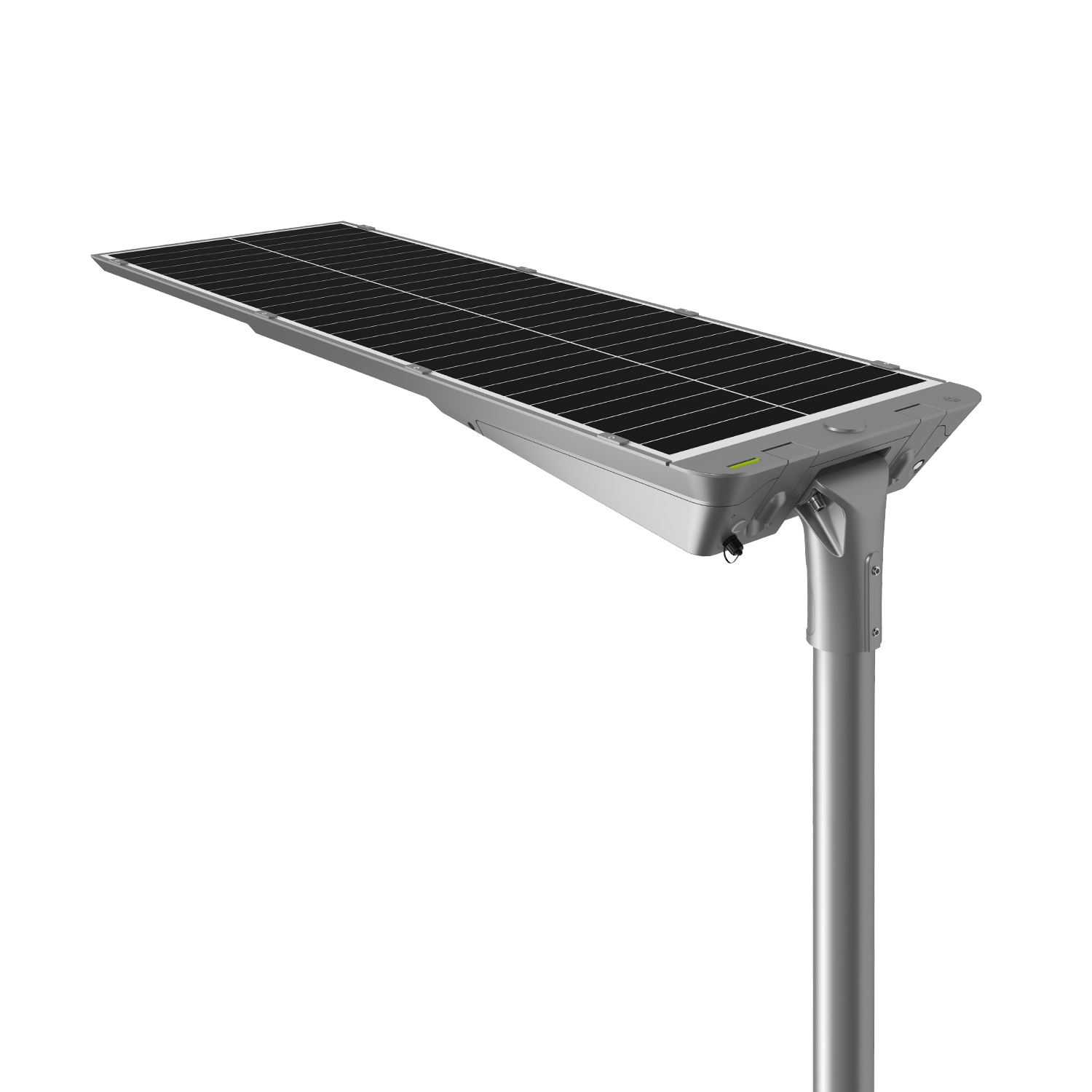

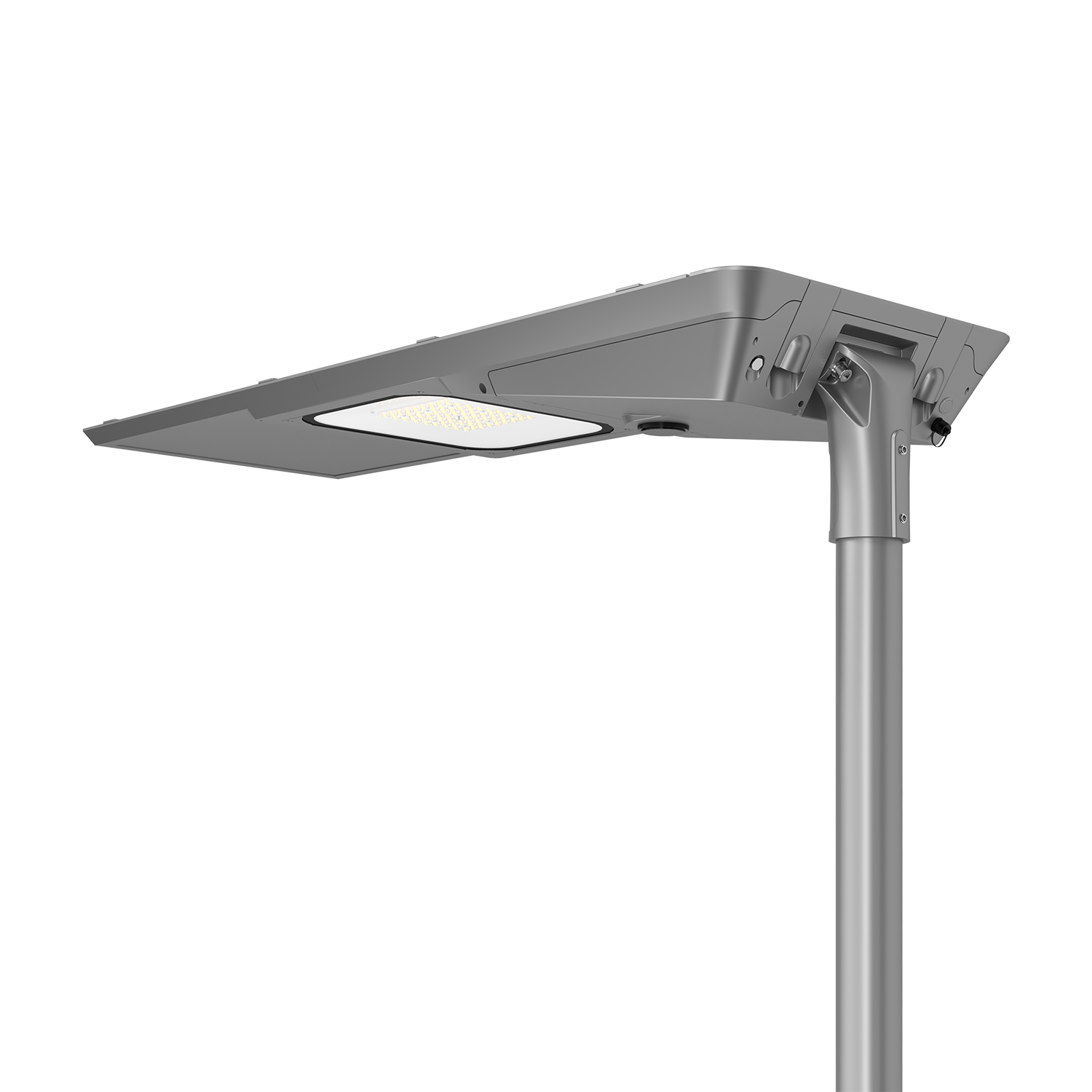

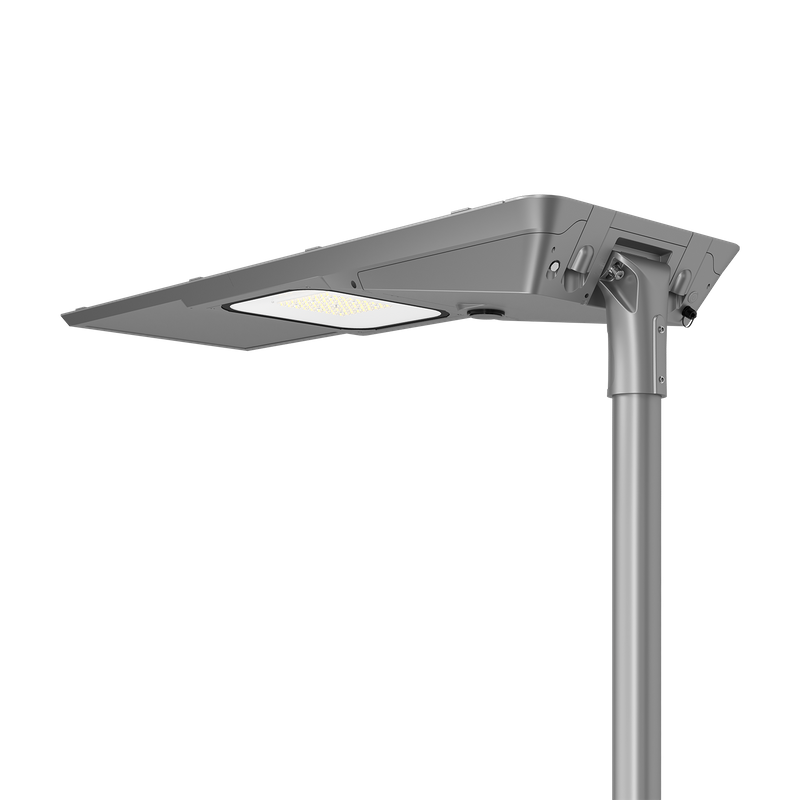

Top 80W All-in-One LED Solar Powered Street Light, Check Out the AOK SAF Series for Street, Highway, Roadway, Courtyard, and Pathway Green Energy Lighting. The AOK-SAF series 80W LED solar street light is an efficient, eco-friendly, and cost-effective outdoor lighting solution ideal for city streets, rural roads, parking lots, parks, and gardens. Utilizing advanced solar technology, it converts sunlight into electricity for automatic lighting without a grid connection or through a hybrid grid-powered solution, thereby saving on electricity costs and reducing carbon emissions.
Power: 80W
Solar Panel Type: Monocrystalline silicon
Battery Type: Lithium battery
LED Light Source: High-brightness LED up to 200lm/W
Color Temperature: 3000K-6500K (optional)
Protection Level: IP66
Lighting Time @full power: 5-14 hours on a full charge
Charging Time: 4-13 hours (under sufficient sunlight)
Operating Temperature: -10°C to 50°C (14°F to 122°F)
Storage Temperature: -20°C to 45°C (-4°F to 113°F)
√ High-Efficiency Solar Panel: Utilizes high-efficiency polycrystalline silicon solar panels with a conversion efficiency of over 20%, ensuring effective charging even on cloudy days.
√ Intelligent Control System: Built-in intelligent controller supports both light and time control modes, automatically adjusting brightness based on ambient light intensity and turning the light on or off according to preset periods.
√ Long-Life Lithium Battery: Equipped with a high-capacity lithium battery with over 2000 charge and discharge cycles, offering a long lifespan and stable performance, ensuring continuous lighting throughout the night.
√ High-Brightness LED Light Source: Features high-brightness LED chips with high luminous efficiency, wide lighting range, and selectable color temperature to meet various lighting needs.
√ Waterproof and Dustproof Design: The lamp housing is designed with IP65-level waterproof and dustproof protection, ensuring stable operation in all harsh weather conditions.
√ Easy Installation: No complicated wiring is required; simply fix the lamp, making installation quick and easy, saving labor and installation costs.
√ Eco-Friendly and Energy-Saving: Fully solar-powered, requiring no grid electricity, zero electricity bills, and zero emissions, truly achieving green and sustainable lighting.
※ City Streets: Enhances nighttime driving safety and reduces municipal electricity expenses.
※ Rural Roads: Improves rural lighting conditions and promotes rural development.
※ Parking Lots: Provides a safe parking environment for vehicles.
※ Parks and Gardens: Beautifies the environment and enhances nighttime landscape effects.
Parameter Table
| Specification | |
| Model | AOK-80WSAF |
| Power | 80W |
| Control Option | Photocell ,Dimming,sensor, Zhaga Zigbee iot/4G iot |
| Grid Hybrid Power Solution(optional) Driver | Inventronics/MOSO |
| Work Mode | 2H-Detected 100%, None 30% ;3H-Detected 70%, None 30% ;3H-Detected 50%, None 20%; 4H-Detected 30%, None 10% |
| Photometric Data | |
| LED Manufacturer | A 5050 |
| Lens | Standard: PC+glass; Optionl: PC |
| Efficacy(lm/w) | 195lm/W |
| Luminous Flux(lm) | 15600lm |
| ULOR | = 0%, @ Luminaire inclination 0° |
| CCT | 3000K, 4000K, 5000K, 5700K, 6500K |
| CRI | 70Ra |
| Beam Angle | Standard (PC+ Glass Solution): T252 (85*160º)/T312 (85*155º)/T502 (150*150º) Option 1 (PC Lens Solution ): T302 (80*155°)/T402 (90*150°)/T502 (160°) Option 2 (PC Lens Solution-Adjustable Module ): T203(65°*150°) / T212(75°*165°) / T304(75°*160°) / T402(80°*150°) / T502(150°*150°) |
| Mechanical Data | |
| IP Rating | IP66 |
| IK Rating | IK08/IK09 |
| Housing | Die-casting aluminum ADC12 |
| Painting | Gray, Silver,Custom request |
| Bracket | Adjustable from -5° to +15°, 5 ° per, Side and horizontal mounting up to 90° |
| Mounting | Post top, side entry,Suitable for lamp post diameter Ø 60mm , depth 120mm |
| Configuration Data | |
| Solar Panel Type | single side monocrystalline solar panel |
| Solar Panel Voltage(W) | 18V 110W |
| LiFePO4 Battery Capacity(AH) | 12.8V 75AH |
| LiFePO4 Battery Capacity(WH) | 960Wh |
| Charing Time | 9.2Hrs |
| Run Time(@full power) | 10.8hrs |
| Battery Lifespan | >2000 times cycle |
| Ambient Temperature | -10°C to 50°C (14°F to 122°F) , -20°C to 60°C (-4°F to 140°F) optional |
| Storage Temperature | -20°C to 45°C (-4°F to 113°F) |
| Control System | MPPT/PWM/Hybrid optional, custom IOT or remote control on request |
| Maximum Autonomy | 7-9 days |
| Others | |
| Lifespan | L90B10 - 100000 hrs, @Tq 25°C |
| Warranty | 3 years as standard (Warranty extension to 5 years on request) |
| Certification | CE/FCC/RoHs,For other certificates please request |

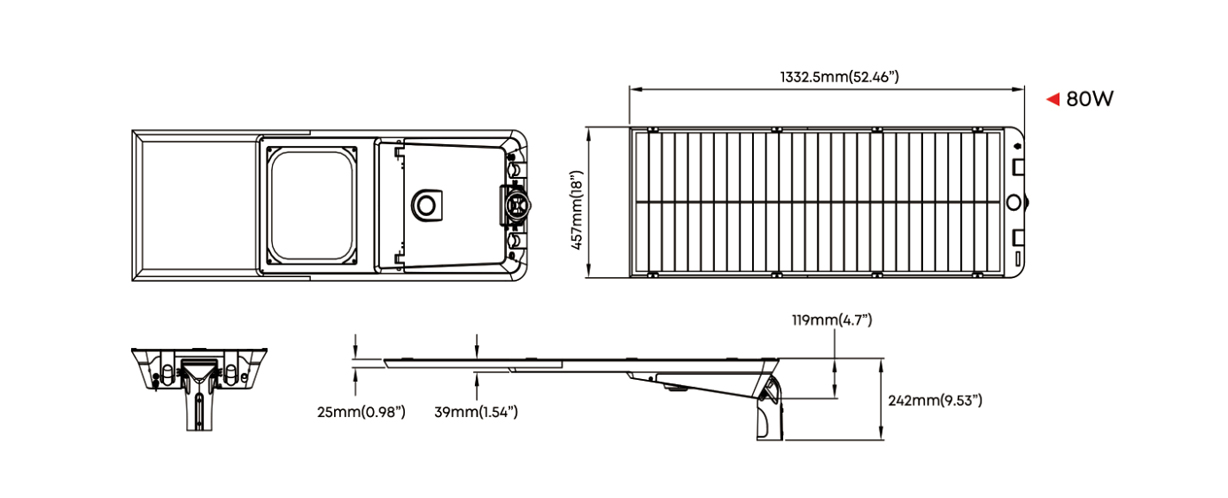

| Product Size | 1332.5*457*119mm (52.46*17.99*4.69") |
| Net Weight | 23kg(50.71 lbs) |
| Carton Size | 1415.5*540*205mm (55.73*21.26*8.07") |
| Gross Weight | 25.5kg(56.22 lbs) |
| Recommend Installation Height | 6-8m |
| Accessories(standard) | Microwave Sensor,Level Bubble,Charging Port,Switch,Breather Vent,Safety Rope |
| Accessories(optional) | PIR Sensor,Iot-4G control,Hybrid Grid Power ,Bird Spike |
| Application Field | Road & street, residential area, garden, parks, parking lot, industrial and commercial parks, railway & station side, riverside & jogging track |
| Storage Instruction | For long-term storage, it is advisable to first fully charge the battery, then discharge it for 2 to 3 hours. This should be done every 3 months to prevent battery damage. |
| Important Note! | The provided information is solely for reference; the official measurement report holds higher authority. |
Illuminance Diagram
